ILS 32W

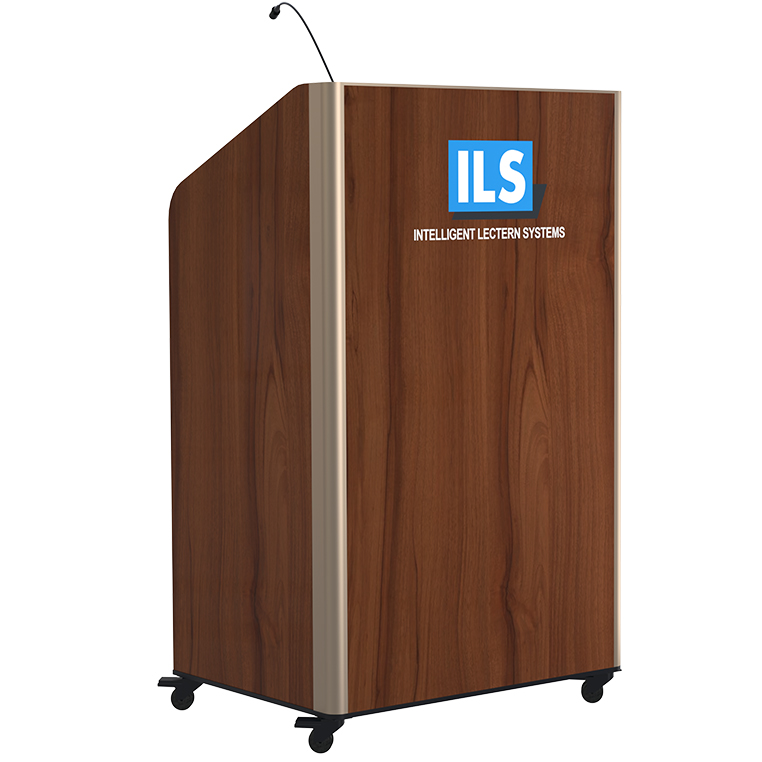

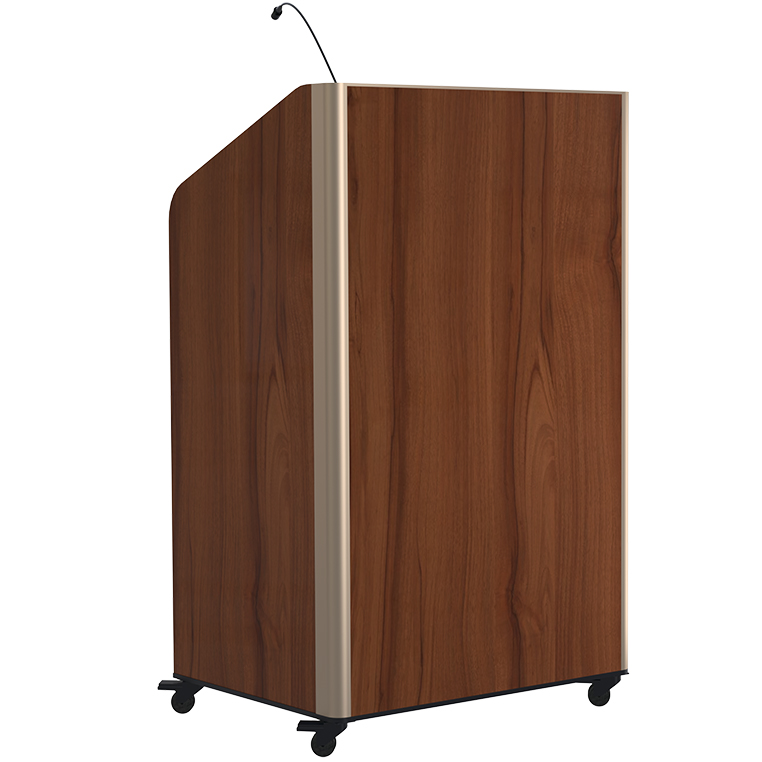

ILS presents its newest member of the SpeakersCorner family of lecterns with the 32” / 80 cm wide and 128 cm tall lectern for general use and designed it to fit in more traditional wood paneled environments.

By developing a special corner aluminium profile the construction of the lectern (podium) is greatly simplified yet very solid. As ILS has its reputation in building the highest quality aluminium lecterns machined from thick blocks/profiles and sheets, we had to apply our strengths to this design as well. The user will find a practical all aluminium console which can be fitted on different heights inside the wood structure. Several different layouts are available.

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Cabinet: 810mm
Top surface (where you can place the laptop or notes): 753mm
Open shelf: 752 mm
Keyboard shelf: 718
Height User side: 1027 mm with casters
Audience Side: 1287 mm with casters
(casters height: 72 mm)
Open shelf: 152mm
Keyboard shelf: 40 mm
Depth External: 600 mm
Internal: rack dimensions
Top surface (where you can place the laptop or notes): 290 mm
Open shelf: 450 mm
Keyboard shelf: 350 mm
Integration

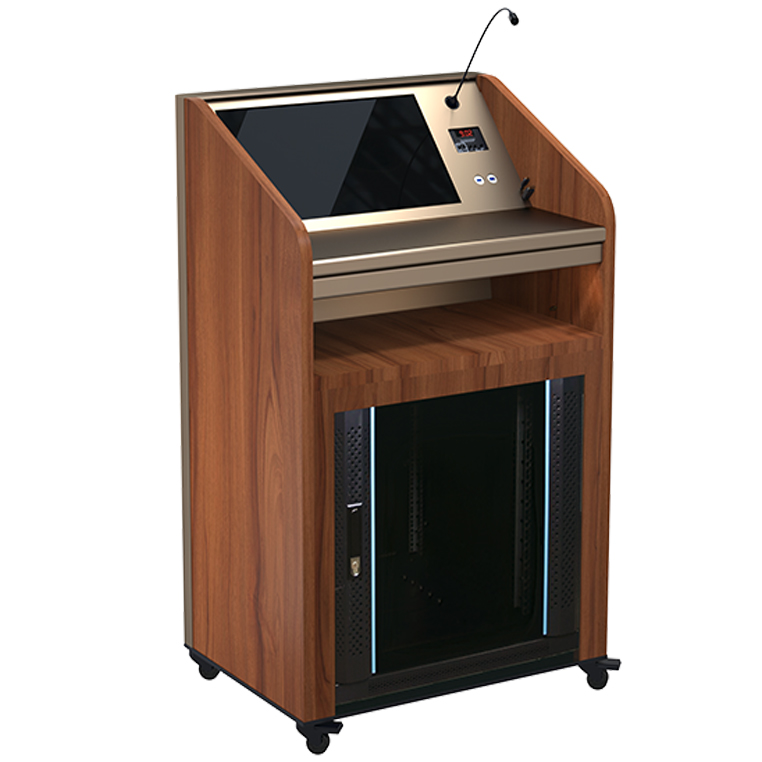

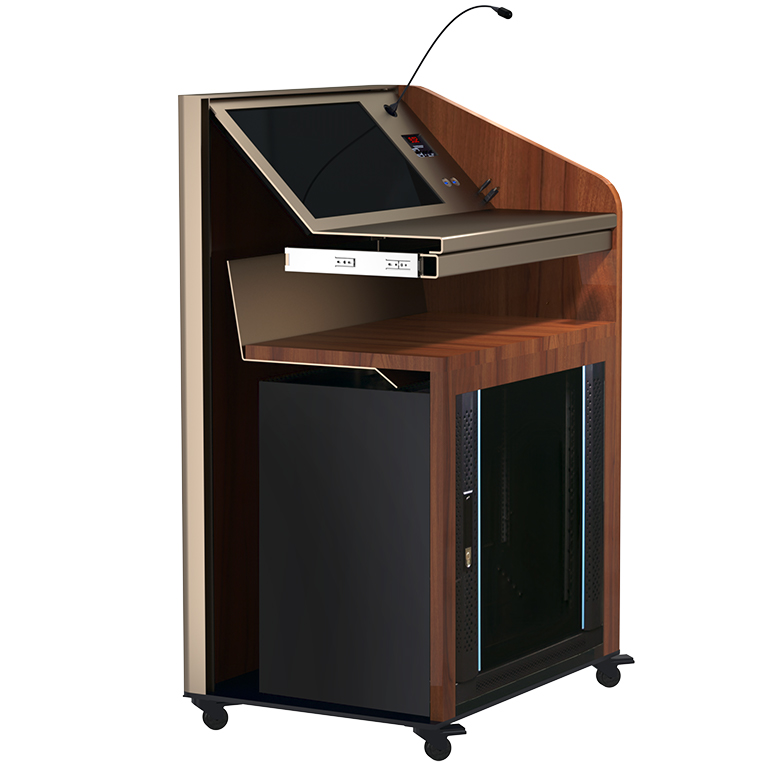

Optional configurations A 22” pen and touch interactive monitor installed on a 12° slope from WACOM or QOMO, with a small console above holding the timer and connectivity

A smaller 15.6” 4K touch monitor plus an Extron or Crestron control system next to it

A 32” touch monitor with all controls embedded (ILS Synergy IM technology)

The server rack may receive pre-installed shelves

The casters may be hidden behind a skirt around front and sides, as this brings the wheels further inside, the lectern should be in a stable place
Features keyboard drawer with palm rest and space for a mouse

Alzatex mounted timer/clock

Microphone has a shock-mount (Monacor)

Several matrix switching options 5x3 [email protected] and 4x4 [email protected], wireless & multi-viewer

Space for documents etc…

Actively ventilated with a quiet fan and a convection path for cooling is designed in

Your Logo – reverse printed on acrylic plate

4 x Lockable smart castors
