ILS Navigator AC

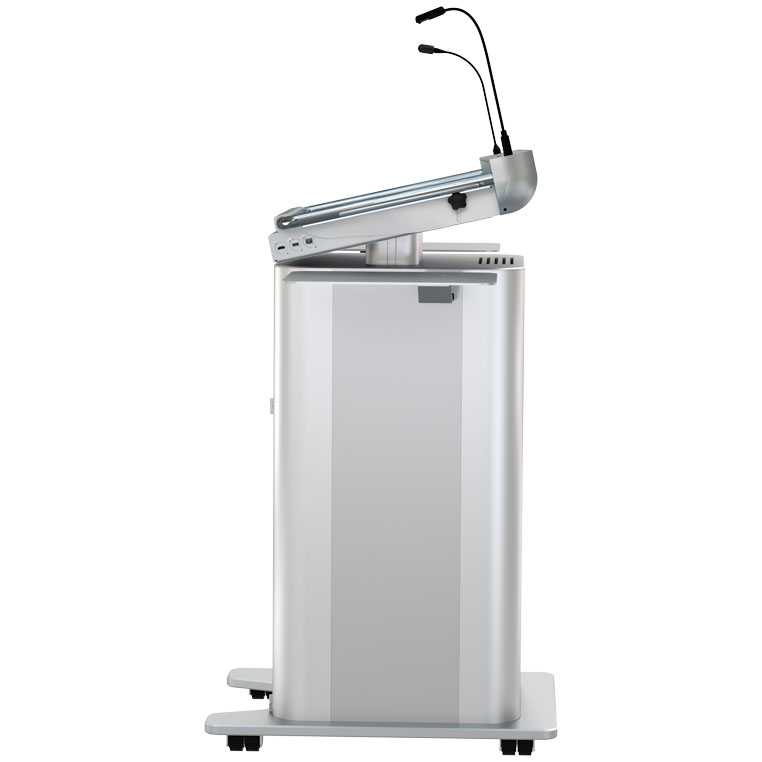

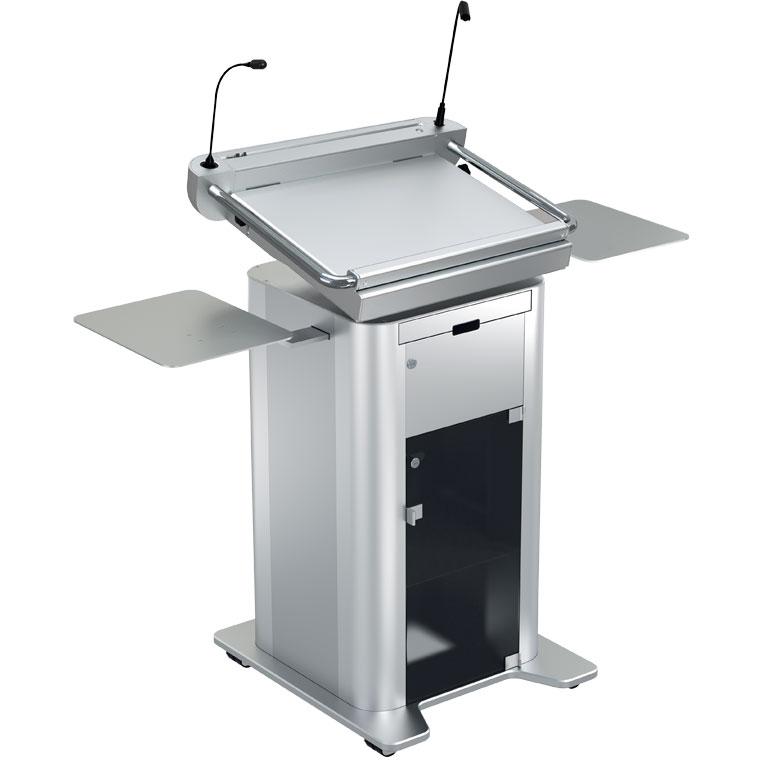

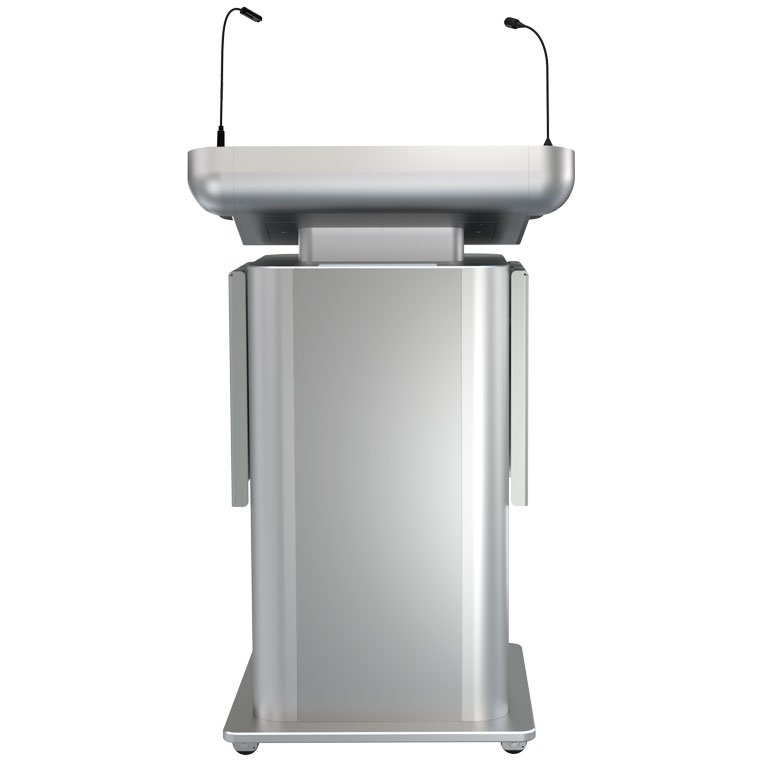

ILS Navigator AC delivers ILS quality with a smart design and cost-efficient solution. The solid top of the lectern is made of an anodized or coated aluminum. It is placed on a compact narrow cabinet (Half Rack Cabinet). The working surface of the Navigator series has a tilting range of 12 - 22°.

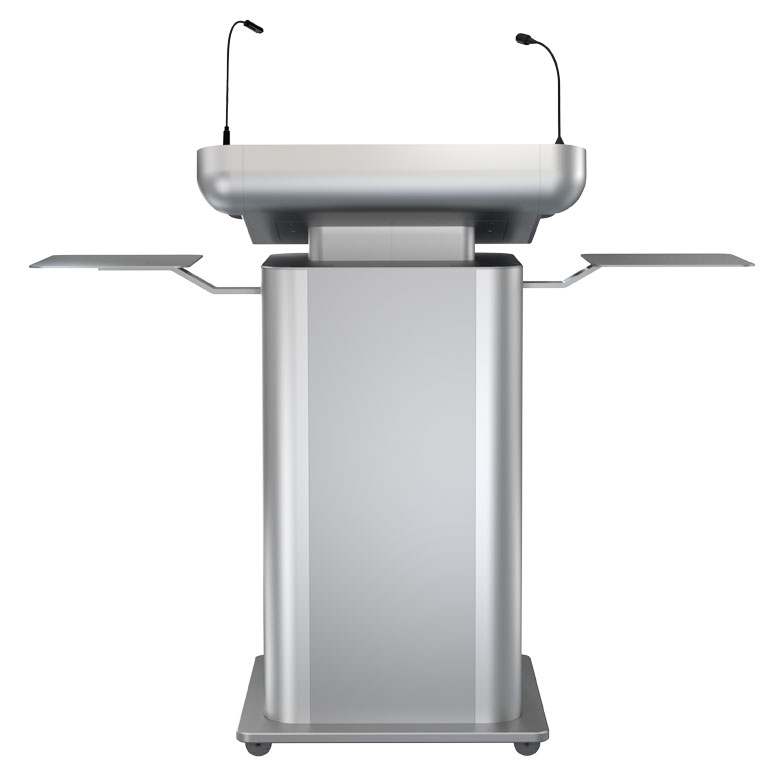

This solution also provides two fixed horizontal side tables (can be upgraded to the flip or sliding tables). This makes it possible to use handwritten notes, a laptop, or place a document camera on it. With a convenient connections panel you can plug your laptop into the HDMI socket to transmit the presentation to the big screen.

There is also a holder with built-in charging cables for tablets and smartphones. An XLR3 shock-mount suits most gooseneck microphones (optional 2 sockets) and a reading light with switch is included. The cabinet has a keyboard drawer and two lockable compartments with shelves to house a PC and other devices. The top compartment has a drop-down cover and a power strip to feed any laptop as well as hiding place for laptop power supplies. The larger compartment has a glass door and 2 shelves.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Top: 72cm x 53,5cm
Side Plate: 30cm x 37cm
Top + Side Plate: 136,5cm
Cabinet:
External: width: 48,5cm height: 85cm depth: 47cm
Internal: width: 30,5cm height: 61,5cm depth: 46cm
Tilt adjustment: 12° - 20°
Height User side: 101cm
Audience Side: 114cm
Weight 75kg
Integration
Display & PC Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen
PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories Audio: 1 x Microphone: AKG CGN 99
Light: 1 x LITTLITE LED XLR-4 lamp
Features Budget model with monitor tilt for extra 10° range
Luxury anodised aluminum surface for laptop and documents
Half Rack Cabinet
1 x Light Button
2 x Side Tables
1 x Keyboard drawer
2 x Lockable compartments (1 x Metal door; 1 x Glass door;)
4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard 1 x 3-Pin XLR Shock Mount for microphone
1 x regular mount 4-Pin XLR socket for the reading light
(or 1 x extra shock mount 3-Pin XLR pin socket for microphone)

Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity ILS 401 (4 x 1) Switcher or 3 x sockets (type on request)
1 x AC Power socket
Bottom cabling External display connection 1 x HDMI and/or 1 x HDbaseT
Microphone output: XLR cable per microphone
1 x 3,5mm Audio
1 x AIO PC LAN
1 x Switcher Control
1 x AC Power
