ILS Navigator g11
Improve your presentation delivery. Present with ease and confidence.
Datasheets

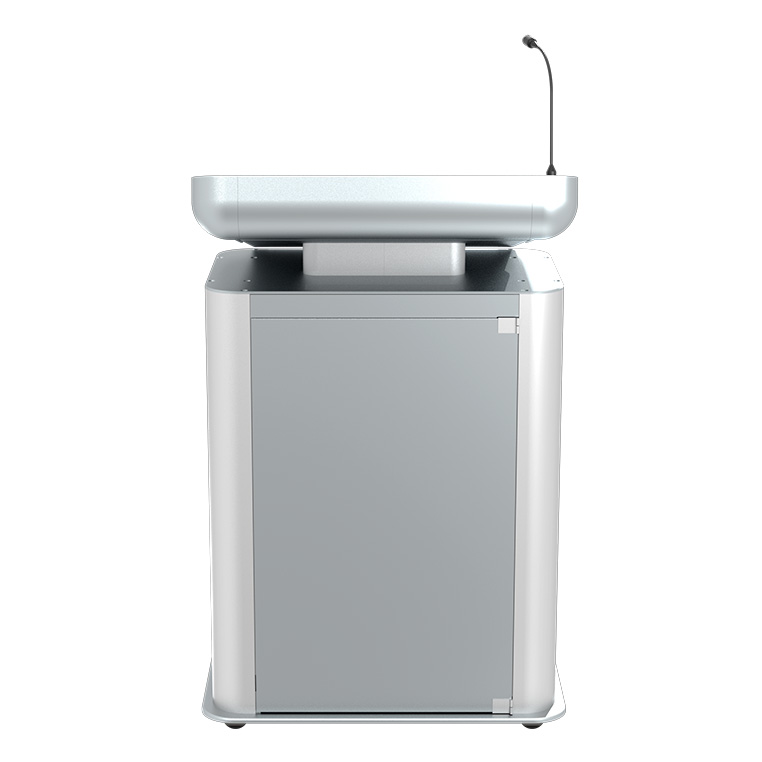

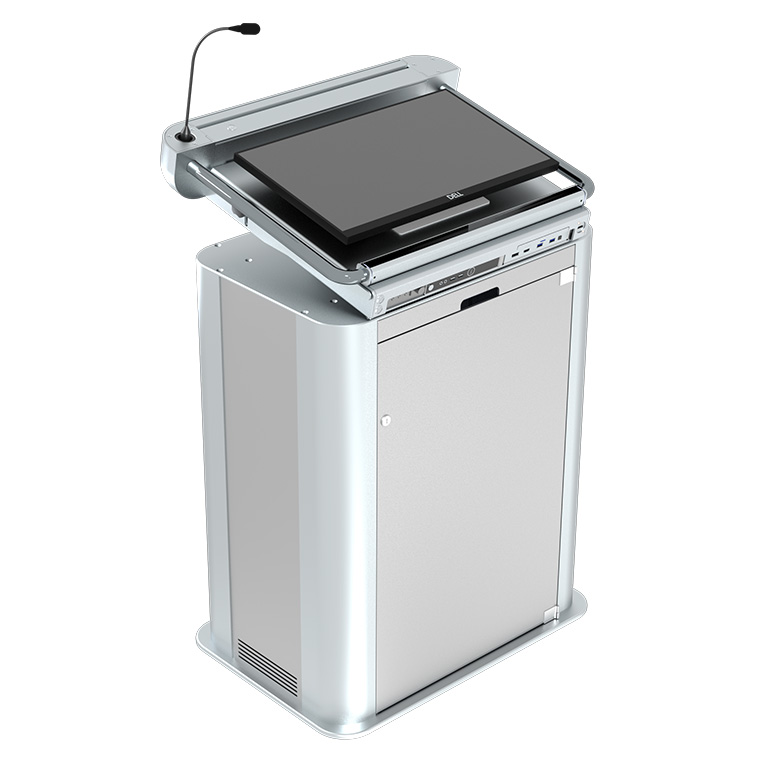

ILS G11 is a compact, sleek 14U rack cabinet interactive lectern platform with adequate choice of monitors (20-24”) and space for multiple PC’s, switching and audio gear.
System is build almost entirely from durable aluminium that can easily be upgraded and last for decades. This lectern is designed for classrooms and conference rooms. The broad application of this novel lectern is enhanced in the fact that the general purpose VESA mount is tilt adjustable to suit both multi-touch and pen-interactive monitors.
The lectern has 4 double wheel rollers that move side-ways for maximum stability and movement in the practical direction.
In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Cabinet Dimensions |
External: width: 68cm height: 85cm depth: 45cm Internal: width: 51cm height: 80cm depth: 43cm Tilt adjustment: 12° - 20° |
| Height | User side: 95cm Audience Side: 108cm |
| Weight | 80kg |
| Integration | |
| Display & PC | Monitor: Dell P2424HT touch screen 24 inch Monitor area: 61 x 41cm PC: On request |
| Accessories | Audio: 1 or 2 shock mount microphones XLR sockets Switcher: On request |
| Features | Essential model with monitor with tilt mechanism for extra 10° range VESA 100x100 mount to hold a monitor up to 27” PC installation is inside the cabinet 14U Rack Cabinet Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) 1 x Keyboard drawer 2 x Lockable compartments (2 x Metal doors;) 4 x Lockable smart castors or sideway rollers |
| Connectivity | |
| Side connectivity |
Panel with HDMI, LAN, USB or on request |
| Bottom cabling | Path-through opening for the cables in the bottom plate of the cabinet |
