ILS Navigator QT-FD
Improve your presentation delivery. Present with ease and confidence.
Datasheets
Order Form
ILS prides itself to build the highest quality lecterns around from thick aluminum profiles, blocks and plates, machined to a perfect fit and style. The lecterns are virtually free of maintenance for decades. In ILS products it is possible to remove a damaged part and renew it, or to make new fittings for future upgrades without affecting the rest of the installed system.
ILS Navigator QT-FD delivers ILS quality with a smart design and costefficient solution. The solid top of the lectern is placed on a motorized narrow pillar with a height adjustment range up to 40cm (15’’ +). Two buttons will help you to control it. In the lowest position a seated person can freely use the system.

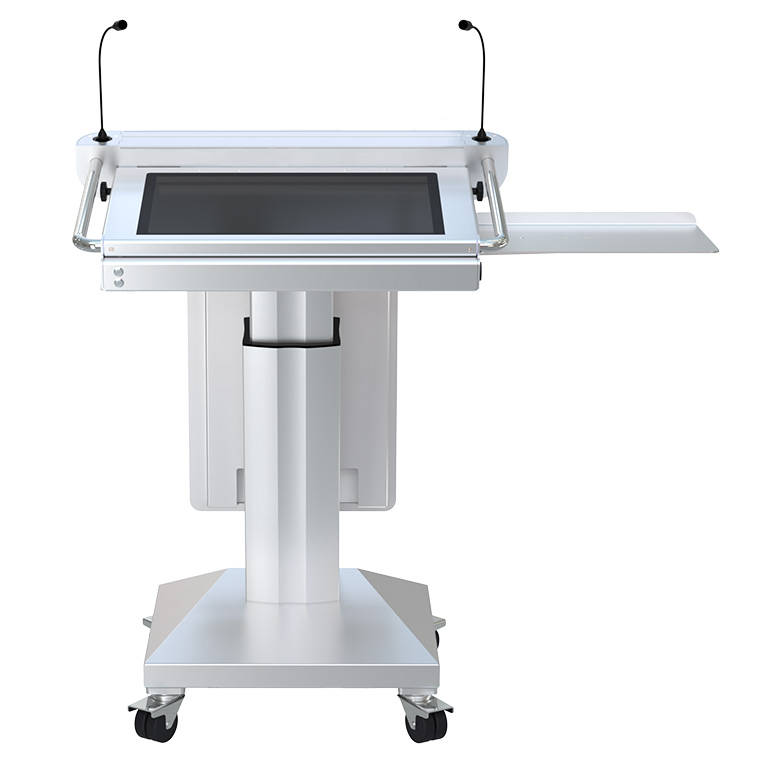

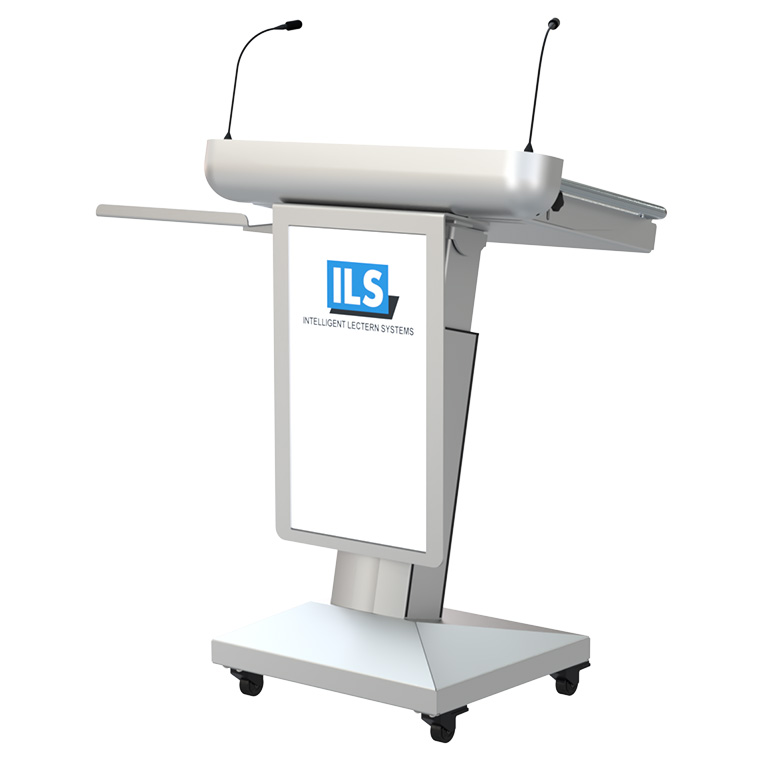

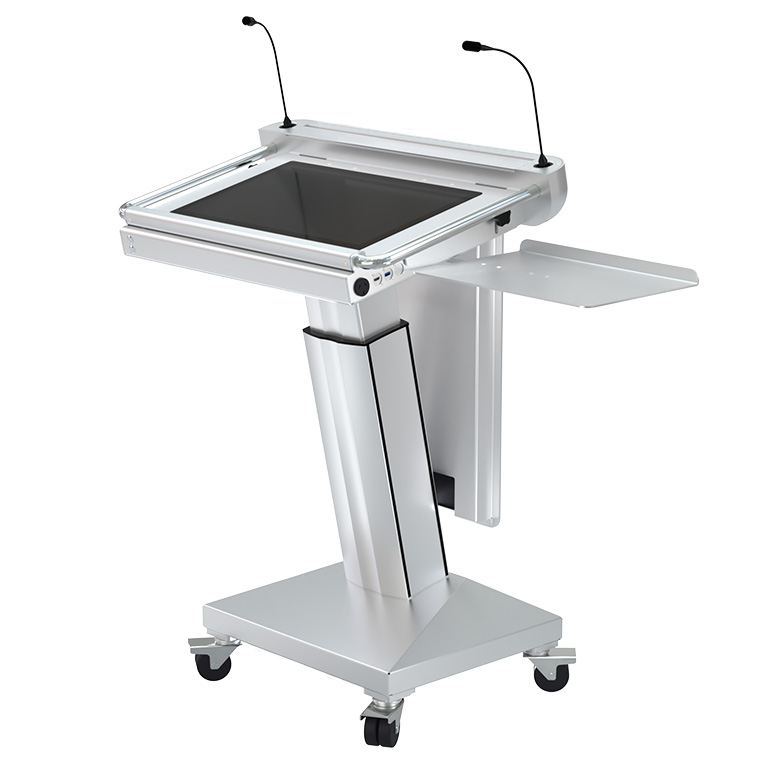

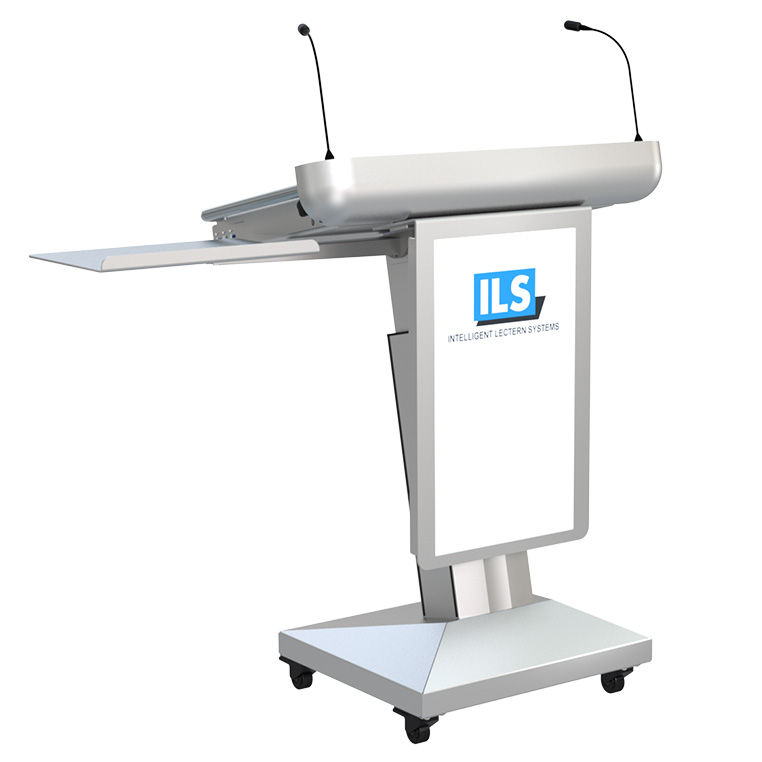

At the top, the ILS Navigator QT-FD offers a 24” touch monitor with an integrated PC and the front display 27” placed at the front of the lectern (the audience side) is the perfect solution to display multiple logos at events and conferences. This solution also provides one fixed horizontal side table which makes possible the use of hadwritten notes, a laptop or place a document camera on it. Casing and pedestal are all made of thick machined aluminium profiles, blocks and plates to last a lifetime and beyond.
Of course, the system comes with laptop connectivity for which there are 4 user definable Neutrik Style sockets available, it comes with charging features for any tablet of smart phone to use e.g. a timer app; one or two microphone shockmounts, a reading light and an optional mute button feature. For mobility, the system comes on lockable casters, default 50mmØ for hard floors, or 75mmØ for thick carpets to facilitate moving the lectern around.
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 85,5cm x 53,5cm Side plate: 45cm x 29,5cm |
| Height | User side min: 83,5cm, max: 123cm Audience side min: 96,5cm, max: 136cm |
| Weight | 75kg |
| Integration | |
| Display & PC | Monitor: 24” 10 points capacitive touchscreen (FHD, UHD options) PC: MFF PC: Dell OptiPlex, HP Mini, Lenovo Tiny Front Display: 27” Iiyama Prolite Full HD screen |
| Accessories | Audio: 1 x Microphone AKG CGN 99 (for reference) Light: 1 x LITTLITE LED BNC lamp (for reference) |
| Features | Height adjustment: Motorised Pillar 40cm range height Buttons: 2 x Height control (+ Optional: Light and/or Mic mute) Micro PC installation inside working surface Ultra Wide Phone/Tablet holder 1 x Fixed side table (right) 4 x lockable smart castors (default: 50mmØ, enlarged: 75mmØ) |
| Connectivity | |
| Top dashboard |
Microphone: up to 2 × 3-pin XLR shock-mounts Work light: 1 × BNC lamp socket, 12 V (optional) USB data: 2 × USB 3.0 Type-A sockets Phone/tablets charging cables: 1 × USB-C, 1 × Lightning |
| Side connectivity |
Laptop I/O (configurable): 3 × D-size Neutrik cutouts (fitted as specified) Laptop power: 1 × AC socket outlet |
| Bottom cabling |
AC power input When configured with integrated PC: 1 × HDMI second desktop output for duplicate / extendent view 1 × RJ45/CAT6 LAN Pass-through cables: up to 2 × XLRs and Laptop I/O per configuration |
