ILS Navigator SC
Improve your presentation delivery. Present with ease and confidence.
Datasheets
Order Form

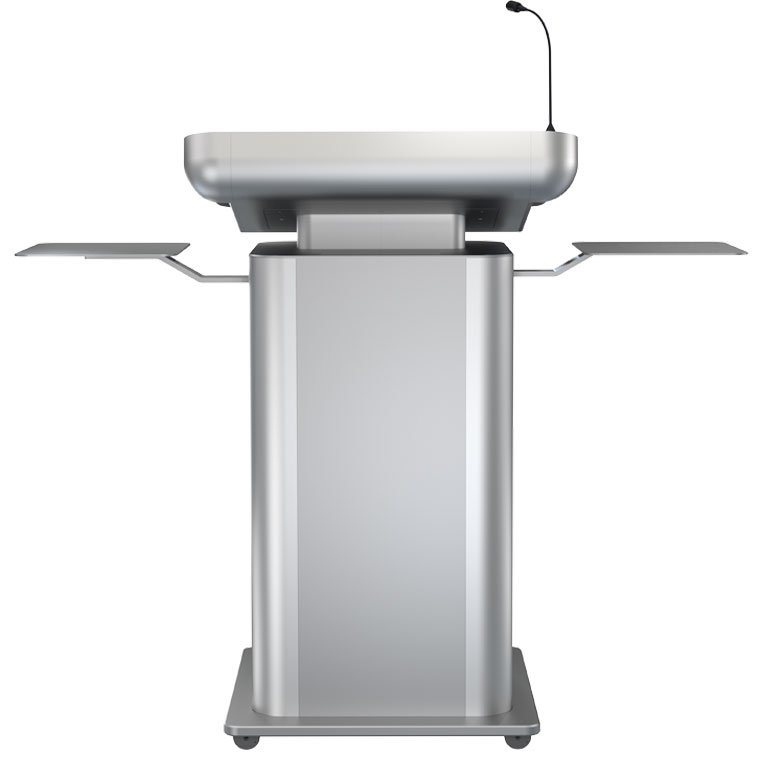

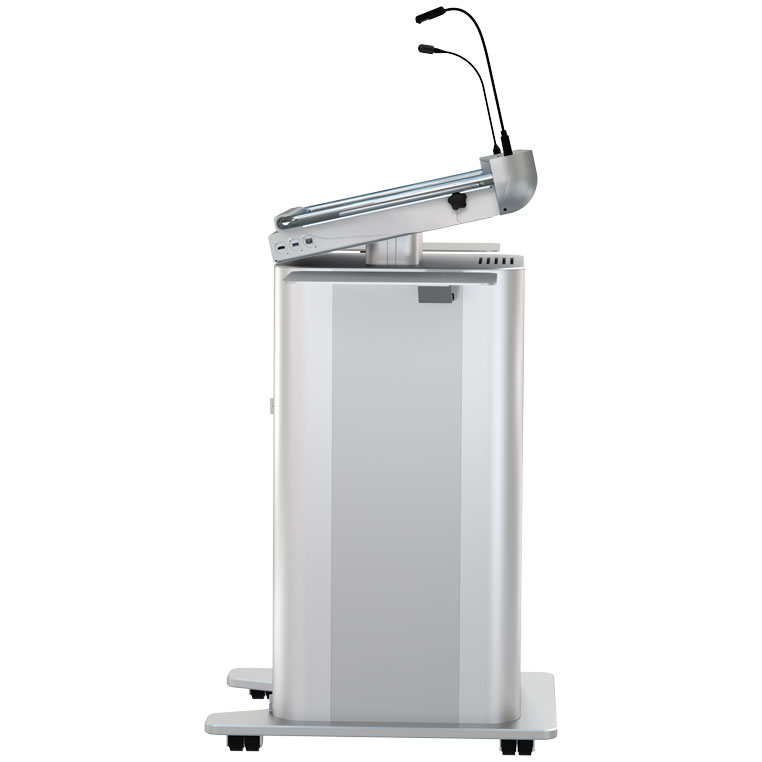

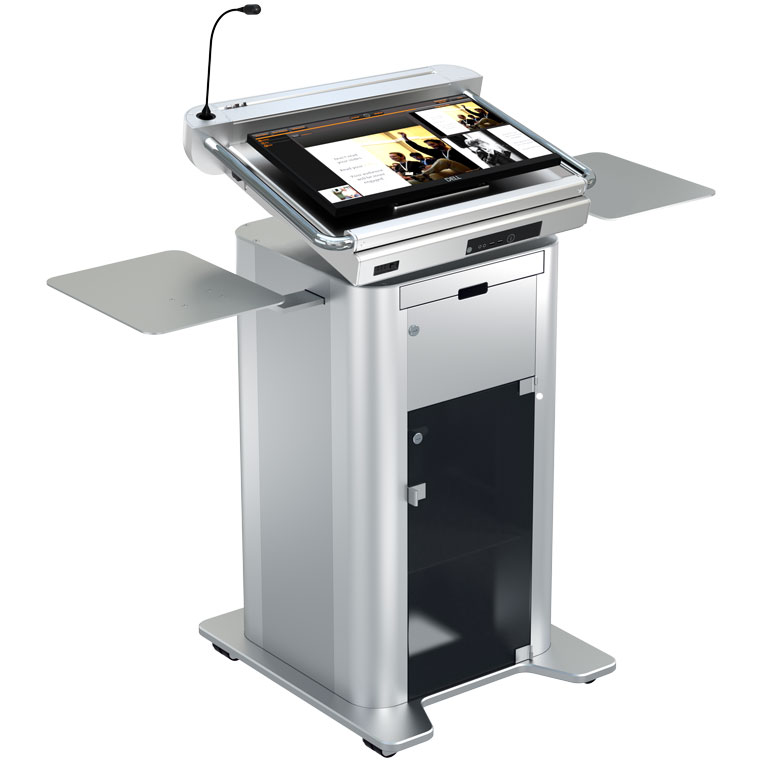

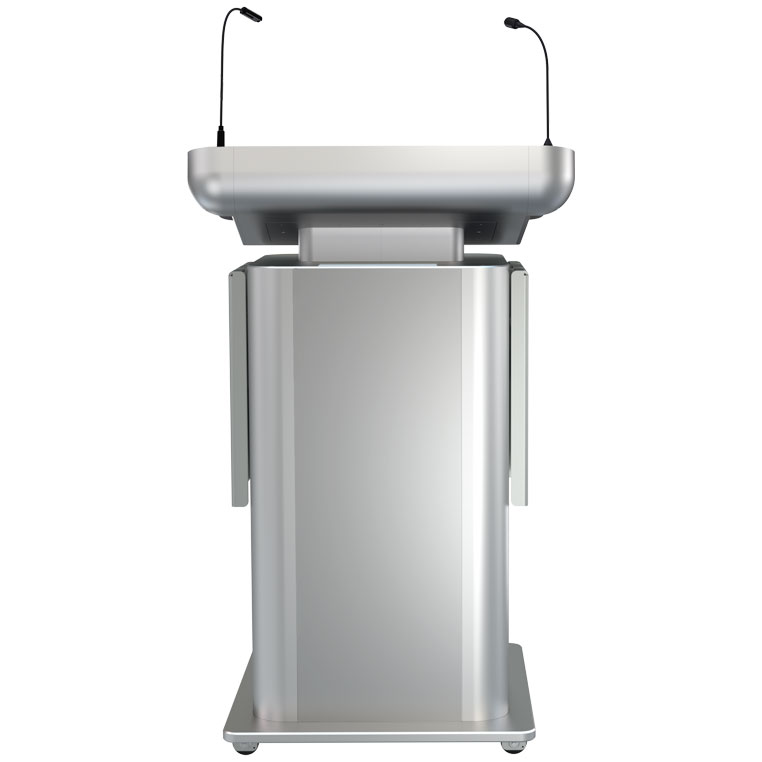

ILS Navigator SC delivers ILS quality with a smart design and cost-efficient solution. Top of the lectern is placed on a compact, narrow cabinet (Half Rack Cabinet). The integrated VESA mount allows the installation of a monitor up to 27”. The small format PC is located inside the cabinet. The working surface of the Navigator series has a tilting range of 12 - 22°.
This solution also provides two fixed horizontal side tables (can be upgraded to the flip or sliding tables). This makes it possible to use handwritten notes, a laptop, or place a document camera on it. A convenient connections panel allows connecting portable devices into the system (near the right table). There is also a holder with built-in charging cables for tablets and smartphones. An XLR3 shock-mount suits most gooseneck microphones (optional 2 sockets).
The cabinet has a keyboard drawer and two lockable compartments with shelves to house a PC and other devices. The top compartment has a drop-down cover and a power strip to feed any laptop as well as hiding place for laptop power supplies. The larger compartment has a glass door and 2 shelves.
For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 72cm x 53,5cm Side Plate: 30cm x 37cm Top + Side Plate: 136,5cm Cabinet: External: width: 48,5cm height: 85cm depth: 47cm Internal: width: 30,5cm height: 61,5cm depth: 46cm Tilt adjustment: 12° - 20° |
| Height | User side: 101cm Audience Side: 114cm |
| Weight | 80kg |
| Integration | |
| Display & PC | Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD; |
| Accessories | Audio: 1 x Microphone: T-bone GM5212 |
| Features | Budget model with monitor tilt for extra 10° range VESA 100x100 mount to hold a monitor up to 27” PC installation inside cabinet Luxury anodised aluminum surface for laptop and documents Half Rack Cabinet 2 x Side Tables 1 x Keyboard drawer 2 x Lockable compartments (1 x Metal door; 1 x Glass door;) 4 x Lockable smart castors or sideway rollers |
| Connectivity | |
| Top dashboard |
1 x 3-Pin XLR Shock Mount for microphone 1 x extra shock mount 3-Pin XLR pin socket for microphone (or 1 x regular mount 4-Pin XLR socket for the reading light) Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) |
| Side connectivity |
ILS 401 (4 x 1) Switcher or 3 x sockets (type on request) |
| Bottom cabling |
External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power |
