ILS Navigator ST

Improve your presentation delivery. Present with ease and confidence.

ILS Navigator ST

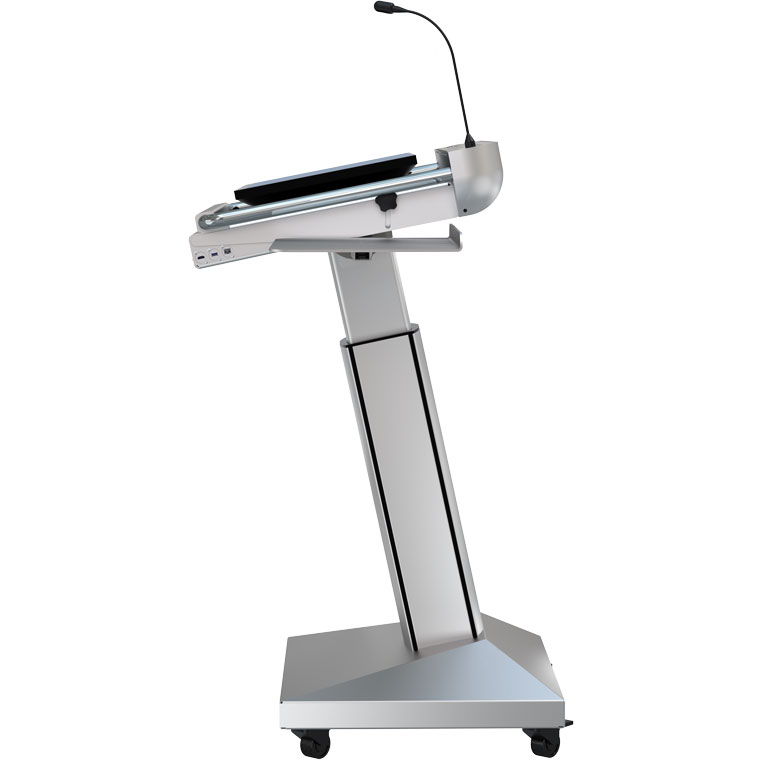

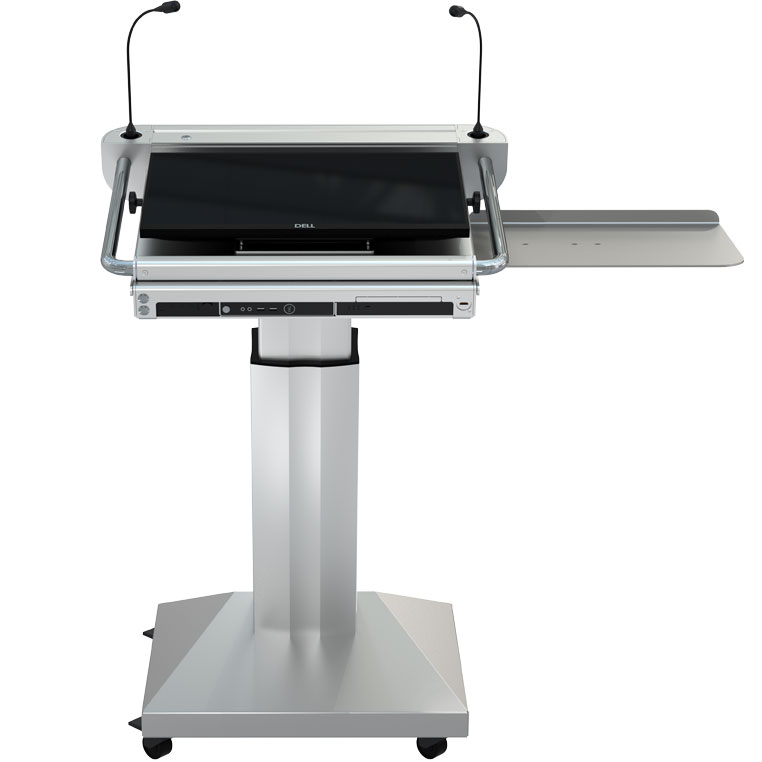

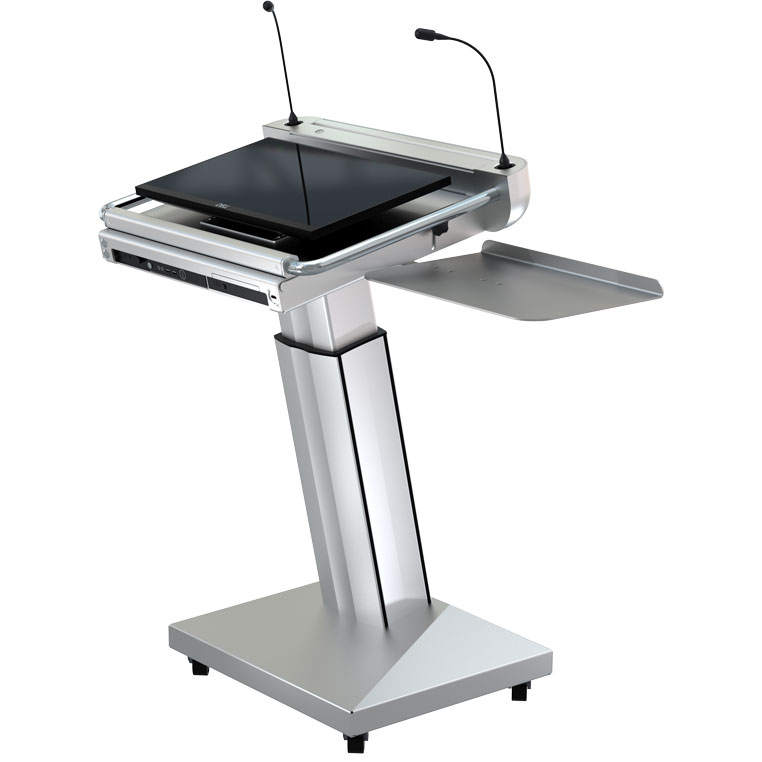

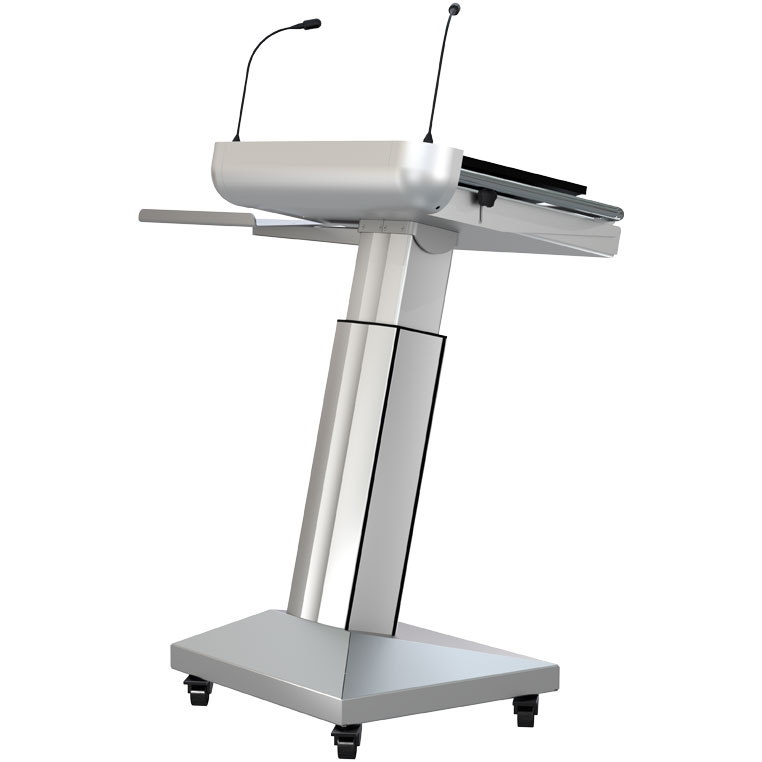

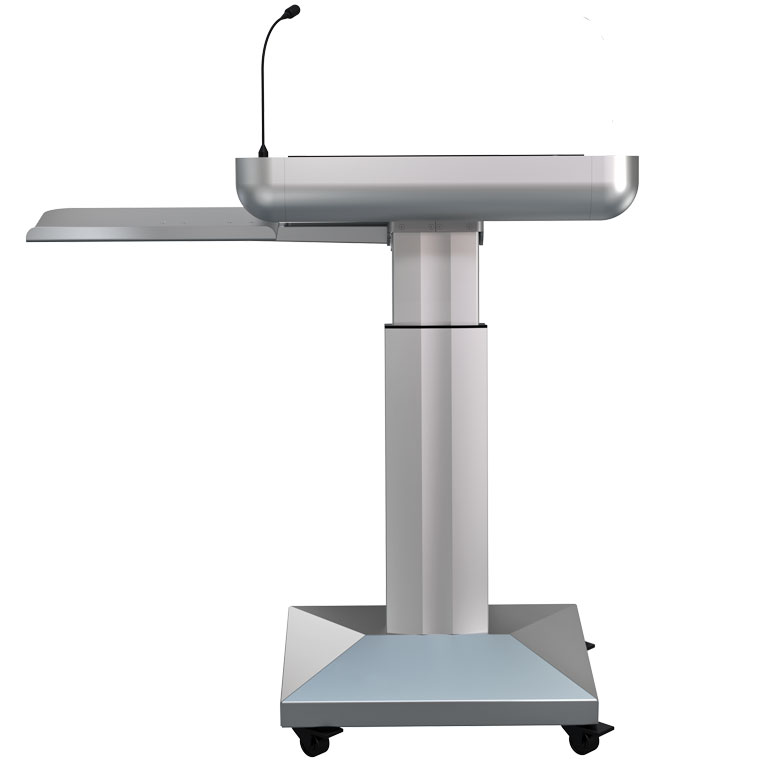

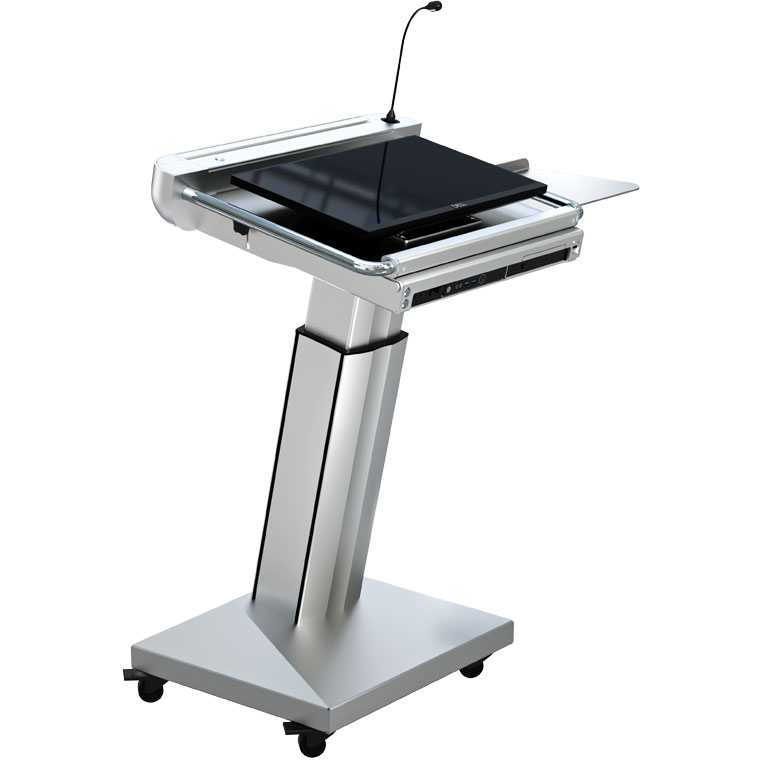

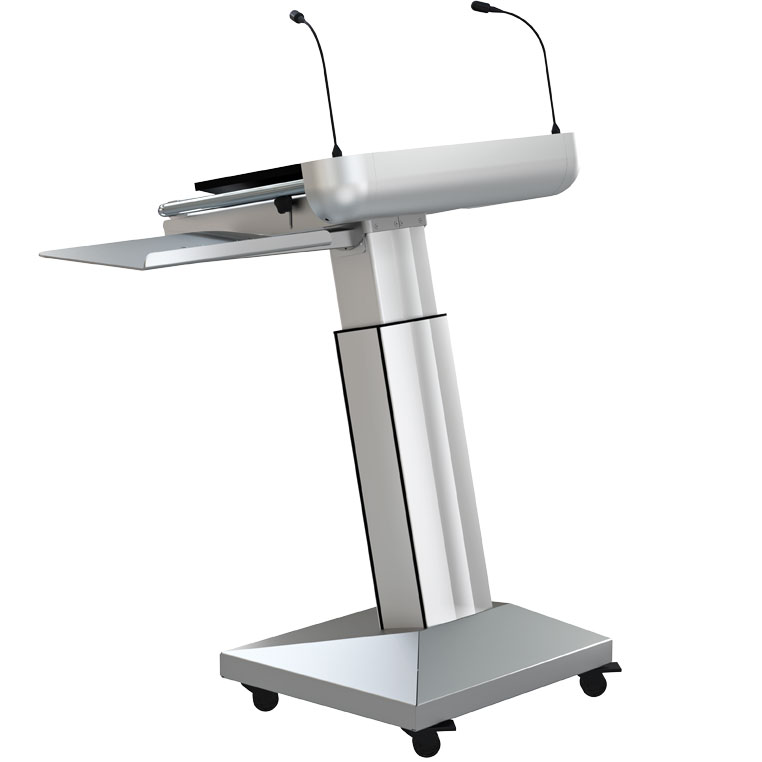

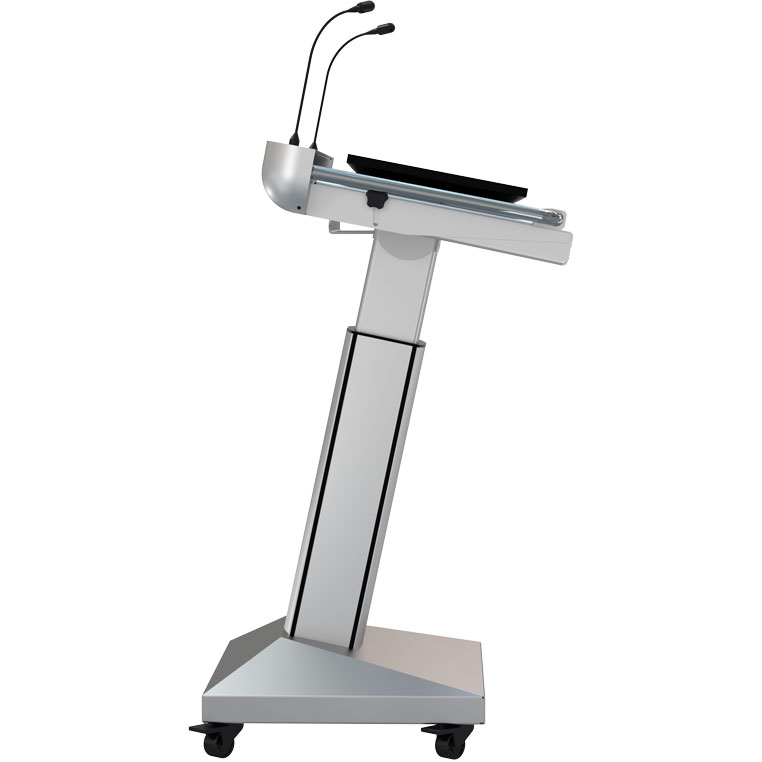

ILS Navigator ST delivers ILS quality with a smart design and cost-efficient solution. The solid top of the lectern is placed on a motorized narrow pillar with a height adjustment range up to 40 cm (15”+). Two buttons will help you to control it. In the lowest position a seated person can freely use the system.

ILS Navigator ST is the ideal budget smart solution for the PC presentation. A holder for the micro PC is installed inside the working surface, and the integrated VESA mount allows the installation of a [touch and/or pen interactive] monitor up to 27”. The working surface of the Navigator series has a tilting range of 12 - 22°. This solution also provides one horizontal side table moving up or down with the top (it is possible to install a second table). This makes it possible to use handwritten notes, a laptop, or place a document camera on it. A built-in switcher with HDMI connector will be an excellent assistant when handling connections between the main screen of the lectern and/or a laptop, or other devices.

There is also a holder with built-in charging cables for tablets and smartphones. An XLR3 shock-mount suits most gooseneck microphones (optional 2 sockets). Additionally, for a greater convenience, a keyboard tray can be integrated, side tables may take the larger contour of a document camera to create a full-fledged education tool.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the extra front/privacy panel of the lectern, in case of using the system in formal events!

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Top: 72cm x 535cm
Side plate: 45cm x 29,5cm
Top + Side plate: 110cm
Height User side min: 83,5cm, max: 123cm
Audience side min: 96,5cm, max: 136cm
Tilt adjustment: 12° - 22°
Weight 65kg
Integration
Display & PC Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen
PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories Audio: 1 x Microphone: AKG CGN 99
Features Budget model with monitor tilt for extra 10° range
VESA 100x100 mount to hold a monitor up to 27”
ILS holder for micro PC installation inside working surface
2 x Height control buttons up to 40cm range
1 x Side Table (Right)
4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard 1 x 3-Pin XLR Shock Mount for microphone
1 x extra shock mount 3-Pin XLR pin socket for microphone
(or 1 x regular mount 4-Pin XLR socket for the reading light)

Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity ILS 401 (4 x 1) Switcher or 3 x Sockets (type on request)
Bottom cabling External display connection 1 x HDMI and/or 1 x HDbaseT
Microphone output: 1 x XLR cable per microphone
1 x 3,3mm Audio 1 x AIO PC LAN
1 x Switcher Control
1 x AC Power
