ILS Synergy AC

Improve your presentation delivery. Present with ease and confidence.

ILS Synergy AC

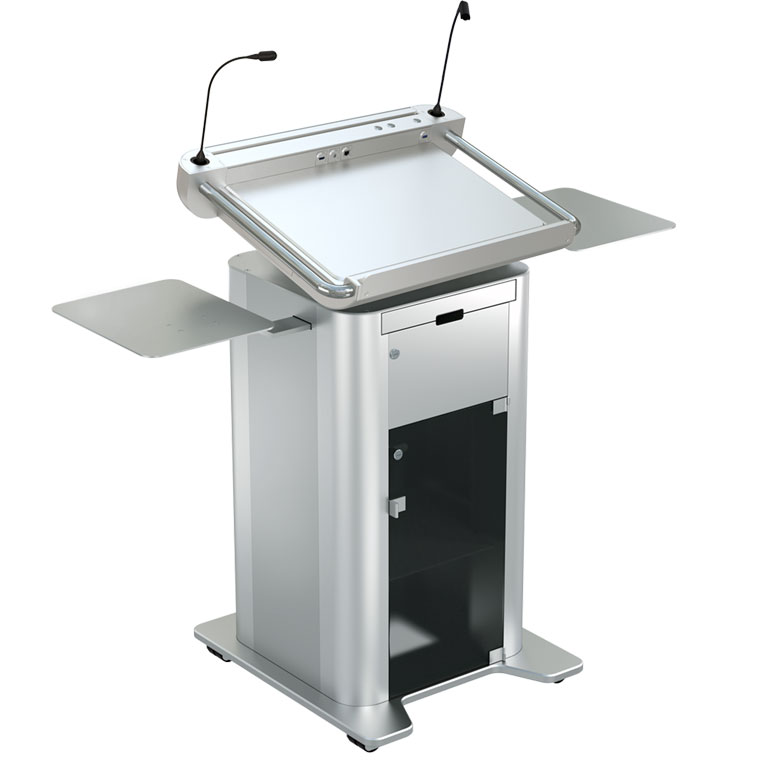

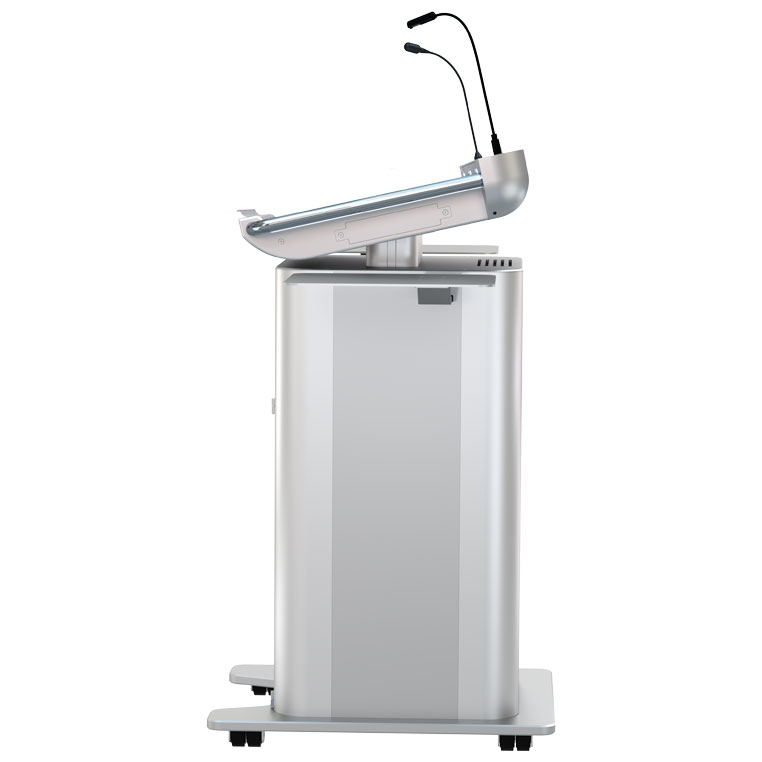

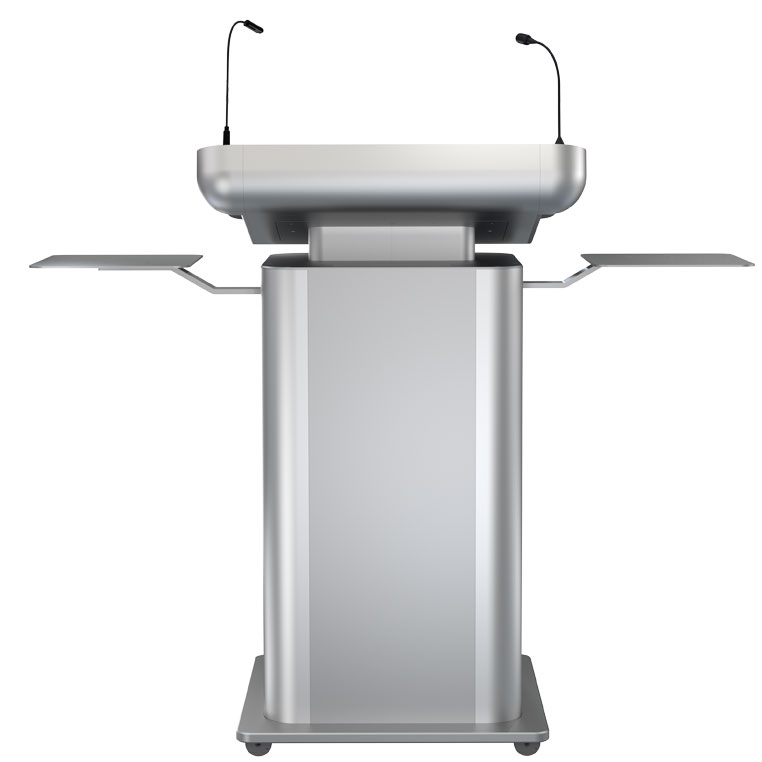

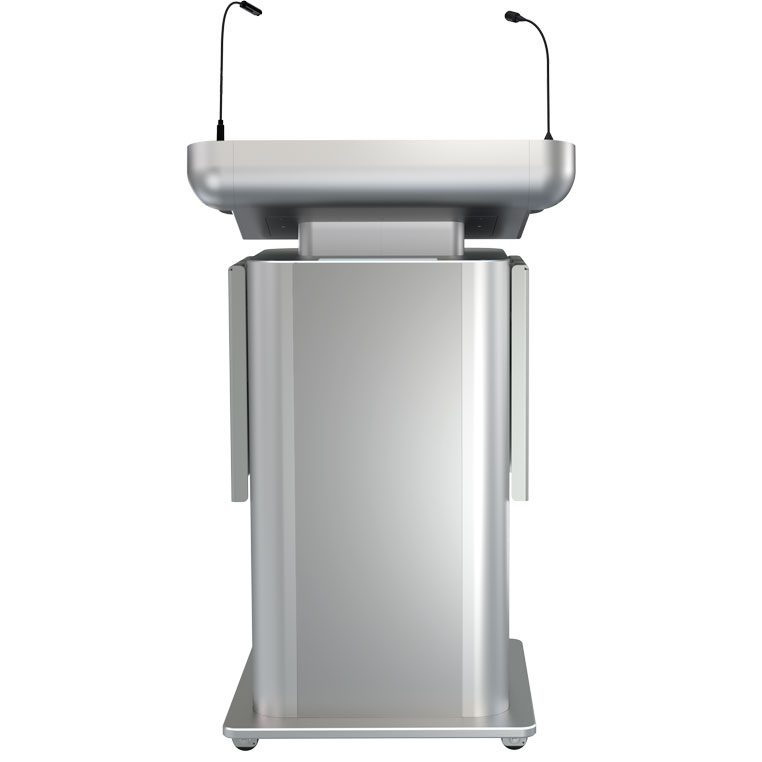

ILS Synergy AC delivers ILS quality with a smart design. The solid top of the lectern is made of anodized aluminum and placed on a compact, narrow cabinet (Half Rack Cabinet).

The Synergy AC is an ideal solution for rooms where handwritten notes or laptops are used for presentation. There is also a laptop power socket and a holder with built-in charging cables for tablets and smartphones. To connect other devices, there are four sockets with the type on request. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. This lectern also provides two fixed horizontal side tables (can be upgraded to the flip or sliding tables). This makes it possible to use extra handwritten notes, laptop, or place a document camera on it. The cabinet has a keyboard drawer and two lockable compartments.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Top: 72cm x 53,5cm
Side Plate: 30cm x 37cm
Top + Side Plate: 136,5cm

Cabinet:
External: width: 48,5cm height: 85cm depth: 47cm
Internal: width: 30,5cm height: 61,5cm depth: 46cm
Tilt adjustment: 12° - 20°
Height User side: 101cm
Audience side: 114cm
Weight 80kg
Integration
Accessories Audio: 1 x Microphone: AKG CGN 99
Light: 1 x Light: LITTLITE LED XLR-4 lamp
Features Luxury anodised aluminum surface for laptop and documents
Half Rack Cabinet
1 x Light button
2 x Side tables
1 x Keyboard drawer
2 x Lockable compartments (1 x Metal door; 1 x Glass door for the compartment with 2 shelves;)
4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard 1 x 3-Pin XLR Shock Mount for microphone
1 x regular mount 4-Pin XLR socket for the reading light
(or 1 x extra shock mount 3-Pin XLR pin socket for microphone)

Integrated computer expansion ports:
2 x USB Sockets for external USB devices

Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity 4 x Sockets (type on request) - Laptop connectivity
1 x AC Power socket
Bottom cabling External display connection 1 x HDMI
Microphone output: XLR cable per microphone
1 x AIO PC LAN
1 x AC Power
