ILS Synergy AT
Improve your presentation delivery. Present with ease and confidence.
Datasheets
- ILS Synergy AT Datasheet (PDF)
Order Form

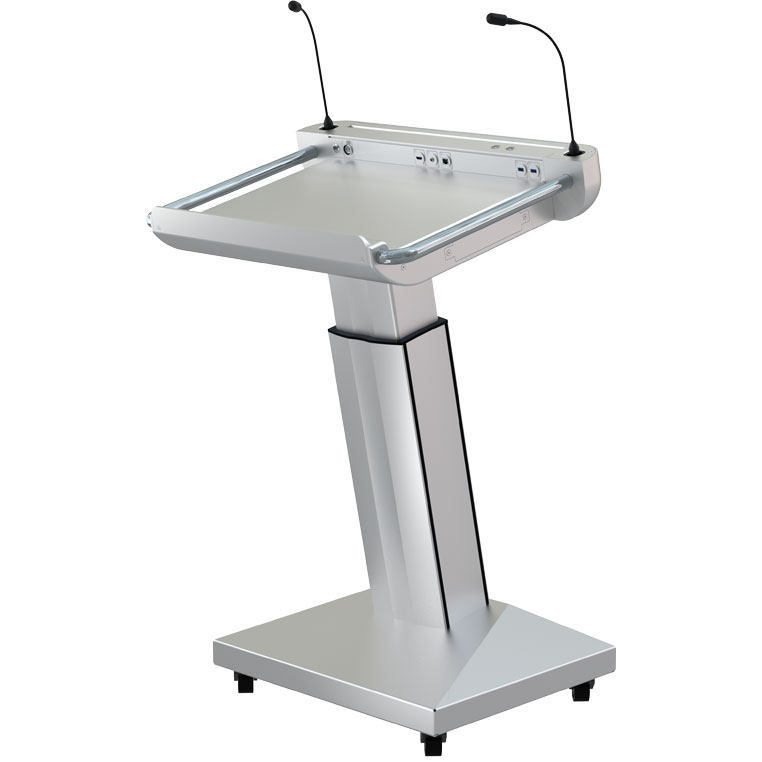

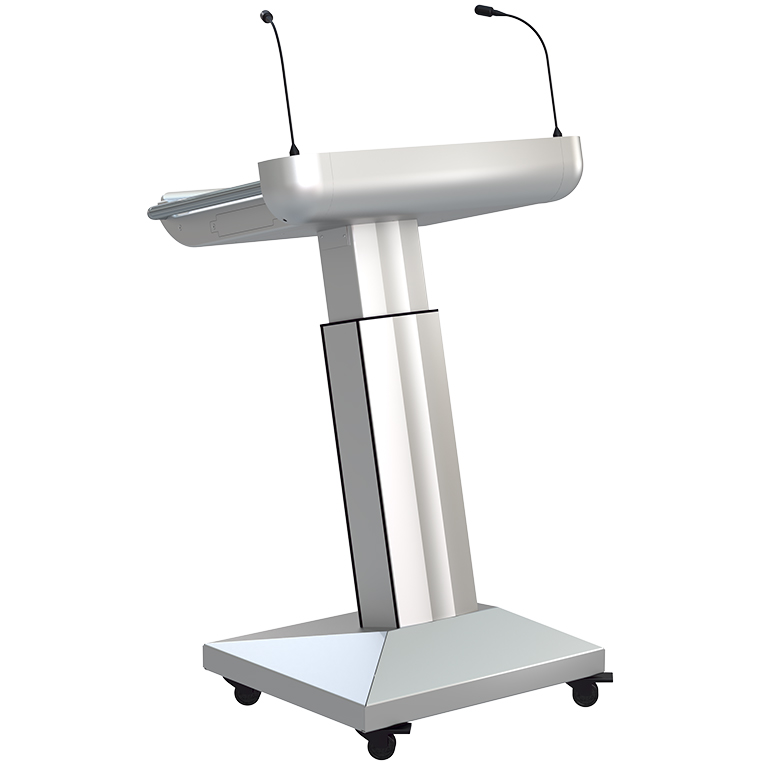

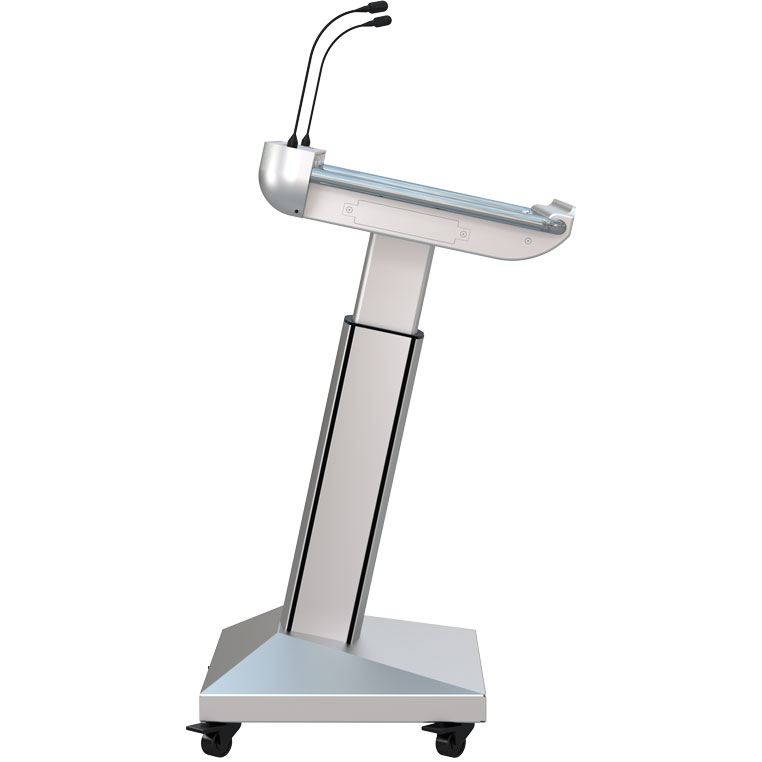

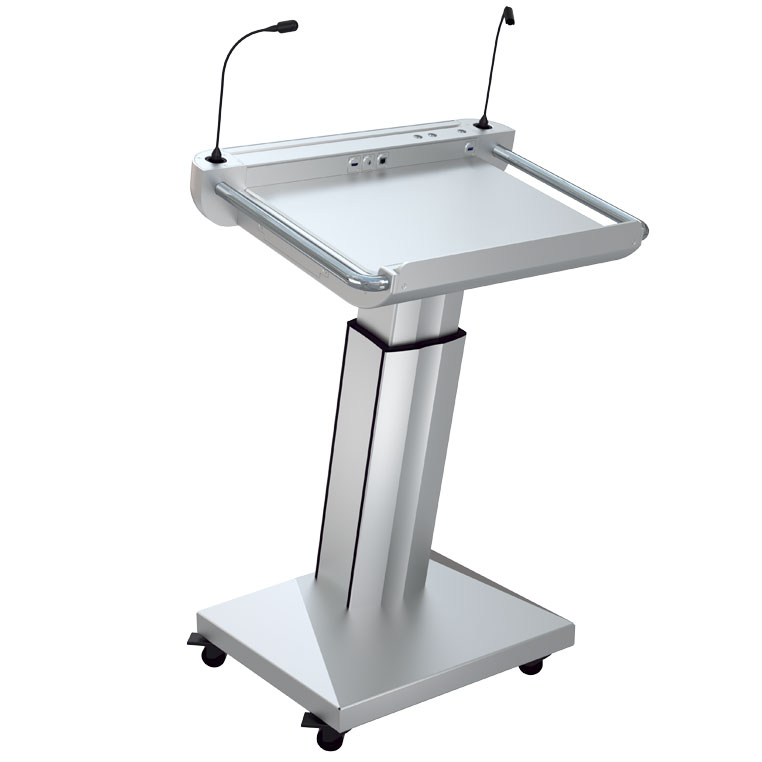

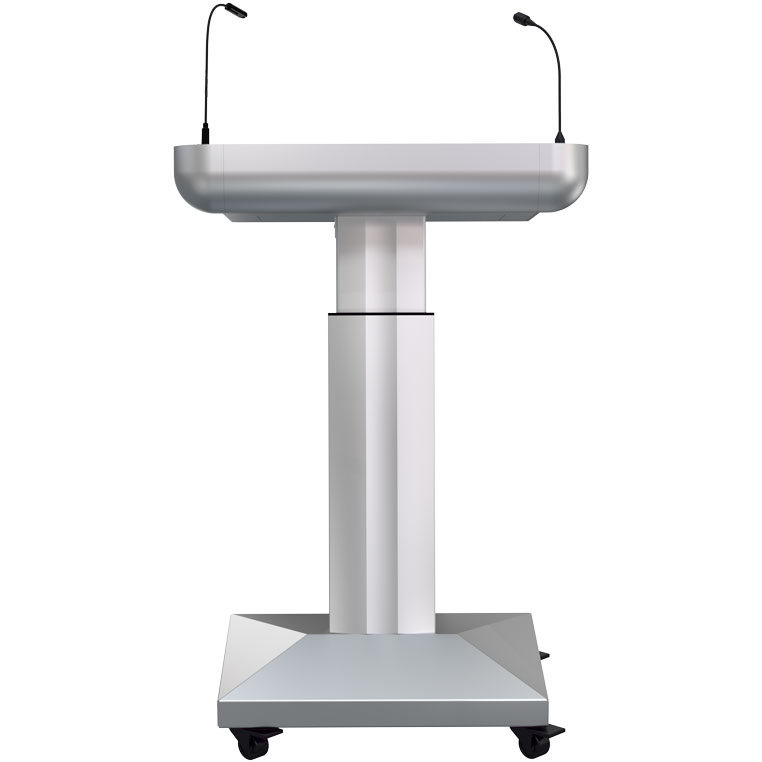

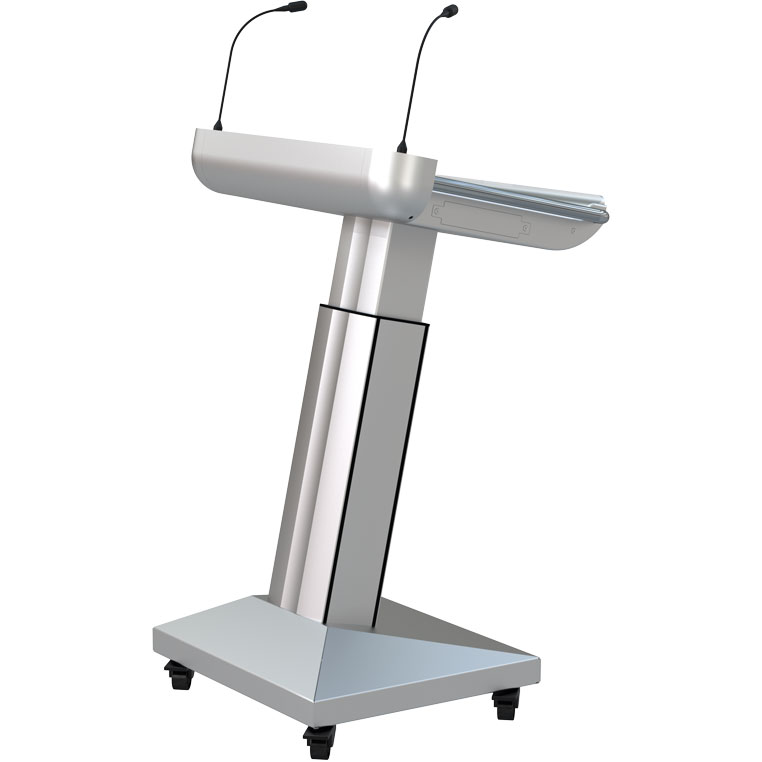

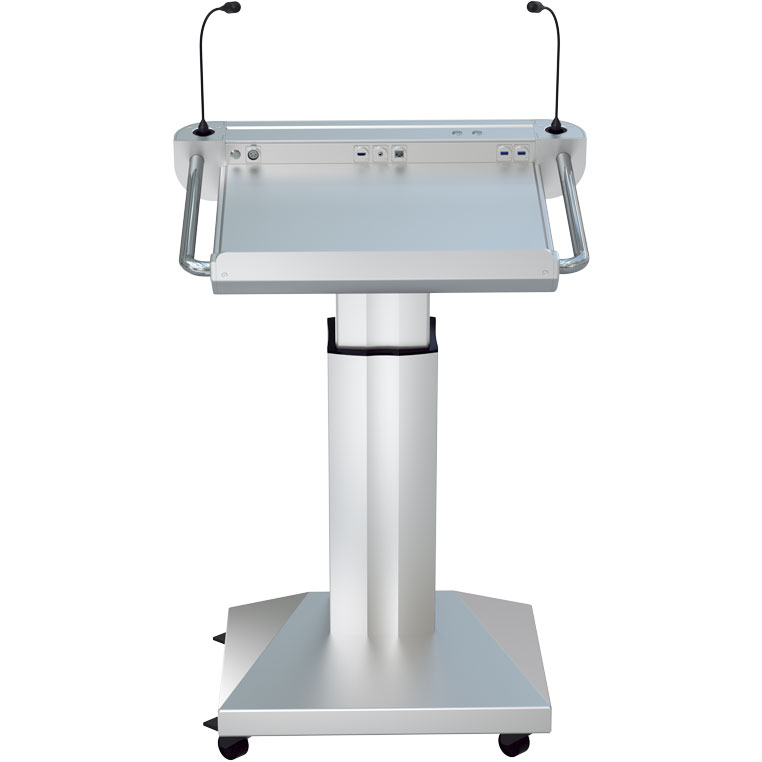

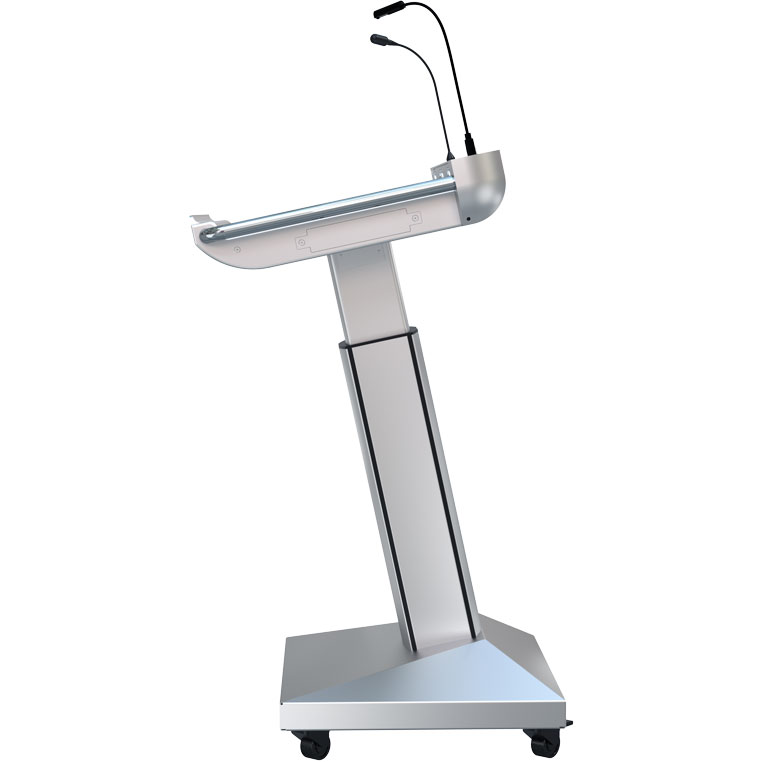

ILS Synergy AT delivers ILS quality with a smart design. The solid top of the lectern is made of anodized aluminum and placed on a motorized narrow pillar with a height adjustment range up to 40 cm (15 ”+). Two buttons will help you to control it. In the lowest position, a seated person can freely use the system.

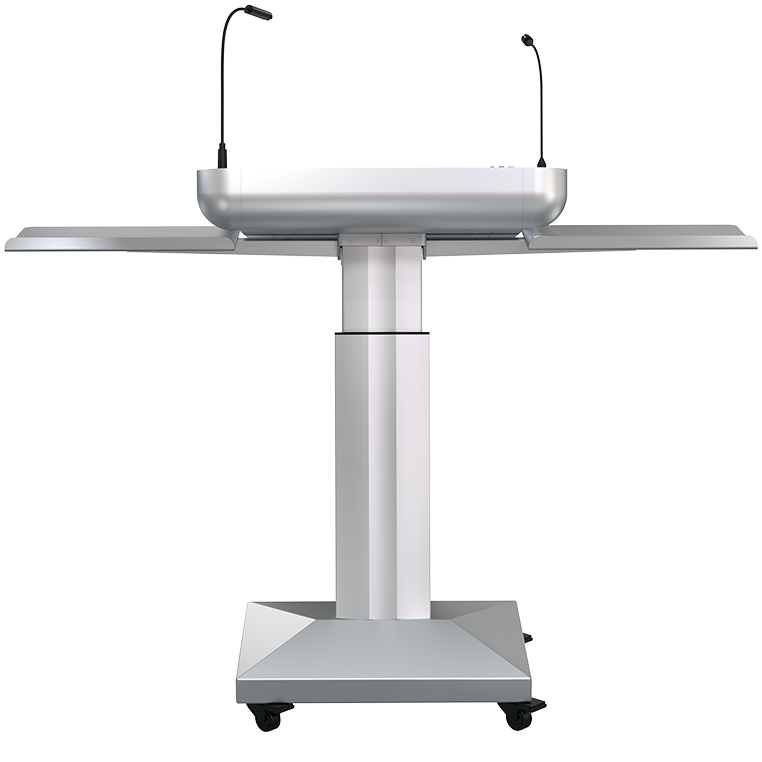

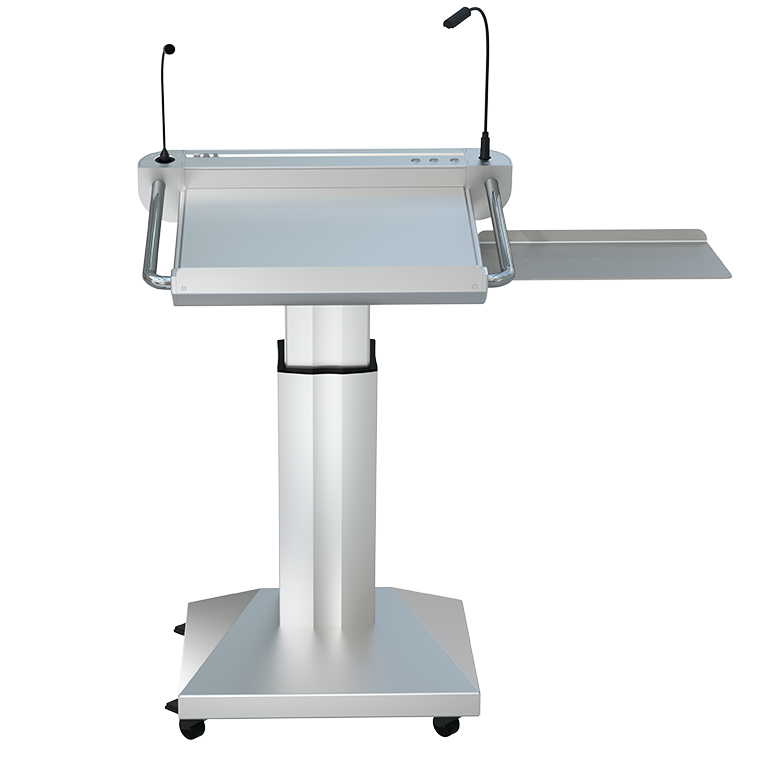

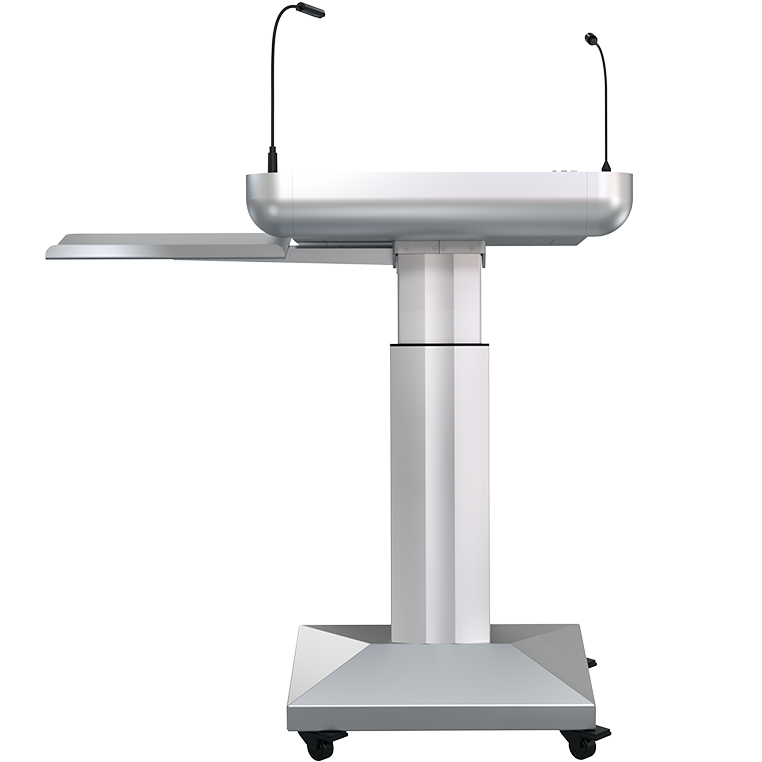

The Synergy AT is an ideal solution for rooms where handwritten notes or laptops are used for presentation. There is also a laptop power socket and a holder with built-in charging cables for tablets and smartphones. To connect other devices, there are four sockets with the type on request. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. When needed, horizontal side tables can be integrated moving up and down with the top. This will make it possible to place a document camera on one of them.

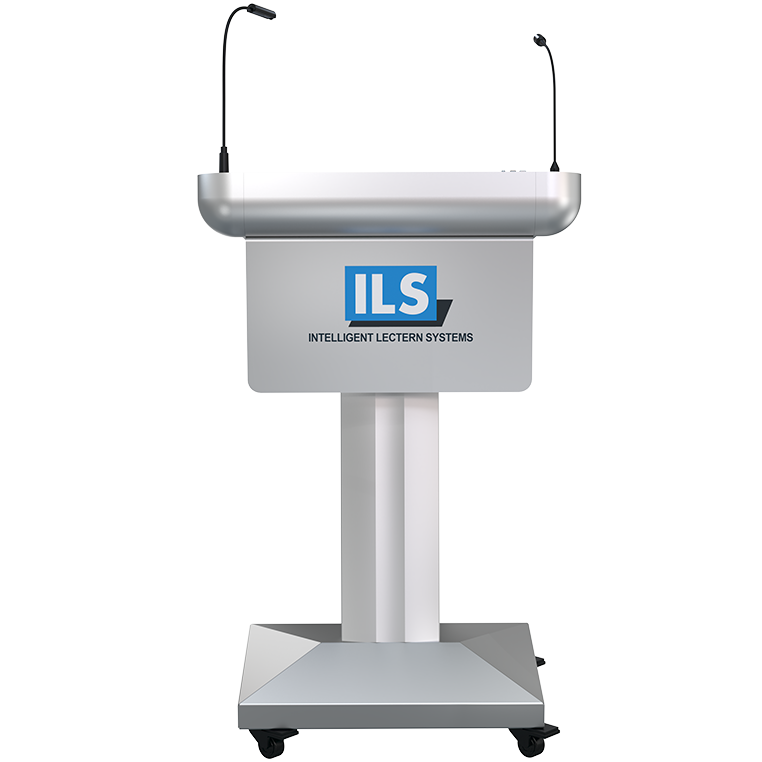

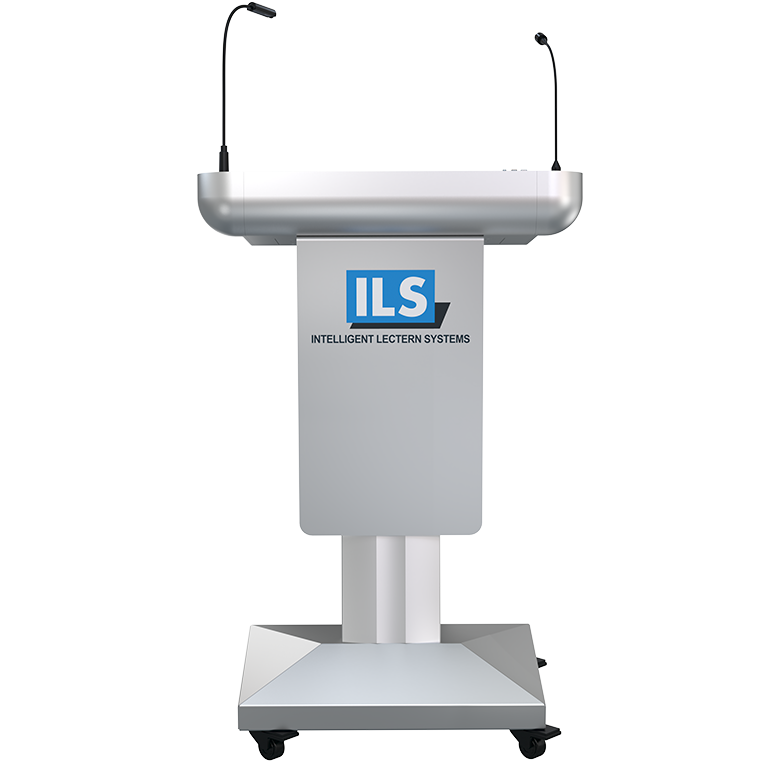

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the extra front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 72cm x 53,5cm |
| Height | User side min: 86cm, max: 125cm Audience side min: 97cm, max: 136cm |
| Weight | 60kg |
| Integration | |
| Accessories | Audio: 1 x Microphone AKG CGN 99 Light: 1 x LITTLITE LED XLR-4 lamp |
| Features | Luxury anodised aluminum surface for laptop and documents 3 x Buttons (2 x Height control up to 40cm range; 1 x Light;) 4 x lockable smart castors or sideway rollers |
| Connectivity | |
| Top dashboard |
1 x 3-Pin XLR Shock Mount for microphone 1 x regular mount 4-Pin XLR socket for the reading light (or 1 x extra shock mount 3-Pin XLR pin socket for microphone) Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) |
| Side connectivity |
4 x Sockets (type on request) - Laptop connectivity 1 x AC Power socket |
| Bottom cabling |
External display connection 1 x HDMI Microphone output: XLR cable per microphone 1 x AIO PC LAN 1 x AC Power |
