ILS Synergy QC
Improve your presentation delivery. Present with ease and confidence.
Datasheets
- ILS Synergy QC Datasheet (PDF)
Order Form

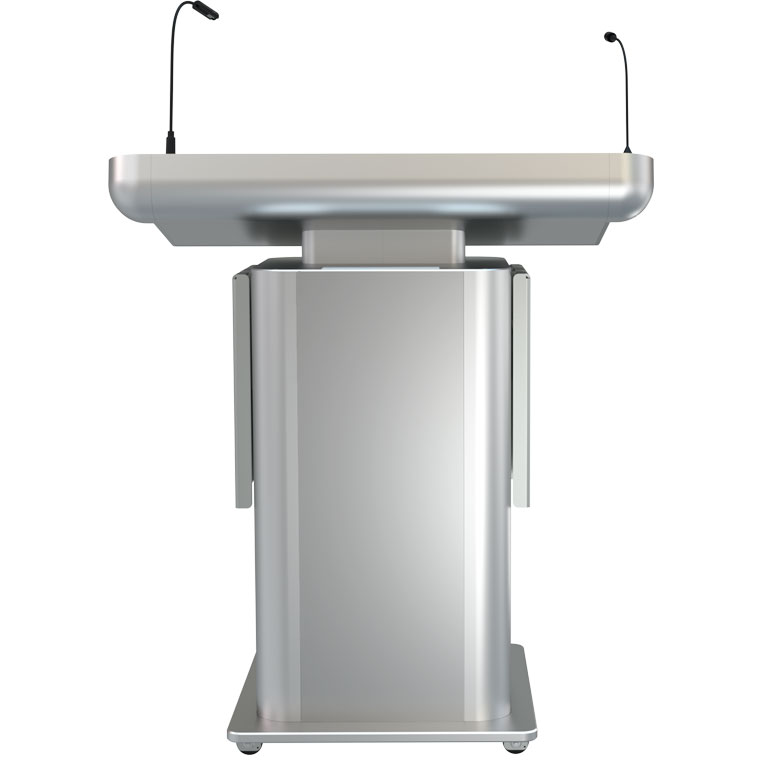

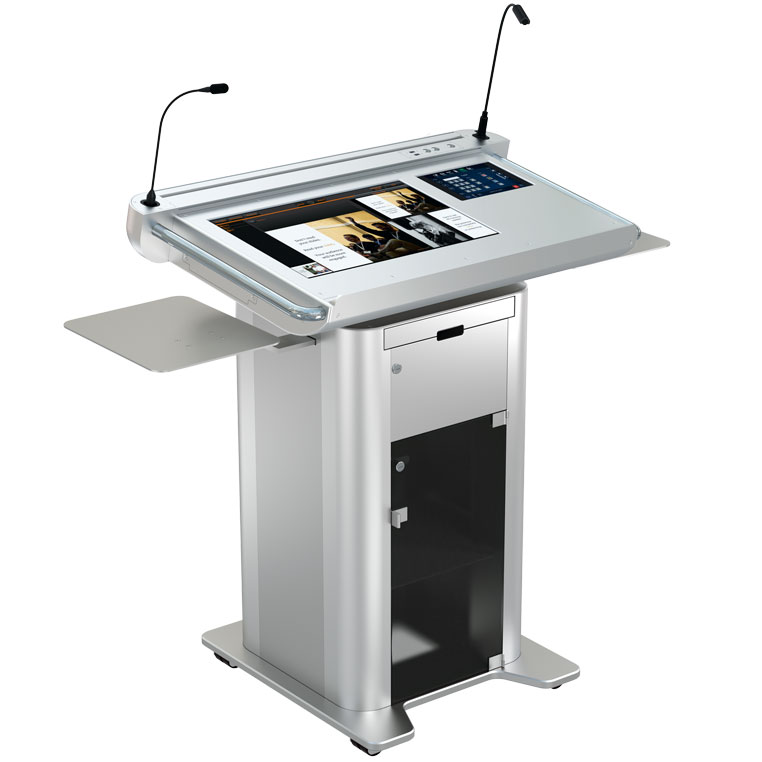

ILS Synergy QC delivers ILS quality with a smart design. Long version of the top is placed on a compact, narrow cabinet (Half Rack Cabinet). Long version of the top is divided into two working areas. On the left is a monitor 24”, mounted inside the working surface. On the right is a smooth aluminum surface for handwritten notes, laptop or control panel. A holder for the micro PC is installed inside the working surface.

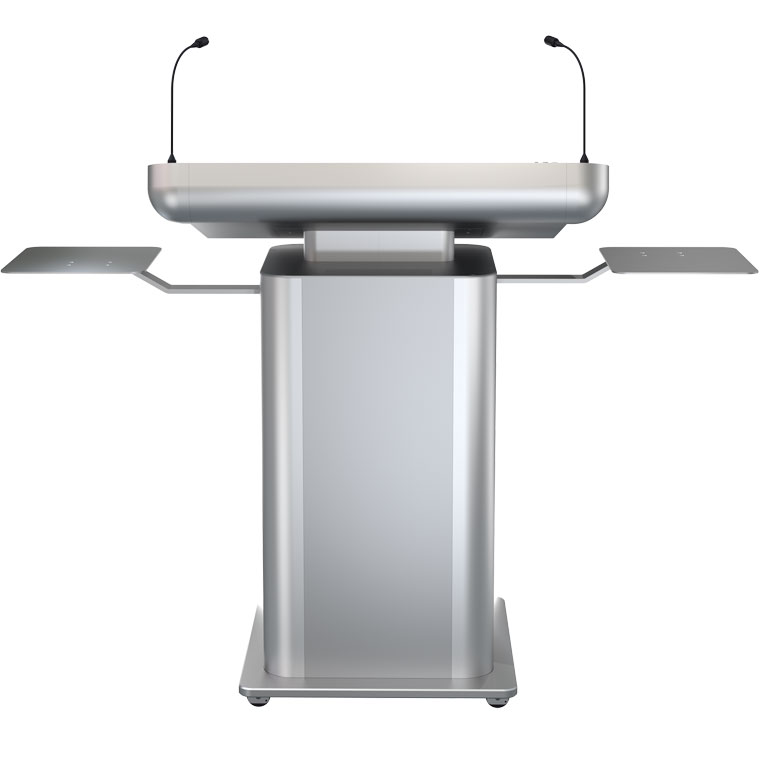

This lectern also provides two fixed horizontal side tables (can be upgraded to the flip or sliding tables). This makes it possible to use extra space for handwritten notes, laptop, or place a document camera on it. The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product. There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. The cabinet has a keyboard drawer and two lockable compartments.
For mobility and rock-solid stability of the lectern during the presentation, 4 side-ways rollers are embedded in the bottom plate. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 103cm Side Plate: 30cm x 37cm Top + Side Plate: 167,5cm Cabinet: External: width: 48,5cm height: 85cm depth: 47cm Internal: width: 30,5cm height: 61,5cm depth: 46cm Tilt adjustment: 12° - 20° |
| Height | User side: 101cm Audience side: 114cm |
| Weight | 90kg |
| Integration | |
| Display & PC | Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen (up to 30”) PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD; |
| Accessories | Audio: 1 x Microphone: AKG CGN 99 Light: 1 x Light: LITTLITE LED XLR-4 lamp |
| Features | ILS holder for micro PC installation inside working surface Extra space on the right from the display for laptop or notes <27” monitor Half Rack Cabinet 5 x Buttons (4 x Signal switch; 1 x Light;) 2 x Side tables 1 x Keyboard drawer 2 x Lockable compartments (1 x Metal door; 1 x Glass door for the compartment with 2 shelves;) 4 x Lockable smart castors or sideway rollers |
| Connectivity | |
| Top dashboard |
1 x 3-Pin XLR Shock Mount for microphone 1 x BNC Light socket (12V) for the reading light (or 1 x extra shock mount 3-Pin XLR pin socket for microphone) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) |
| Side connectivity |
ILS503 Switcher or 4 x Sockets (type on request) - Laptop connectivity |
| Bottom cabling |
External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power |
