ILS Synergy QK

Improve your presentation delivery. Present with ease and confidence.

Datasheets

• ILS Synergy QK Datasheet (PDF)

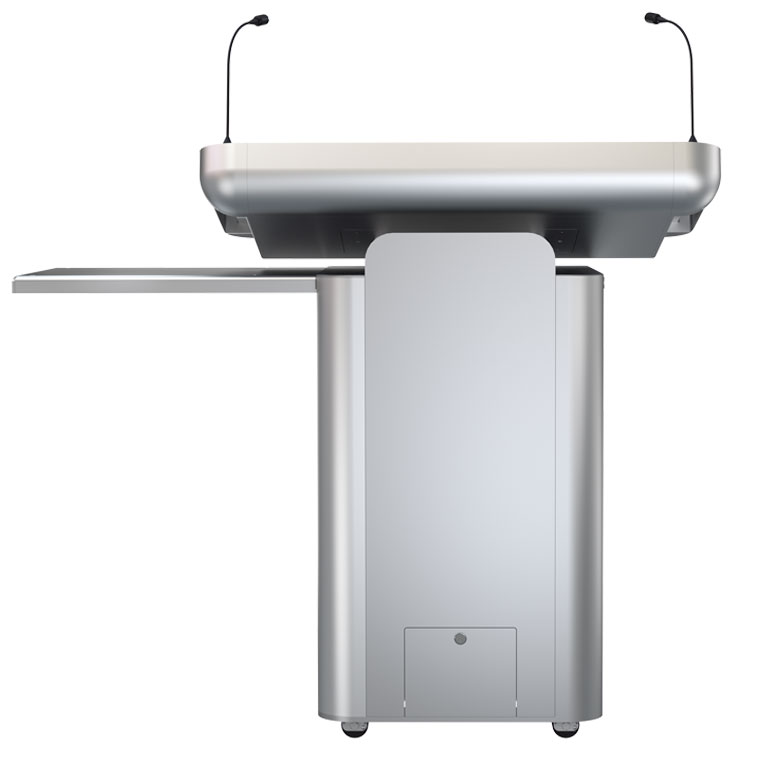

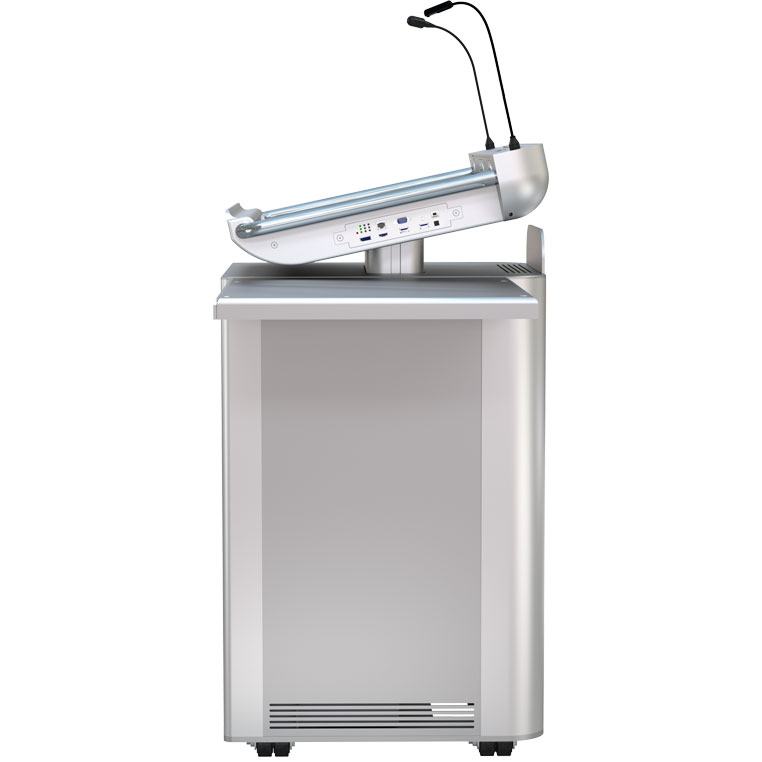

ILS Synergy QK delivers ILS quality with a smart design. Long version of the top is placed on a compact, motorized wide cabinet (14U Full Rack Cabinet) with a height adjustment range up to 23 cm (9”+). Two buttons will help you to control it.

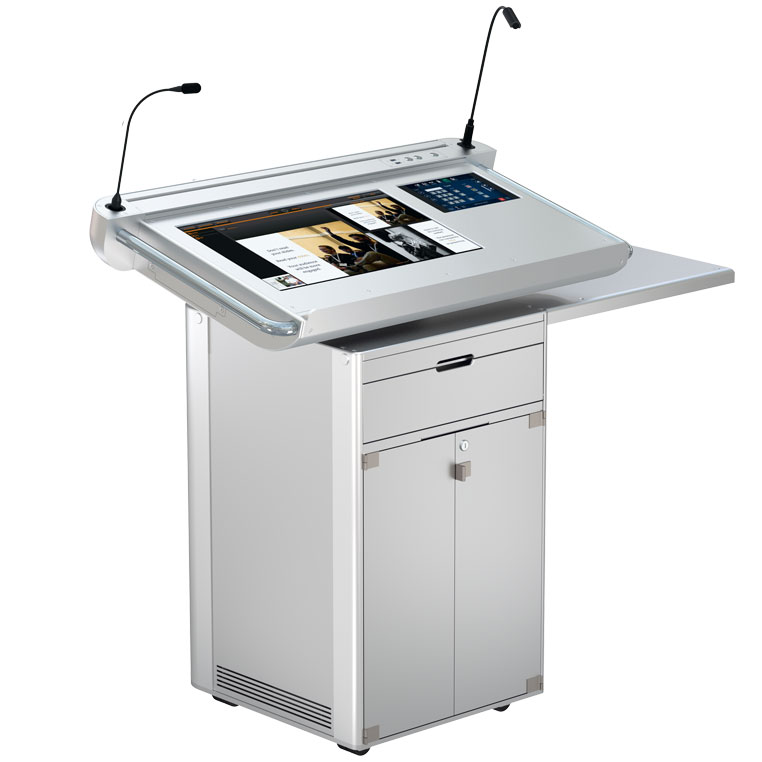

Long version of the top is divided into two working areas. On the left is a monitor 24”, mounted inside the working surface. On the right is a smooth aluminum surface for handwritten notes, laptop or installed control panel. A holder for the micro PC is installed inside the working surface. This lectern also provides one horizontal side table (can be upgraded to the 1 or 2 flip or sliding tables). This makes it possible to use handwritten notes, laptop, or place a document camera on it.

The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product. There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. The cabinet has a keyboard drawer, one lockable compartment and a trap door for quick cable access.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:

• conventions
• corporate
• training
• university

Technical specifications:

Dimensions
Width	Top: 103cm Side Plate: 33cm x 48cm Top + Side Plate: 132,5cm Cabinet: External: width: 52cm height: 805,cm depth: 56cm Internal: width: 48,5cm height: 16cm (from lift to top) 43cm (from lift to bottom) depth: 25,5cm (from lift to top) 55cm (from lift to bottom)
Height	User side min: 97cm, max: 117cm Audience side min: 109,5cm, max: 139,5cm
Weight	105kg
Integration
Display & PC	Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen; PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories	Audio: 1 x Microphone: AKG CGN 99 Light: 1 x Light: LITTLITE LED BNC lamp
Features	Extra space on the right from the display for laptop or notes ILS holder for micro PC installation inside working surface 14U Full Rack Motorised Cabinet 20cm range height 7 x Buttons (2 x Height control; 4 x Signal switch; 1 x Light;) 1 x Side Table (Right) 1 x Keyboard drawer 2 x Lockable compartments (1 x Metal Drop down door; 2 x Doors;) 4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard	1 x 3-Pin XLR Shock Mount for microphone 1 x BNC Light socket (12V) for the reading light (or 1 x extra shock mount 3-Pin XLR pin socket for microphone ) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity	ILS503 Switcher or 4 x sockets (type on request) - Laptop connectivity
Bottom cabling	External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power
