Intelligent Lectern Systems - Synergy QW-FD Lectern

ILS Synergy QW-FD

Improve your presentation delivery. Present with ease and confidence.

                Datasheets
                ILS Synergy QW-FD Datasheet.EN (PDF)
ILS Synergy QW-FD Datasheet.ES (PDF)

                Order Form
                ILS SYNERGY Wide Pillar order form (PDF)

ILS is building the highest quality lecterns around with perfect logo engravings in the front of any ILS system.

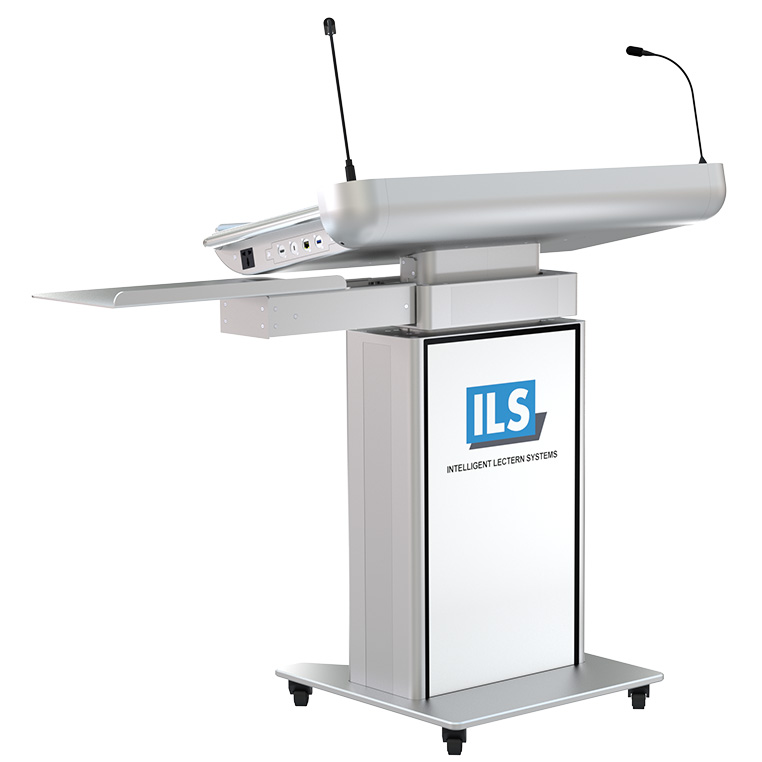

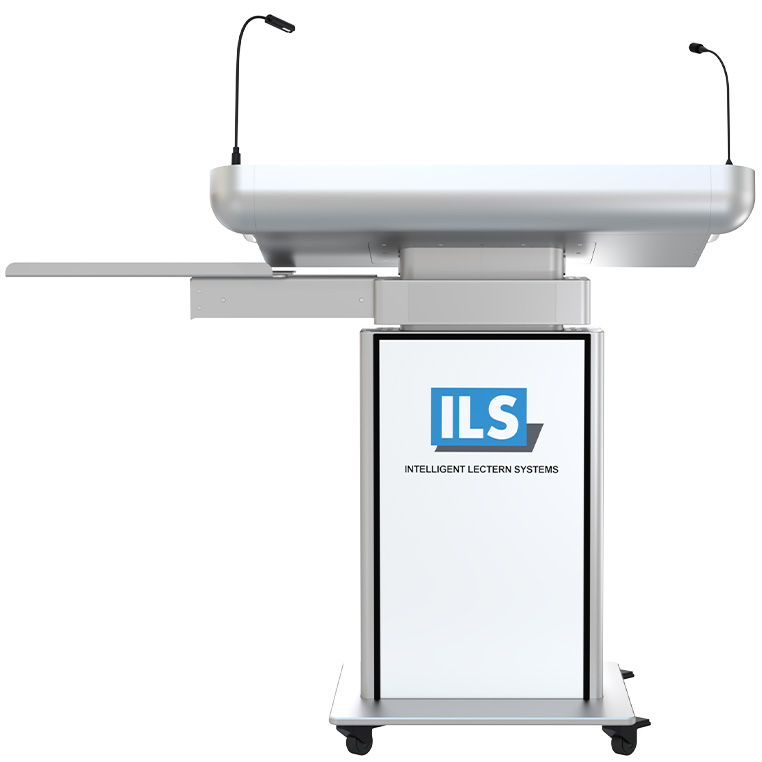

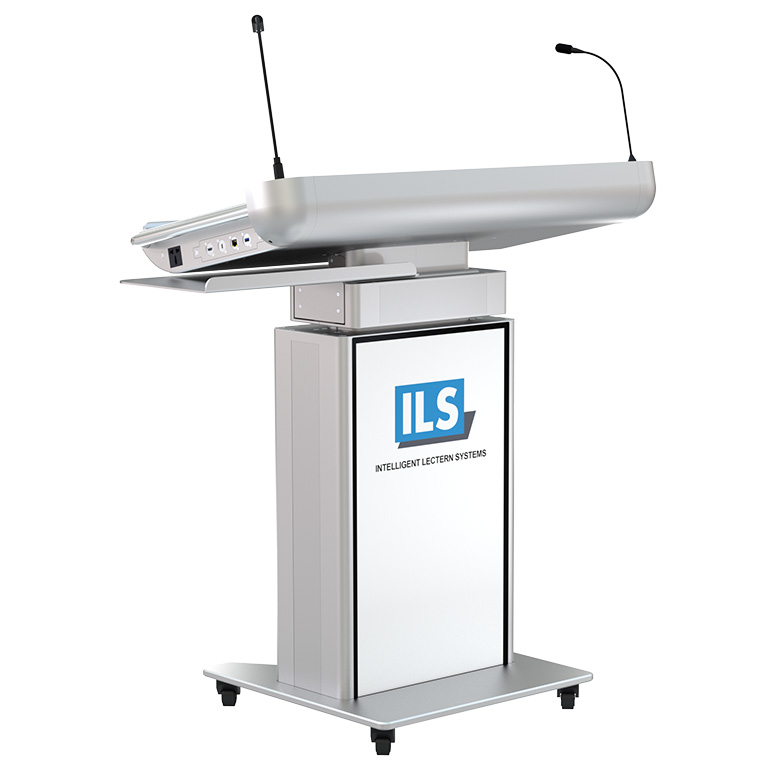

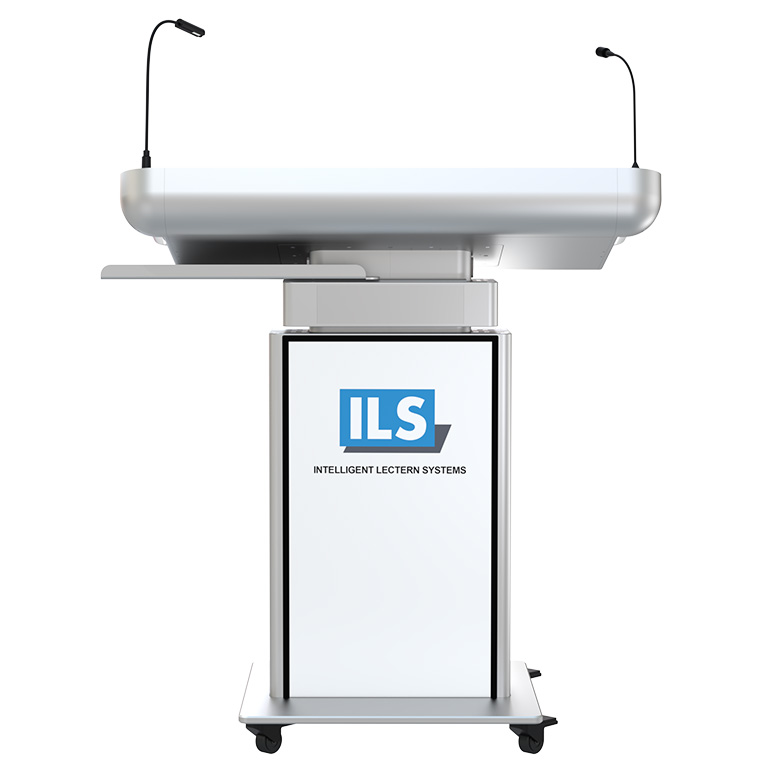

                    For dynamic environments, ILS offers a perfectly integrated front monitor of 32” with media player to announce
                    speakers and show event or corporate logos. With it comes lockable storage that allows direct access to 3 half
                    rack devices. The PC may be there or in the top.

The front display system is available on ILS Synergy AW, SW, GW, QW.

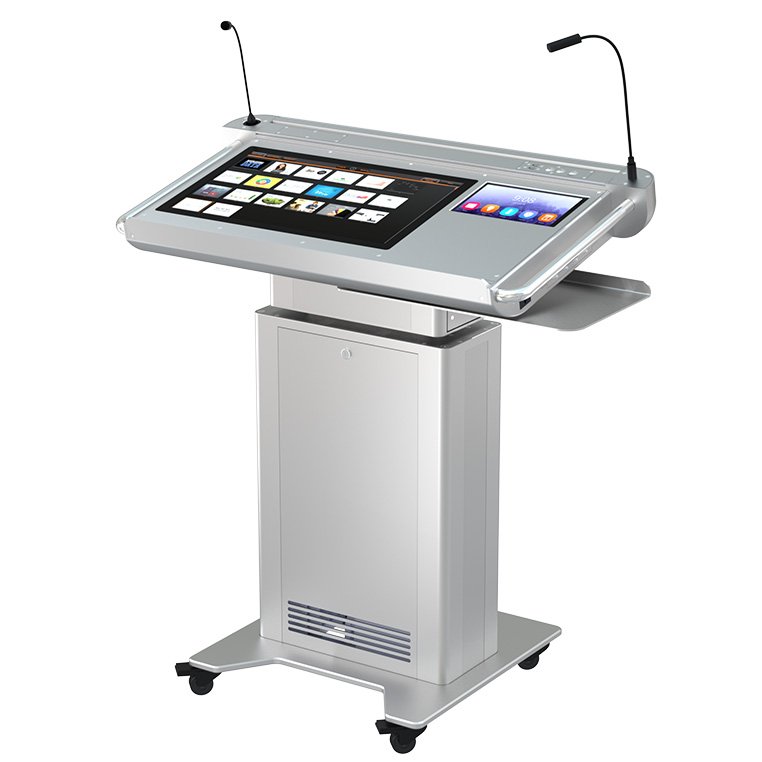

The intelligent ILS Synergy QW comes with generous height adjustment
                    to comfortably operate and present from the 24” touch monitor with an
                    integrated PC in the top. Casing and pedestal are all made of thick machined
                    aluminium profiles, blocks and plates to last a lifetime and beyond.

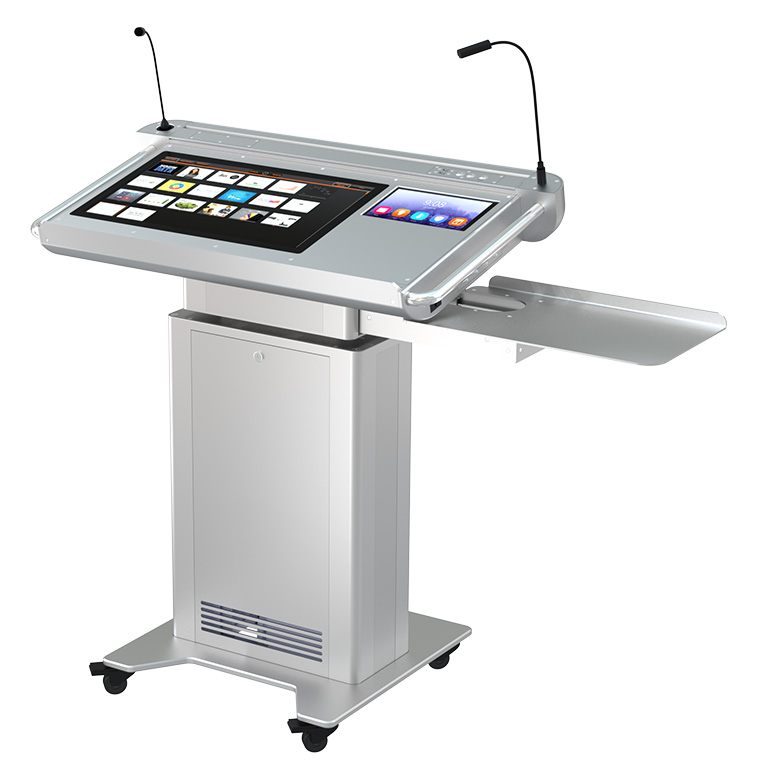

                    The wide top is divided in 2 areas: left the interactive 24” monitor
                    mounted flush inside the top surface, to the right an area for notes or have a
                    touch control panel installed, for which we support all major brands with up to
                    10” displays.

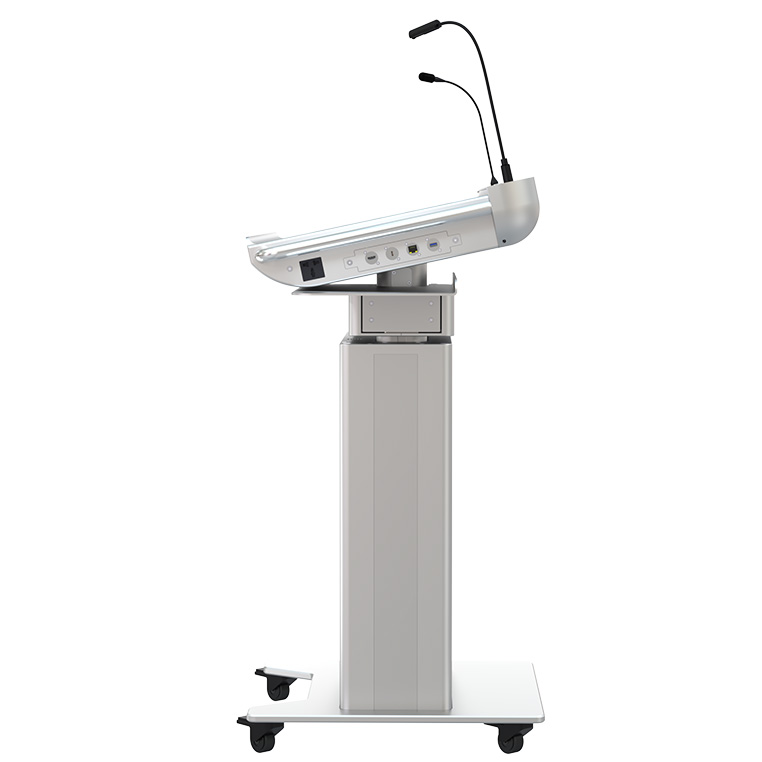

                    Of course, the system comes with laptop connectivity for which there
                    are 4 user definable Neutrik Style sockets available, it comes with charging
                    features for any tablet of smart phone to use e.g. a timer app; one or two
                    microphone shock-mounts, a reading light and an optional mute button feature.

                    For mobility, the system comes on lockable casters, default 50mmØ for
                    hard floors, or 75mmØ for thick carpets to facilitate moving the lectern around.

Recommended use:conventions
corporate
training
university

Technical specifications:

                        Dimensions

                        Width
                        Top: 103cm x 54,5cm

                            Side plate: 43cm x 29,5cm

                            Top + Side plate: 143cm

                        Height
                        User side min: 95cm, max: 135,5cm

                            Audience side min: 107,5cm, max: 147,5cm

                        Weight
                        110kg

                            Integration

                        Display & PC
                        Monitor: 24” 10 points capacitive touchscreen

                            PC: MFF PC: Dell OptiPlex, HP Mini, Lenovo Tiny

                            Front Display: 32” Iiyama Prolite Full HD screen with Android player captured in ILS profiles

                        Accessories
                        Audio: 1 x Microphone AKG CGN 99

                            Light: 1 x LITTLITE LED BNC lamp

                        Features
                        Micro PC installation inside working surface

                            Extra space on the right from the display for laptop or notes

                            Ultra Wide Phone/Tablet holder

                            Height adjustment: Motorised Wide Pillar 40cm range height

                            3 x Buttons (2 x Height control; 1 x Light;)

                            Microphone mute button on request

                            1 x Sliding table (right)

                            4 x lockable smart castors or sideway rollers

                        Connectivity

                        Top dashboard

                            1 x 3-Pin XLR Shock Mount for microphone

                            1 x BNC Light socket (12V)

                            2 x USB 3.0 Sockets

                            3 x Charging cables (USB type-C; Lightning; micro USB;)

                            Ultra wide tablet holder for control panels and tablets

                        Side connectivity

                            Laptop connectivity: 4 x Neutrik sockets (type on request)

                            1 x AC Power socket

                        Bottom cabling

                            External display connection 1 x HDMI

                            1 x CAT6 LAN;

                            Microphone output: XLR cable per microphone

                            Laptop connectivity cables passthrough or outputs from integrated AV gear;

                            1 x AC Power Input;

Dimensions
Width	Top: 103cm x 54,5cm Side plate: 43cm x 29,5cm Top + Side plate: 143cm
Height	User side min: 95cm, max: 135,5cm Audience side min: 107,5cm, max: 147,5cm
Weight	110kg
Integration
Display & PC	Monitor: 24” 10 points capacitive touchscreen PC: MFF PC: Dell OptiPlex, HP Mini, Lenovo Tiny Front Display: 32” Iiyama Prolite Full HD screen with Android player captured in ILS profiles
Accessories	Audio: 1 x Microphone AKG CGN 99 Light: 1 x LITTLITE LED BNC lamp
Features	Micro PC installation inside working surface Extra space on the right from the display for laptop or notes Ultra Wide Phone/Tablet holder Height adjustment: Motorised Wide Pillar 40cm range height 3 x Buttons (2 x Height control; 1 x Light;) Microphone mute button on request 1 x Sliding table (right) 4 x lockable smart castors or sideway rollers
Connectivity
Top dashboard	1 x 3-Pin XLR Shock Mount for microphone 1 x BNC Light socket (12V) 2 x USB 3.0 Sockets 3 x Charging cables (USB type-C; Lightning; micro USB;) Ultra wide tablet holder for control panels and tablets
Side connectivity	Laptop connectivity: 4 x Neutrik sockets (type on request) 1 x AC Power socket
Bottom cabling	External display connection 1 x HDMI 1 x CAT6 LAN; Microphone output: XLR cable per microphone Laptop connectivity cables passthrough or outputs from integrated AV gear; 1 x AC Power Input;
