ILS Synergy UT

Improve your presentation delivery. Present with ease and confidence.

ILS Synergy UT

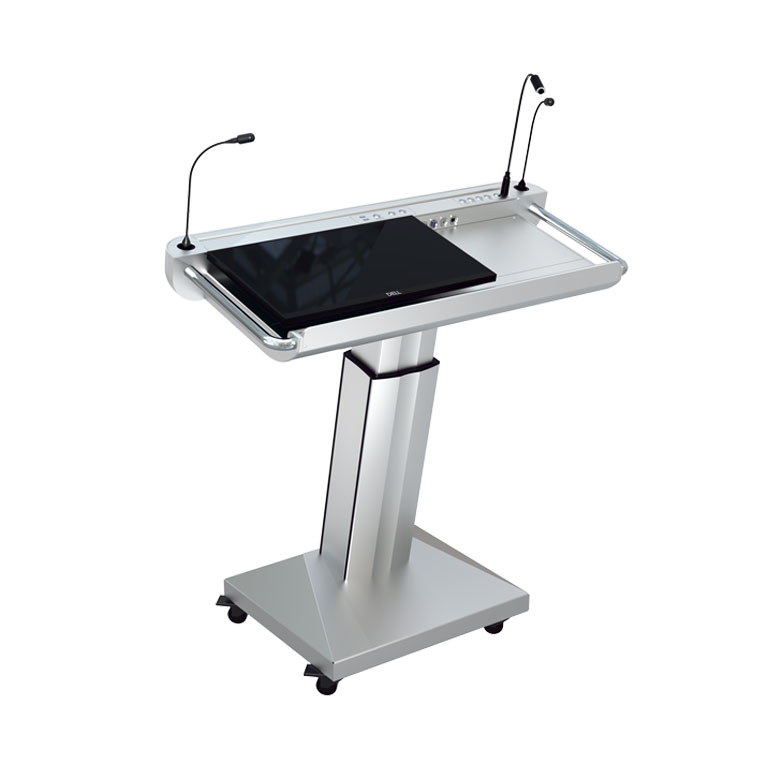

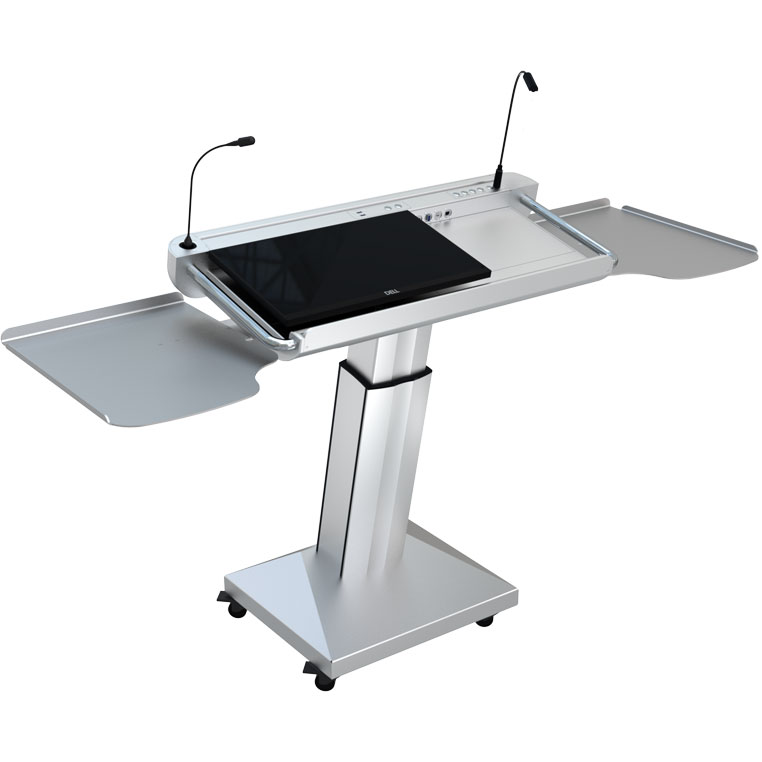

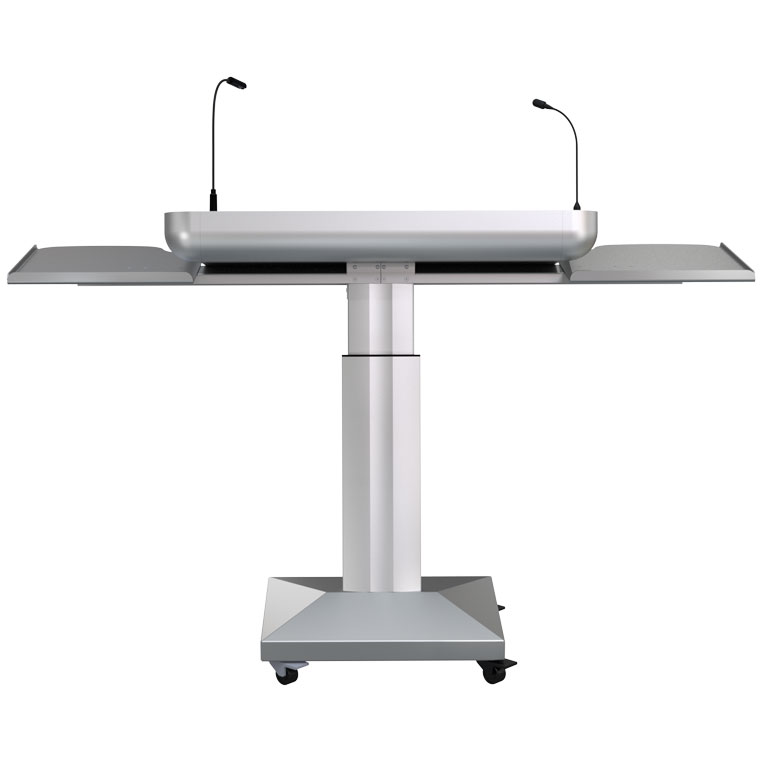

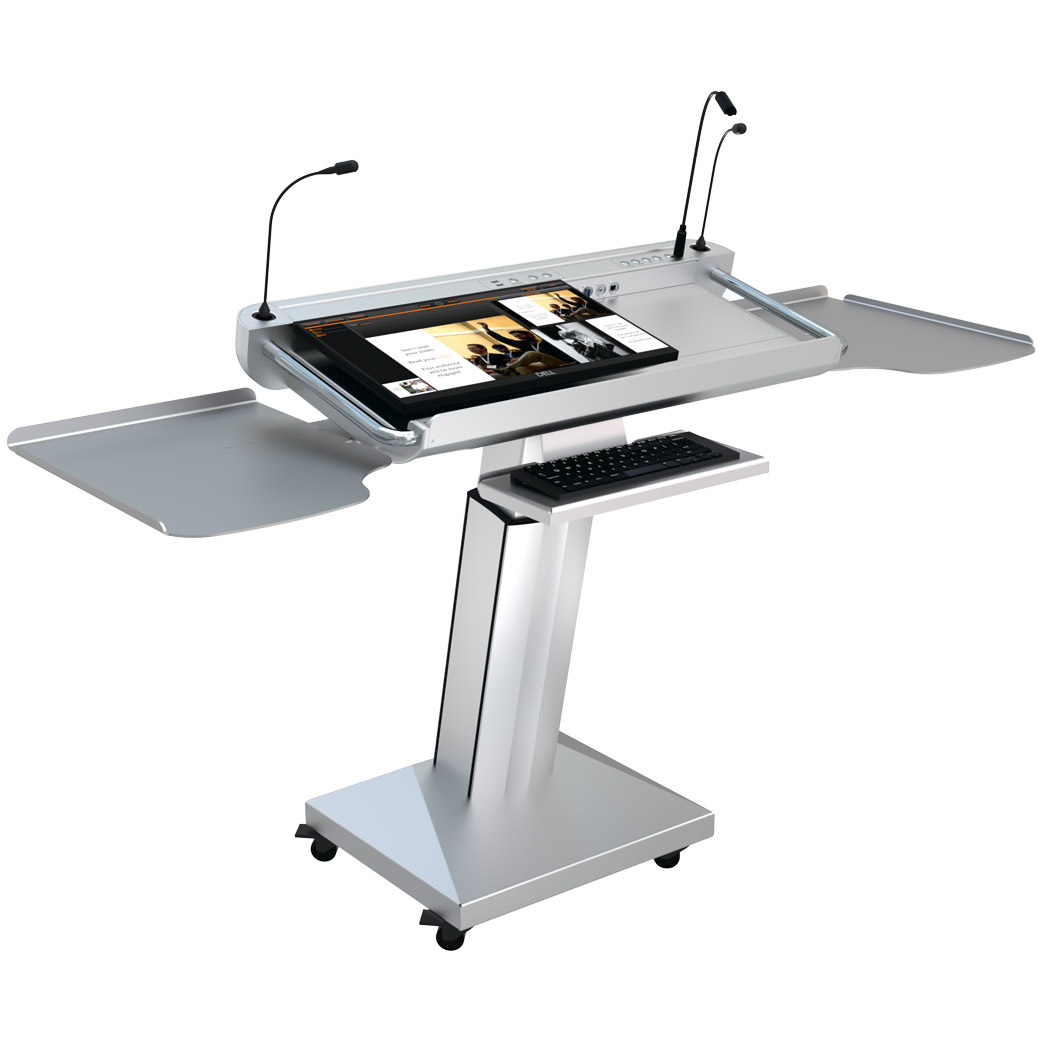

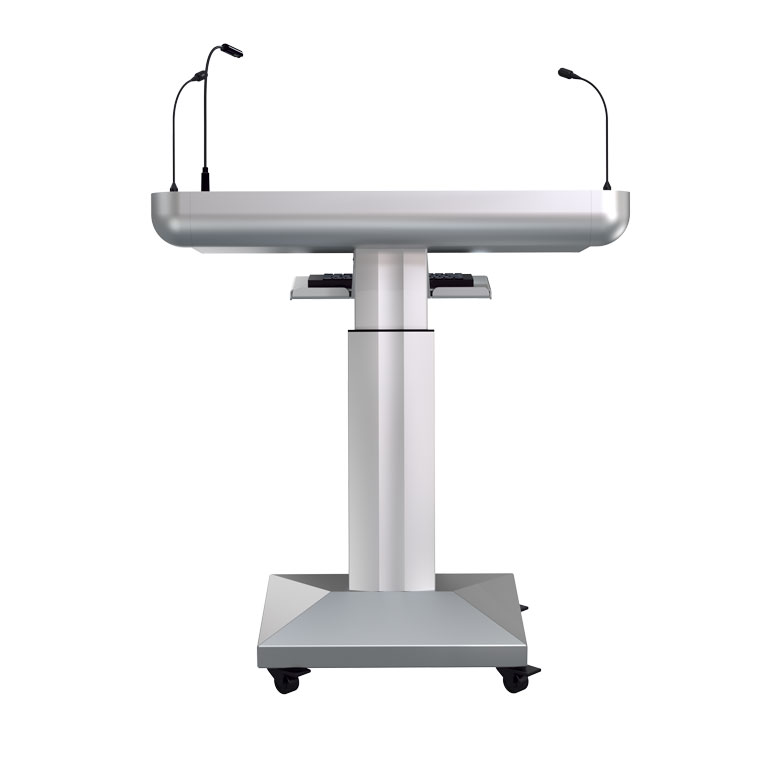

ILS Synergy UT delivers ILS quality with a smart design. The solid top of the lectern is placed on a motorized narrow pillar with a height adjustment range up to 40 cm (15 ”+). Two buttons will help you to control it. In the lowest position, a seated person can freely use the system.

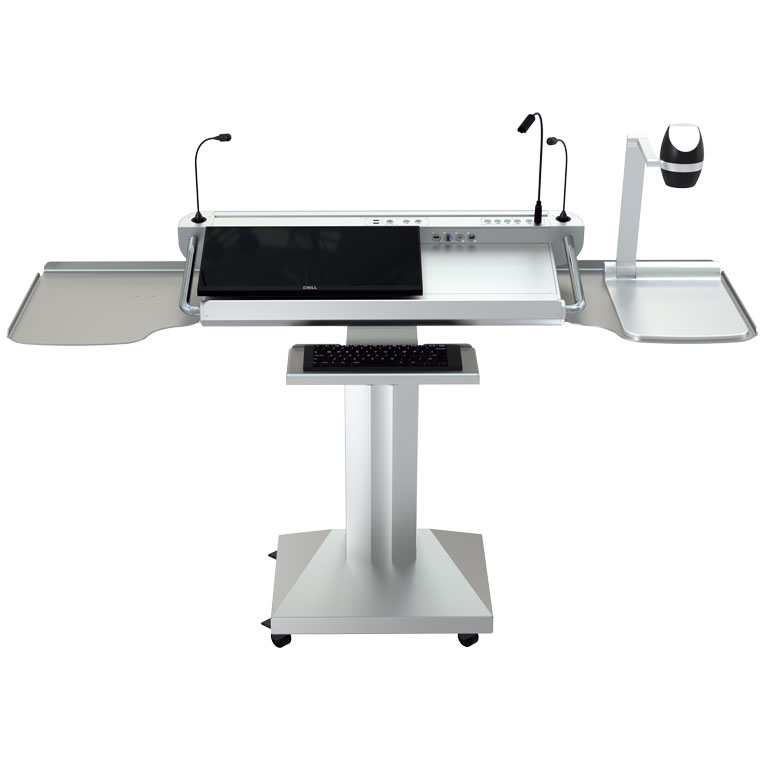

Long version of the top is divided into two working areas. On the left, the integrated VESA mount allows the installation of a monitor up to 24”. On the right, a smooth aluminum surface for handwritten notes, or laptop. A holder for the micro PC is installed inside the working surface. This lectern also provides two horizontal side tables moving up or down with the top. This makes it possible to use extra space for handwritten notes, laptop, or place a document camera on it. The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product.

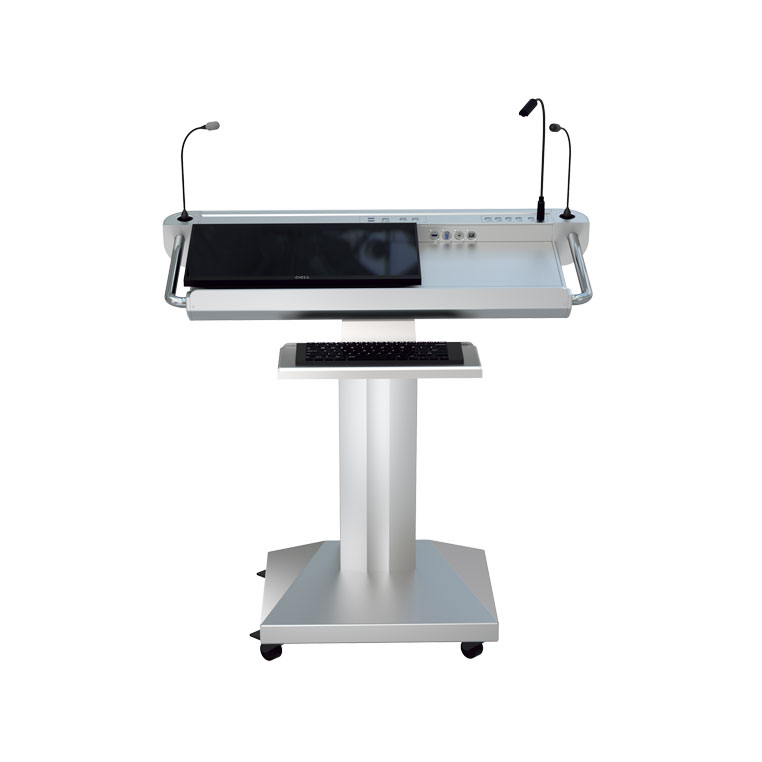

There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. Additionally, for greater convenience, a keyboard tray can be integrated.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the extra front panel of the lectern, in case of using the system in formal events!

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Top: 1030cm
Side plate: 39,5cm x 55,5cm
Top + Side plate: 177cm
Height User side min: 77,5cm, max: 118cm
Audience side min: 87cm, max: 127,5cm
Weight 85kg
Integration
Display & PC Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen
PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories Audio: 1 x Microphone AKG CGN 99
Light: 1 x LITTLITE LED BNC lamp
Features VESA 100x100 mount to hold a monitor up to 24”
ILS holder for micro PC installation inside working surface
Extra space on the right from the display for laptop or notes
7 x Buttons (2 x Height control up to 40cm range; 1 x Light; 4 x Signal switch;)
2 x Large side tables
4 x lockable smart castors or sideway rollers
Connectivity
Top dashboard 1 x 3-Pin XLR Shock Mount for microphone
1 x BNC Light socket (12V) for the reading light
(1 x extra shock mount 3-Pin XLR pin socket for microphone can be added)

Integrated computer expansion ports:
2 x USB Sockets for external USB devices

Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity ILS503 Switcher or 4 x sockets (type on request)
Bottom cabling External display connection 1 x HDMI and/or 1 x HDbaseT
Microphone output: XLR cable per microphone
1 x 3,5mm Audio
1 x AIO PC LAN
1 x Switcher Control
1 x AC Power
