ILS Synergy DW

Be future proof! The Synergy DW holds a 23"-27" All in One Touch PC.

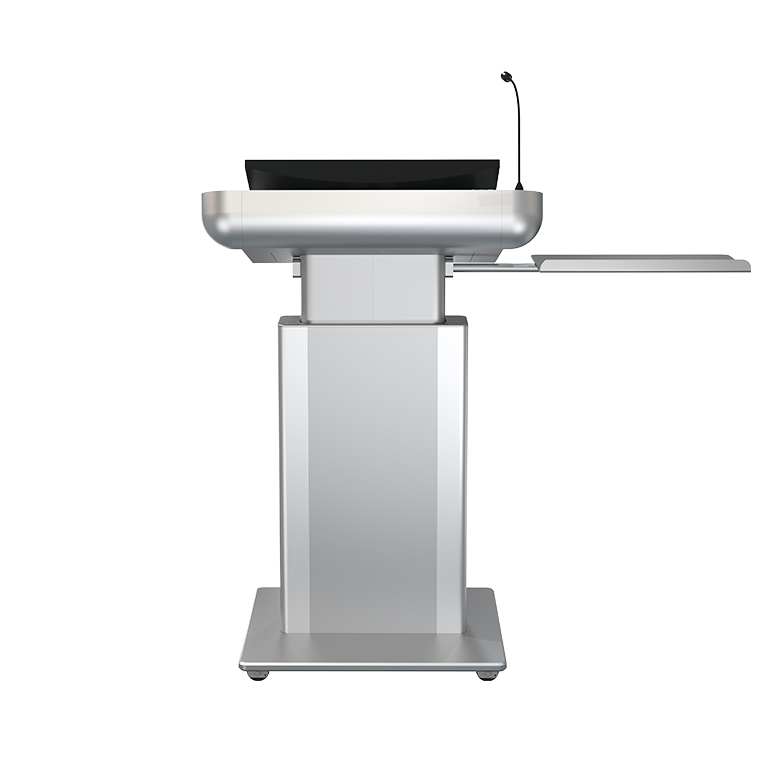

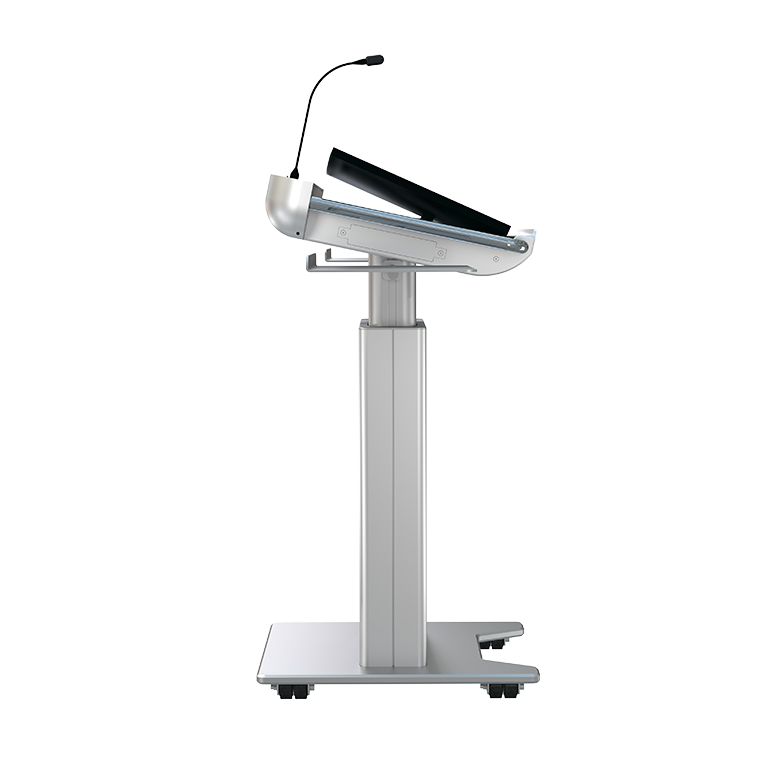

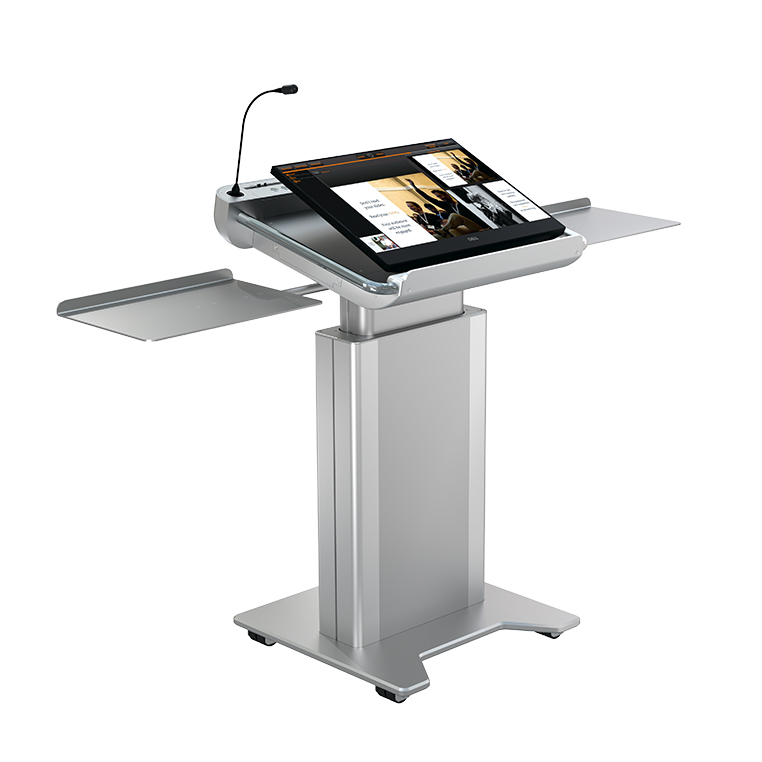

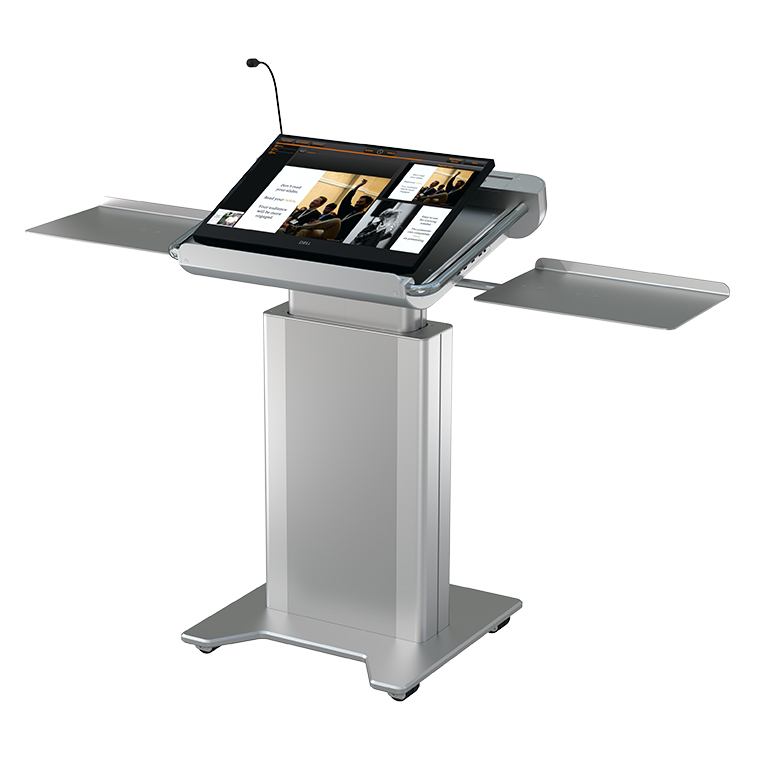

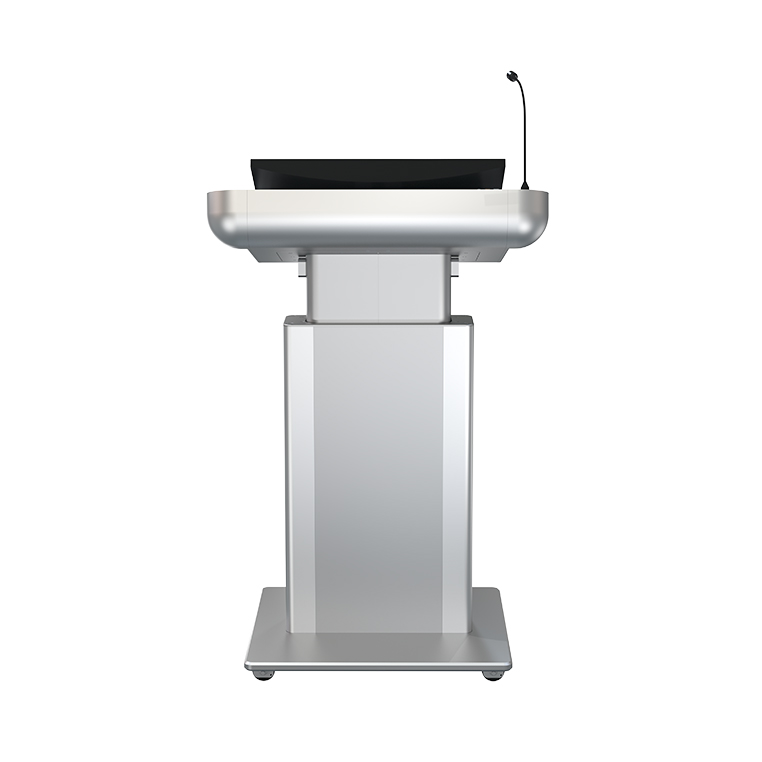

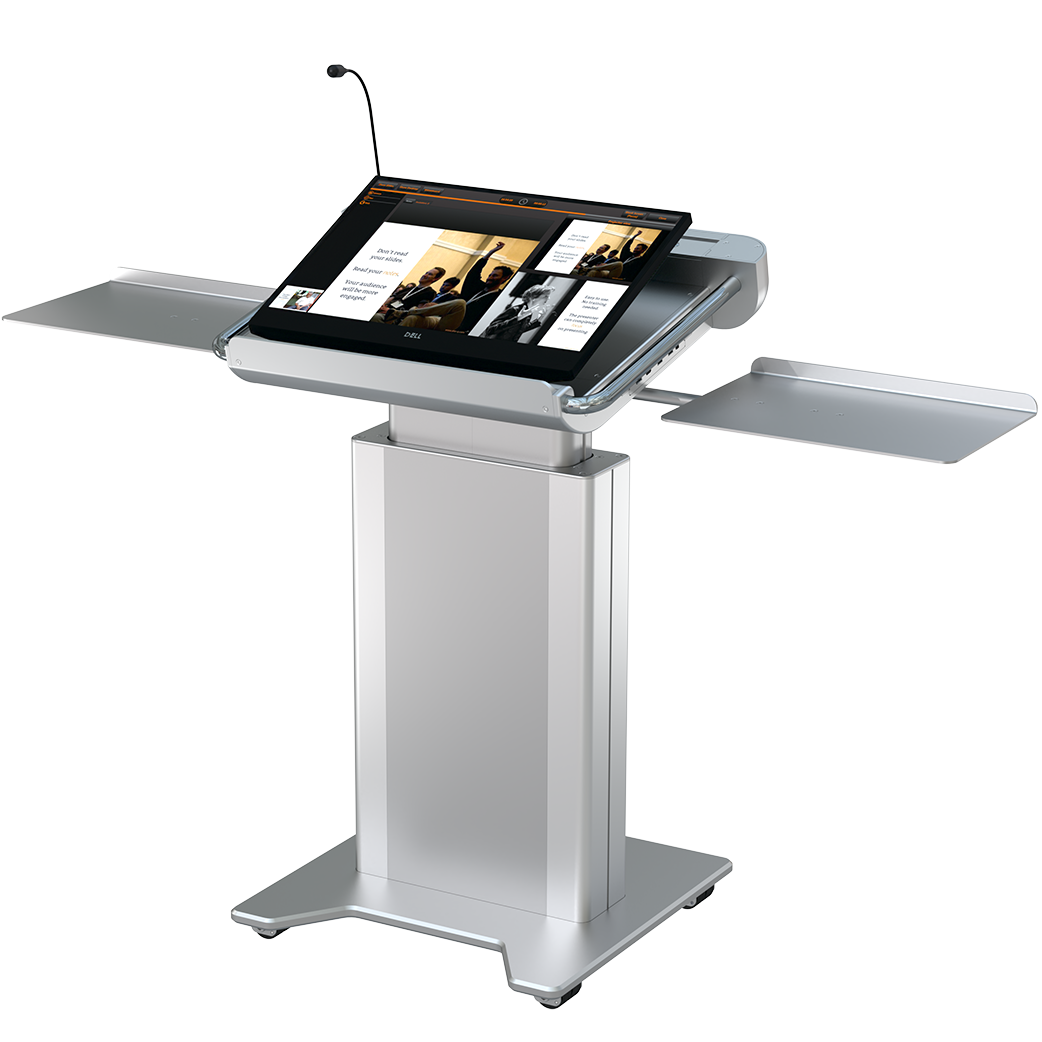

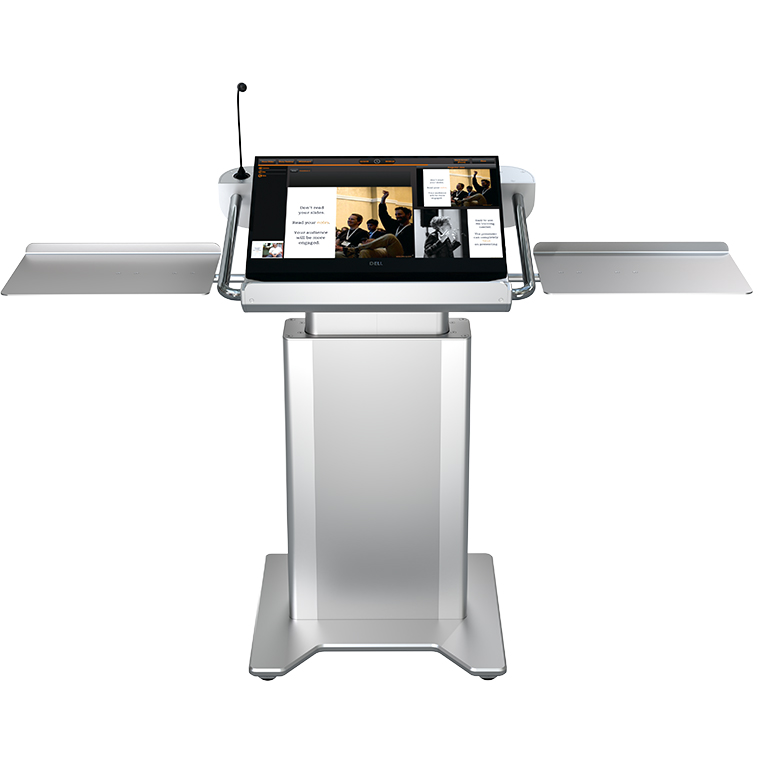

ILS Synergy DW delivers ILS quality combined with a smart design. The solid top of the lectern is placed on a motorized wide pillar with a height adjustment range up to 40 cm (15 ”+). Two buttons will help you to control it. In the lowest position, a seated person can freely use the system.

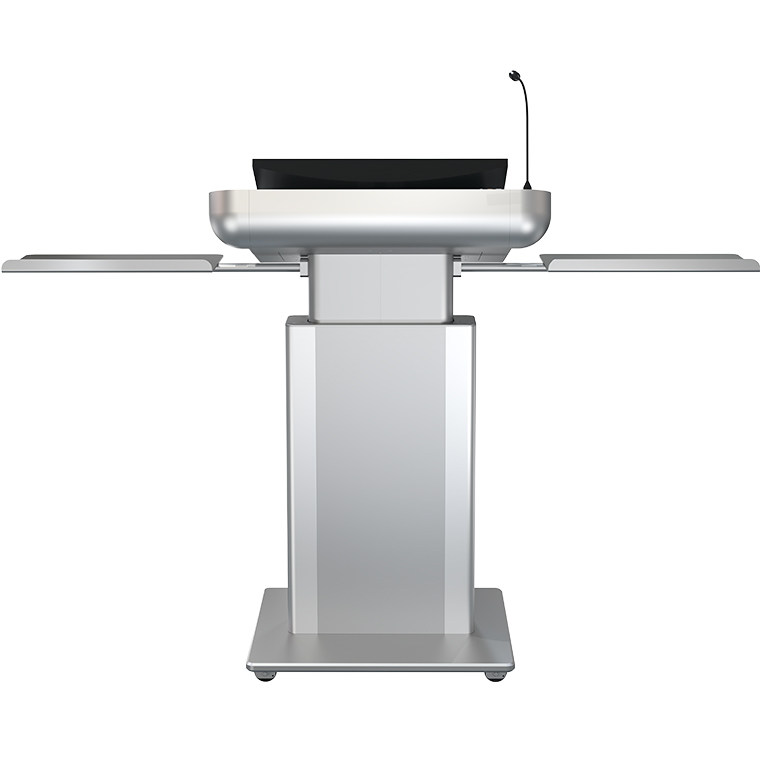

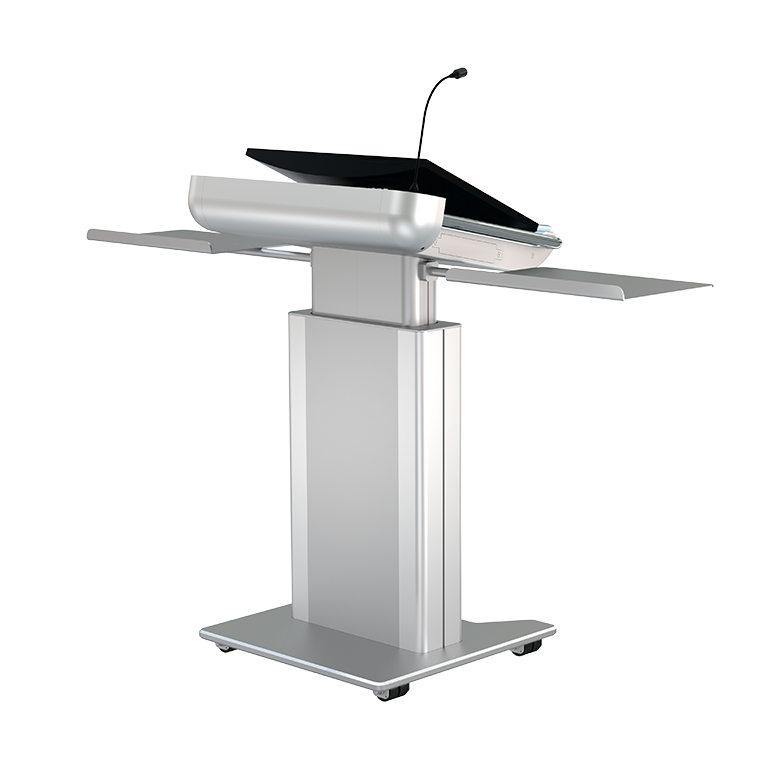

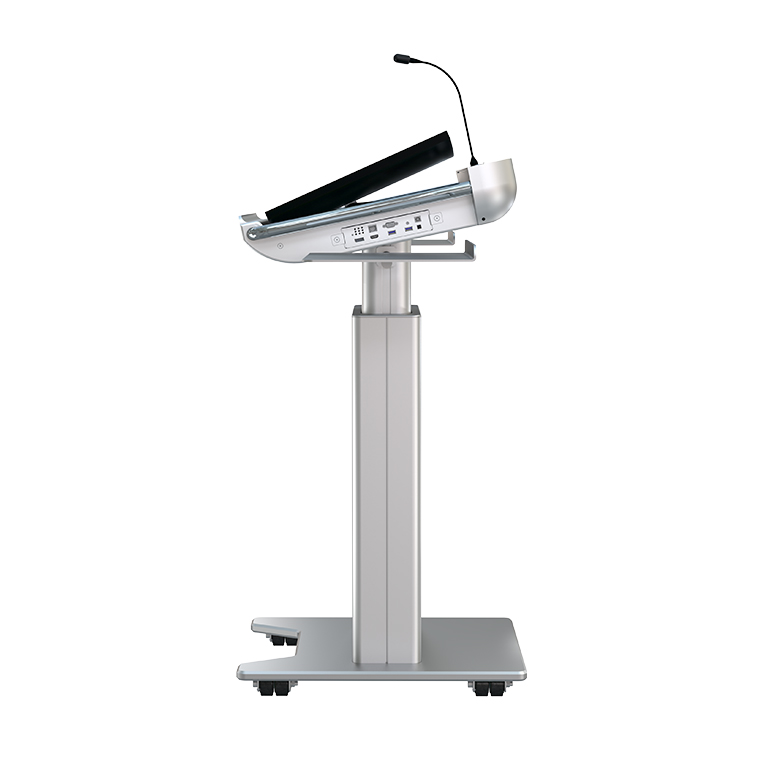

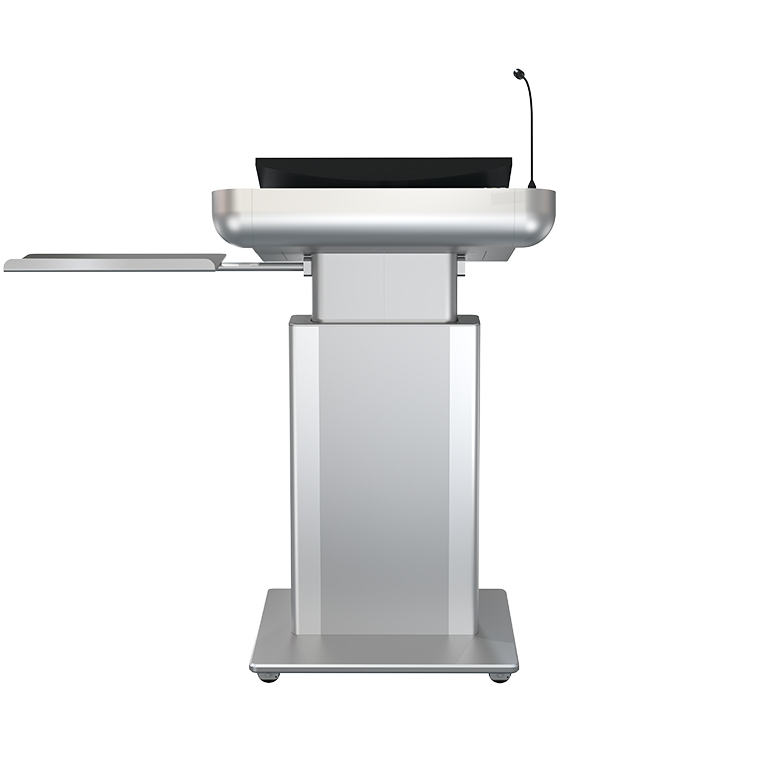

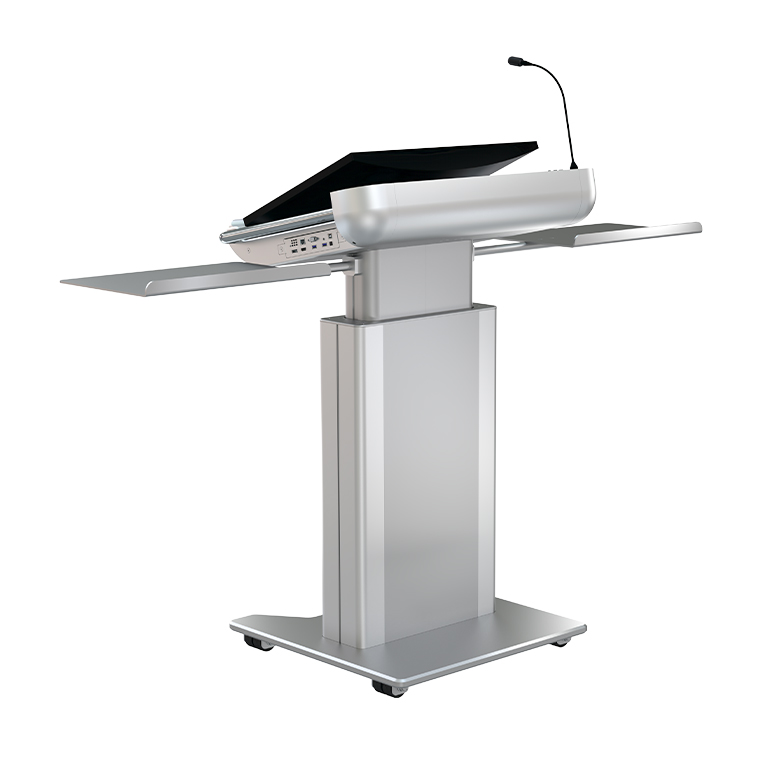

The Synergy DW is the ideal smart solution for PC presentation. An AIO PC holder is installed inside the working surface. This lectern also provides two horizontal side tables moving up / down with the top. This makes it possible to use handwritten notes, laptop, or place a document camera on it. The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product. There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type.

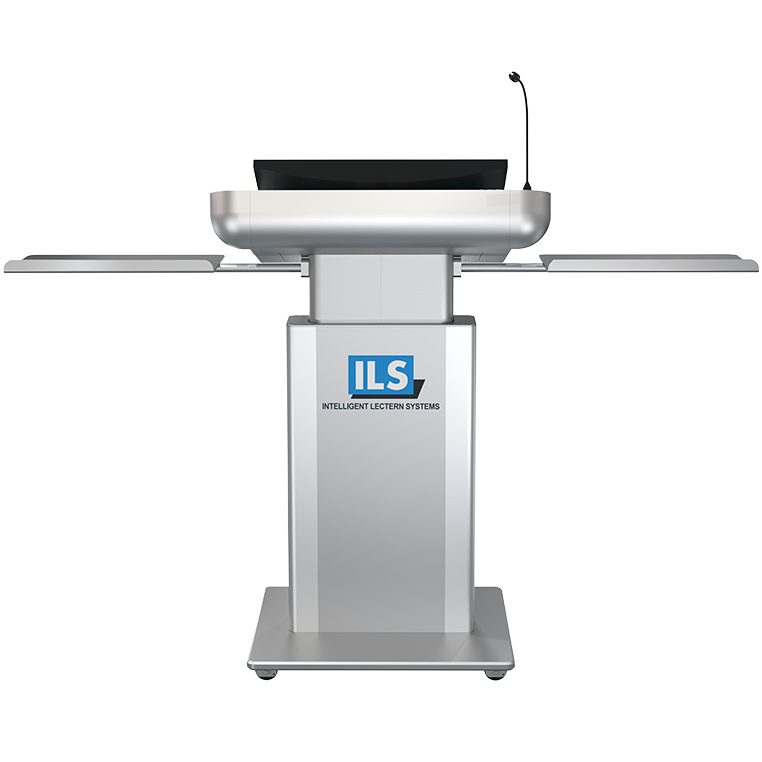

For mobility and rock-solid stability of the lectern during the presentation, four side-ways rollers are embedded in the bottom plate. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:

  • conventions
  • corporate
  • training
  • university

Technical specifications:

Dimensions
Width Top: 72cmm x 53,5cm
Side Plate: 450cm x 29,5cm
Top + 2 Side Plates: 161,5cm
Height User side min: 87cm, max: 127cm
Audience side min: 98cm, max: 138cm
casters add 5cm
Weight 80kg
Integration
Display & PC AIO PC on articulating stand: 24” Dell Optiplex 7480 Intel Core I-5 CPU; 16GB RAM; 256GB SSD;
Accessories Audio: 1 x Microphone AKG CGN 99
Features ILS holder for AIO PC on articulating stand
6 x Buttons (2 x Height control up to 40cm range; 4 x Signal switch;)
2 x Side tables
4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard 1 x 3-Pin XLR Shock Mount for microphone
1 x extra shock mount 3-Pin XLR pin socket for microphone
(or 1 x regular mount 4-Pin XLR socket for the reading light)

Integrated computer expansion ports:
2 x USB Sockets for external USB devices

Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity ILS503 Switcher or 4 x sockets (type on request)
Bottom cabling External display connection 1 x HDMI and/or 1 x HDbaseT
Microphone output: XLR cable per microphone
1 x 3,5mm Audio
1 x AIO PC LAN
1 x Switcher Control
1 x AC Power
