ILS Synergy IM

Improve your presentation delivery. Present with ease and confidence.

Synergy IM

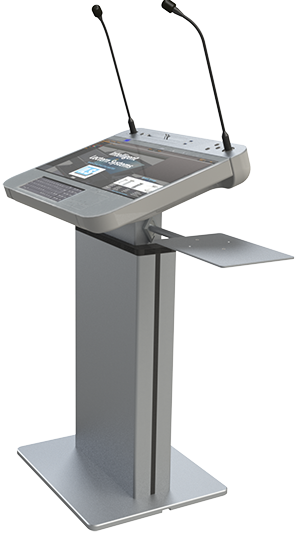

The Synergy IM features a 31" multi-frame multi-touch capacitive glass surface, that covers a 29" monitor. Designed for upscale boardrooms, showrooms and prestigious events, the new Synergy IM uses the same proven multi-touch glass technology as our previous ILS22 generation. This seamless sheet of 5 mm safety glass offers 10 point multitouch with an integrated 29” ultrawide 2560x1080 display, a 12” control panel, a trackpad and a multifunctional keyboard with changing key layouts. The keyboard is fully customizable, our ILS Control Software can display virtually any keyboard layout.

Recommended use:

  • conventions
  • corporate
  • training
  • university

Connectivity:

Top dashboard comes with 2 x XLR microphone sockets:

  • One XLR socket is 3-Pin shock mount microphone socket.
  • Second can be configured as 3-Pin XLR for second microphone or 4-Pin for reading light.

Pedestal Up/Down buttons and 2 x USB sockets.
Horizontal side tables, a HDMI switcher, VGA connector loop-through.

Technical specifications:

Dimensions
Width No side plates: 42cm pillar, 70cm top
With side plates: 156cm top
side plate size: 36cm x 26cm
Height User side min: 94cm, max: 120cm
Audience side min: 114cm, max: 140cm
casters add 7cm
Weight 70kg
Integration
Computer Support 29” 21:9 IPS Display
12” Touch Keyboard and Control Panel
Configurable industrial Mini-ITX motherboard with latest
Intel® Core™ processor
Audio 1 x shock mount XLR socket
1 x regular mount XLR-3 pin Socket for microphone
(or 1 x regular mount XLR-4 pin for the reading light)
Optional 4 speakers integrated into the top with 280W amplifier.
Connectivity
Side connectivity panel Laptop connectivity: HDMI, DP, VGA and 3.5 Audio, Ethernet
Integrated computer expansion ports:
2 x USB Sockets for external USB devices
Top dashboard 8” wide tablet holder for control panels and tablets with integrated Apple Lightning and/or Micro USB charging plugs Integrated computer expansion ports: 2 x USB Sockets for external USB devices
Bottom cabling Second display connection HDMI of integrated computer
HDMI, DP, VGA and 3.5 Audio cables from connectivity side panel or integrated 4x1 HDMI switcher with one HDMI/CAT6 output cable in the bottom.
Ethernet, Power, Microphone output: XLR cable per microphone
