ILS Synergy QW
Improve your presentation delivery. Present with ease and confidence.
Datasheets
- ILS Synergy QW Datasheet (PDF)
Order Form

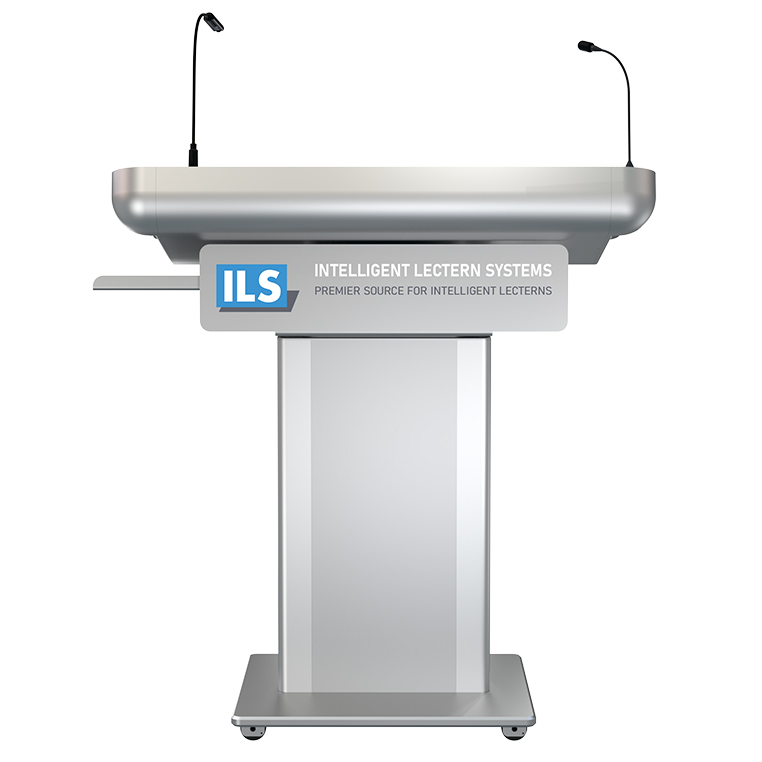

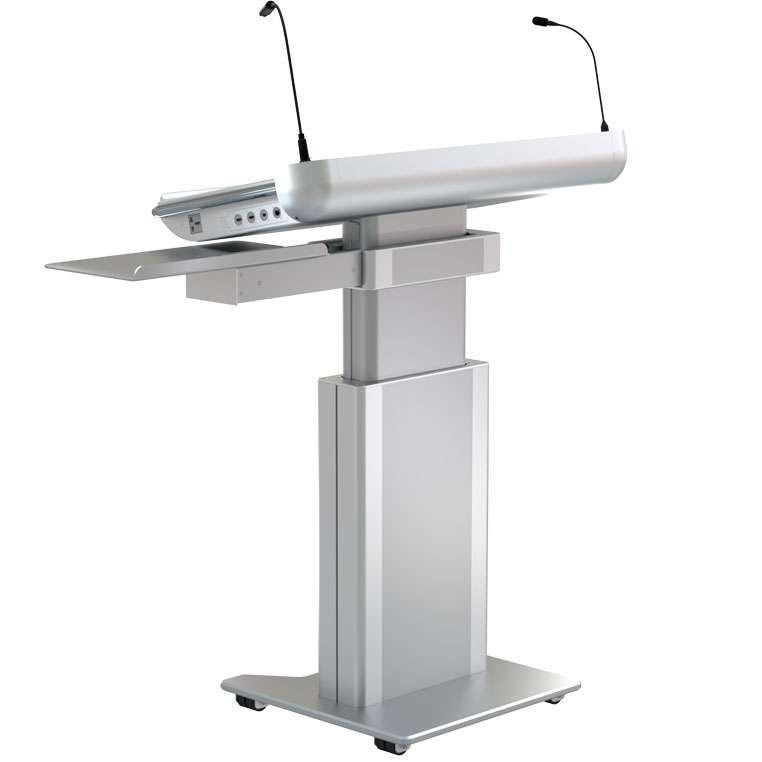

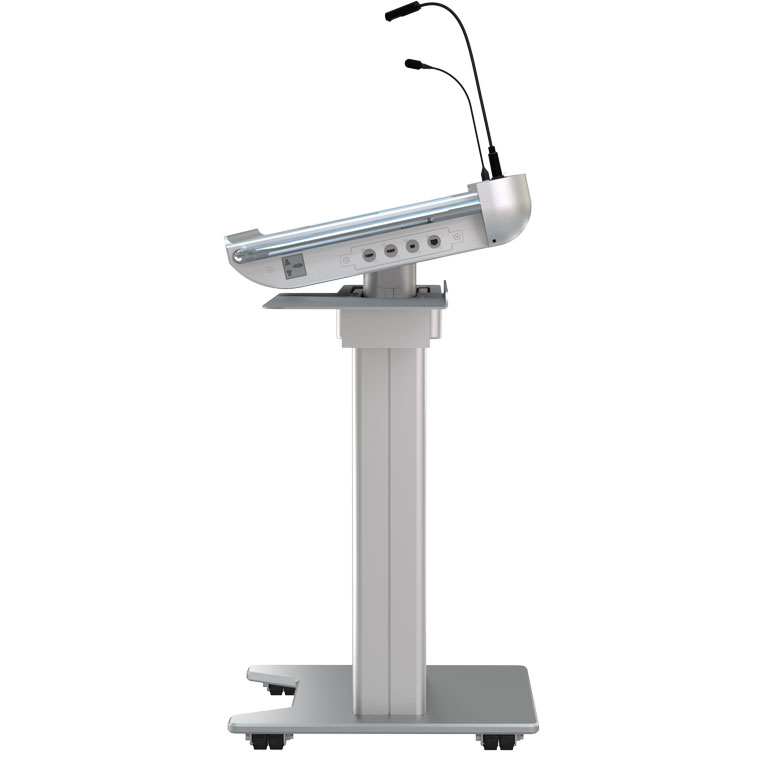

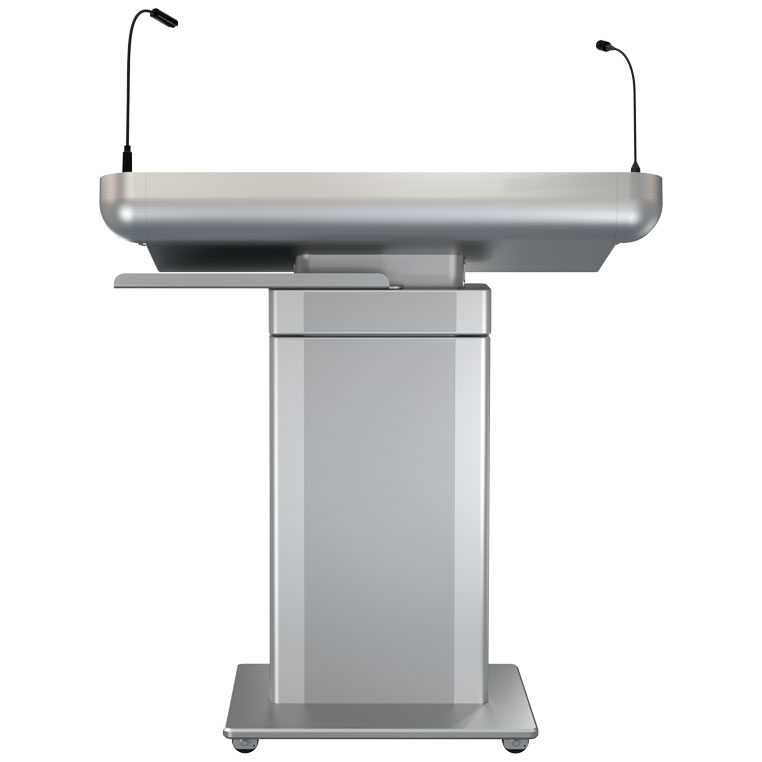

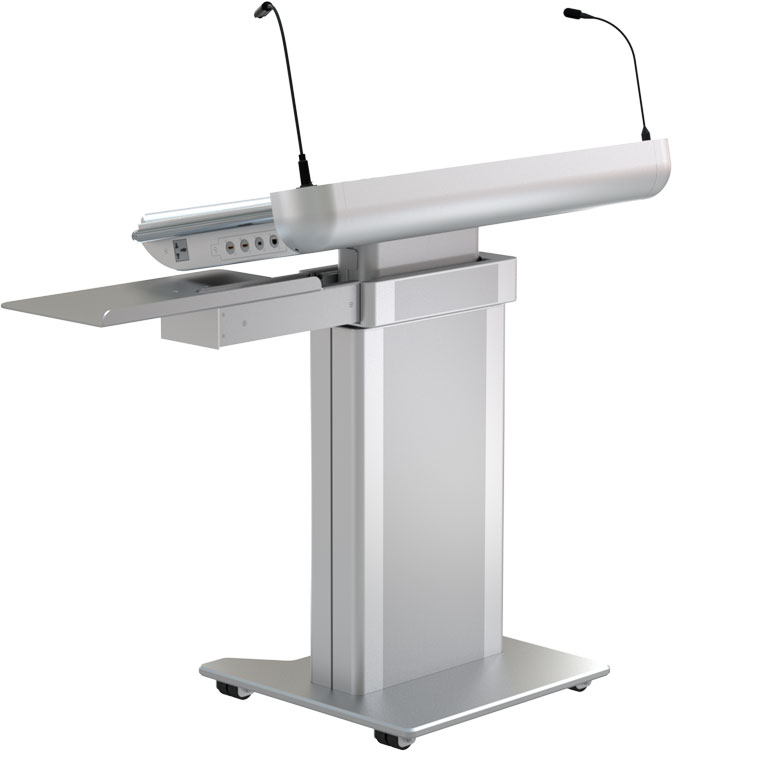

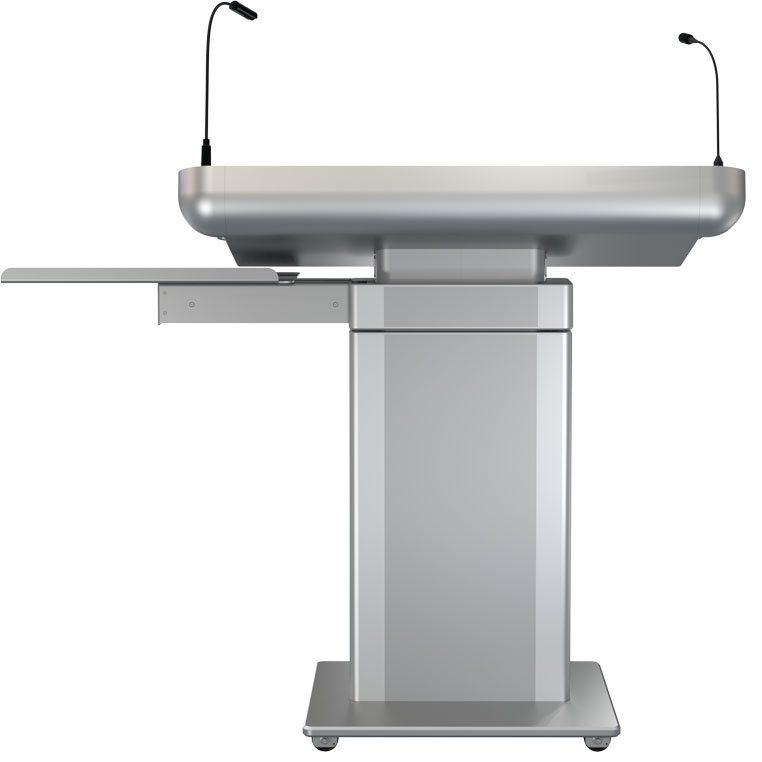

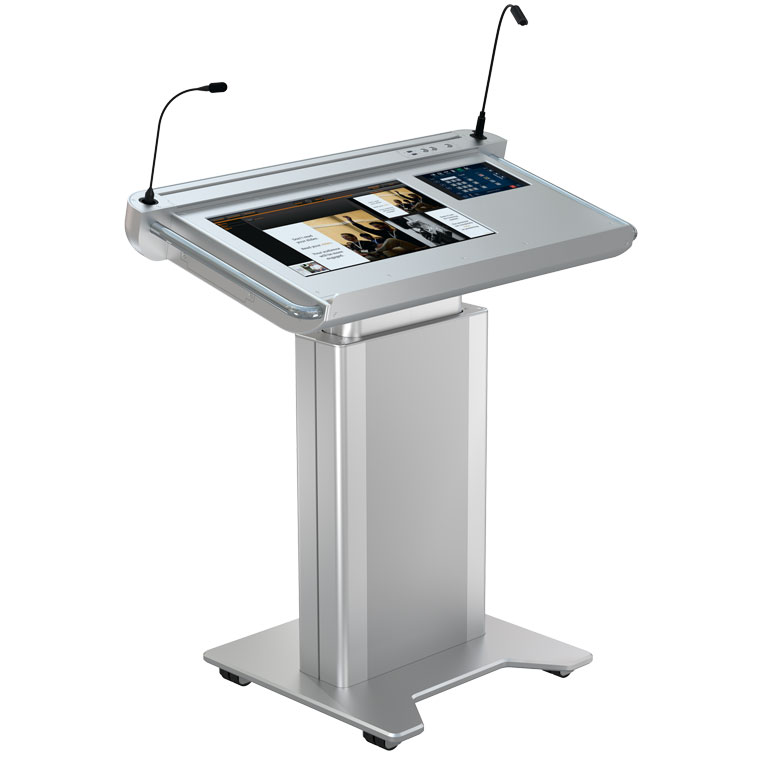

ILS Synergy QW delivers ILS quality with a smart design. The solid top of the lectern is placed on a motorized wide pillar with a height adjustment range up to 40 cm (15 ”+). Two buttons will help you to control it.

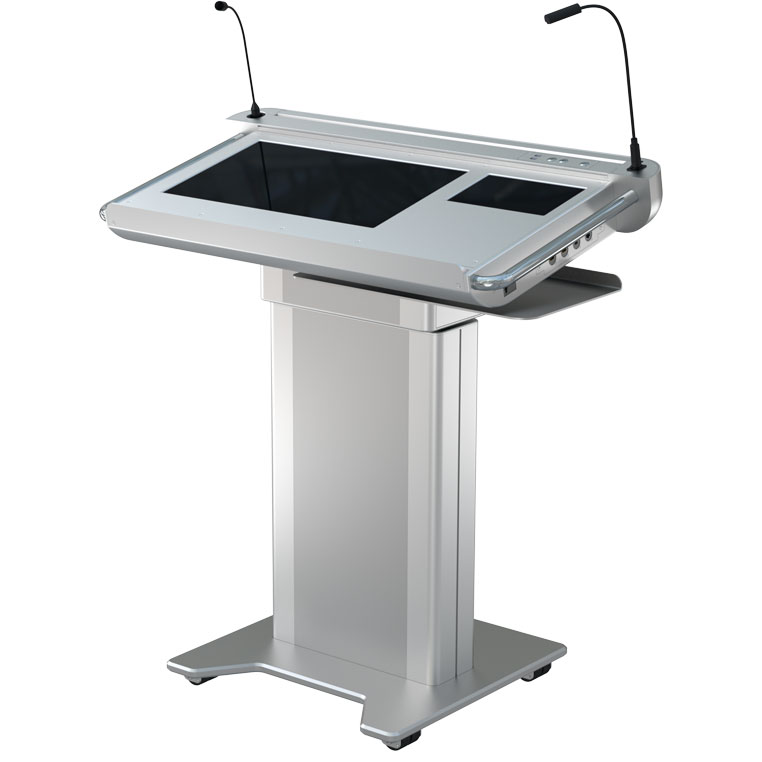

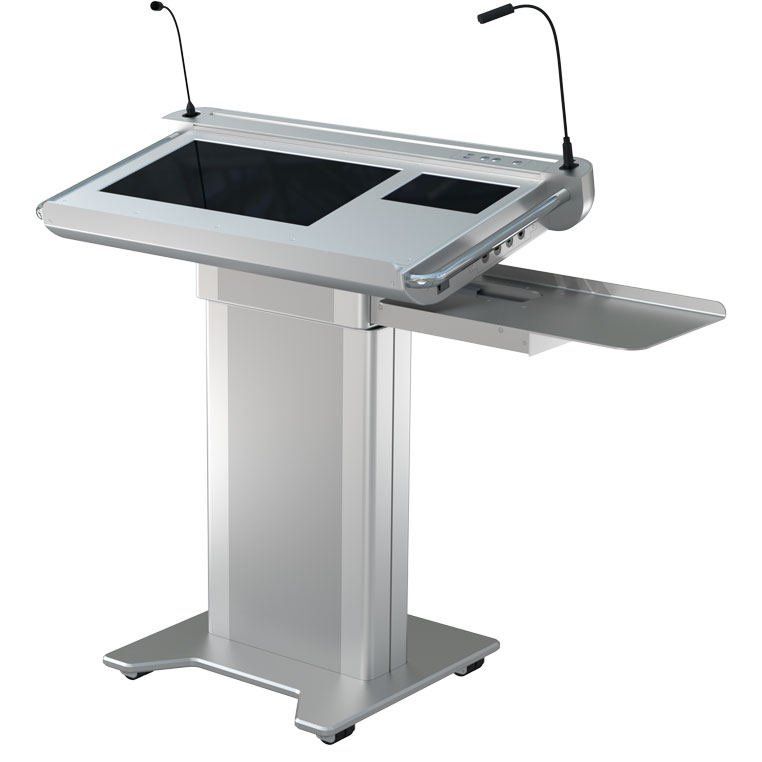

Long version of the top is divided into two working areas. On the left is a monitor 24”, mounted inside the working surface. On the right is a smooth aluminum surface for handwritten notes, laptop or installed control panel. A holder for the micro PC is installed inside the working surface. This lectern also provides one sliding horizontal side table moving up or down with the top. This makes it possible to use extra space for handwritten notes, laptop, or place a document camera on it.
The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product. There are also AC power socket and two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. Additionally, for greater convenience, a keyboard tray can be integrated.
For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the extra front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 1030cm x 545cm Side plate: 43cm x 29,5cm Top + Side plate: 143cm |
| Height | User side min: 95cm, max: 135,5cm Audience side min: 107,5cm, max: 148cm |
| Weight | 85kg |
| Integration | |
| Display & PC | Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen (Up to 30”) PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD; |
| Accessories | Audio: 1 x Microphone AKG CGN 99 Light: 1 x LITTLITE LED BNC lamp |
| Features | ILS holder for micro PC installation inside working surface Extra space on the right from the display for laptop or notes <27” monitor 7 x Buttons (2 x Height control up to 40cm range; 1 x Light; 4 x Signal switch;) 2 x Large side tables 4 x lockable smart castors or sideway rollers |
| Connectivity | |
| Top dashboard |
1 x 3-Pin XLR Shock Mount for microphone 1 x BNC Light socket (12V) for the reading light (1 x extra shock mount 3-Pin XLR pin socket for microphone can be added) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) |
| Side connectivity |
ILS503 Switcher or 4 x sockets (type on request) 1 x AC Power socket |
| Bottom cabling |
External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power |
