Intelligent Lectern Systems - Synergy ST Lectern

ILS Synergy ST

Improve your presentation delivery. Present with ease and confidence.

                Datasheets
                ILS Synergy ST Datasheet (PDF)

                Order Form
                ILS SYNERGY Narrow Pillar order form (PDF)

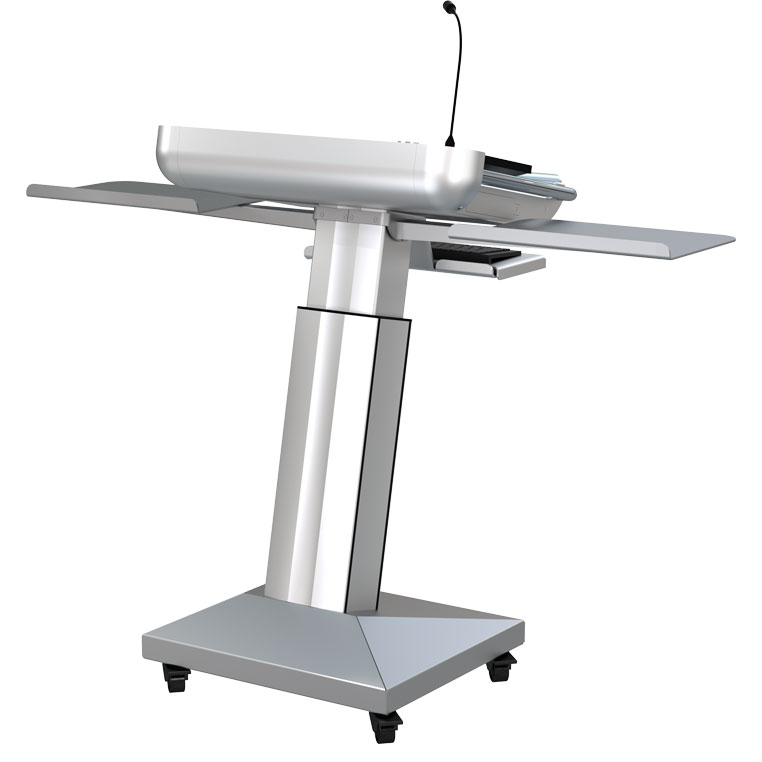

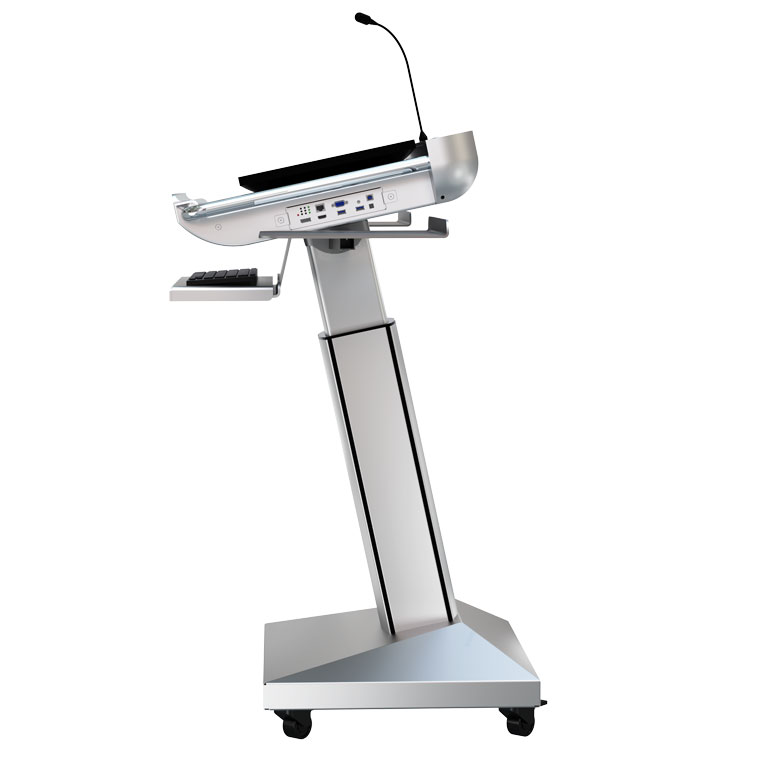

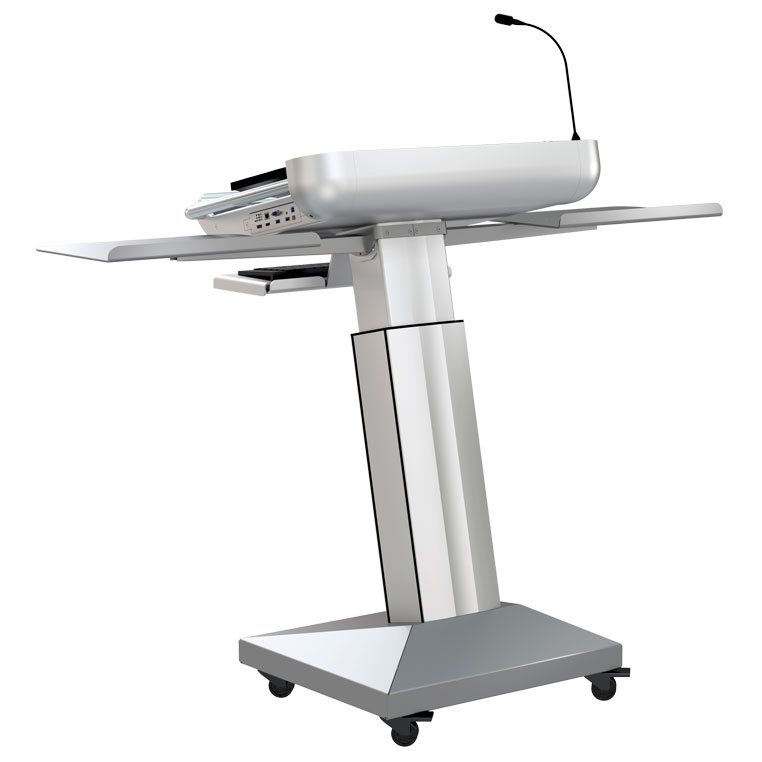

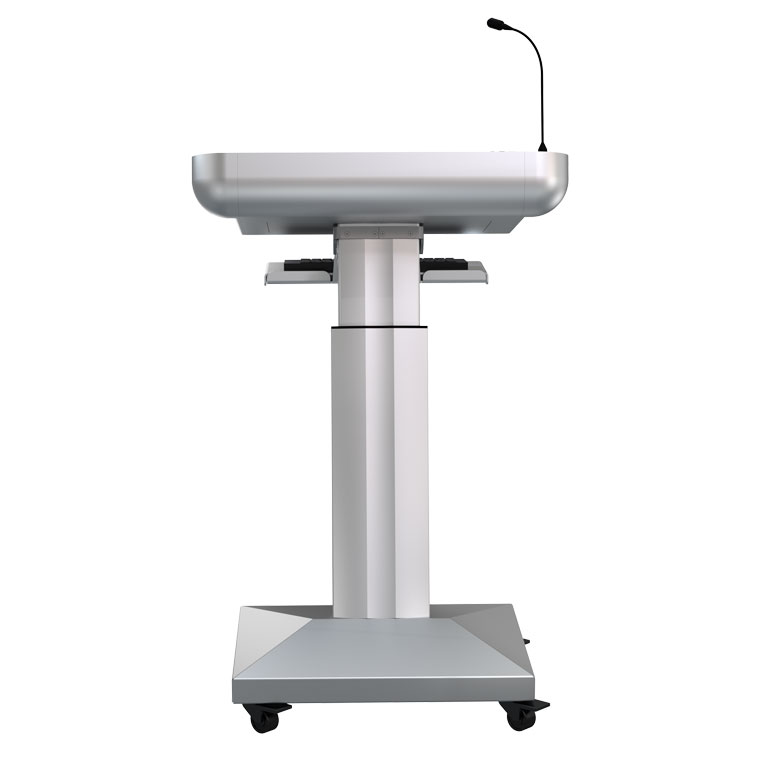

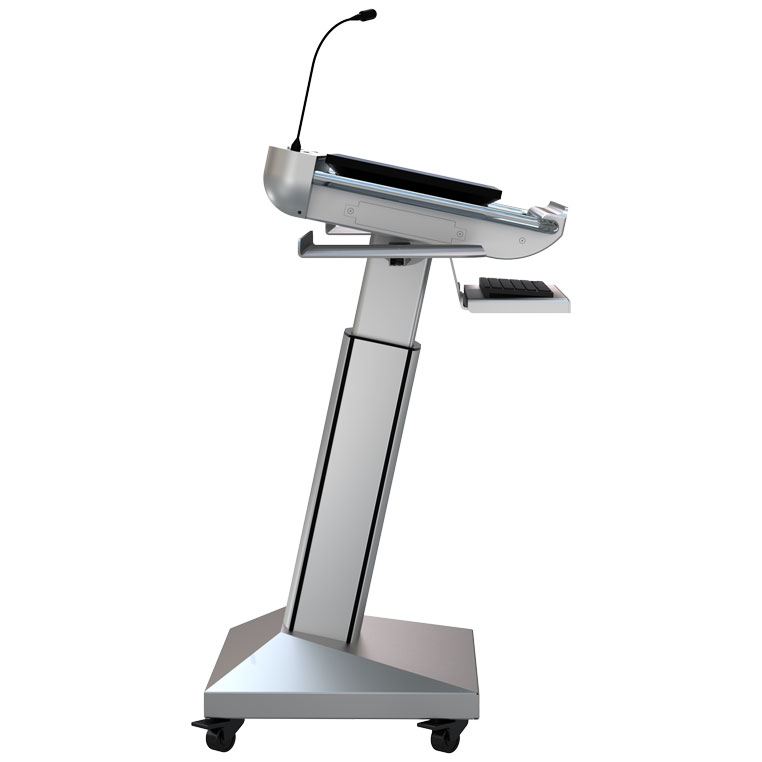

ILS Synergy ST delivers ILS quality with a smart design. The solid top of the lectern is
                    placed on a motorized narrow pillar with a height adjustment range up to 40 cm (15”+).
                    Two buttons will help you to control it. In the lowest position, a seated person
                    can freely use the system.

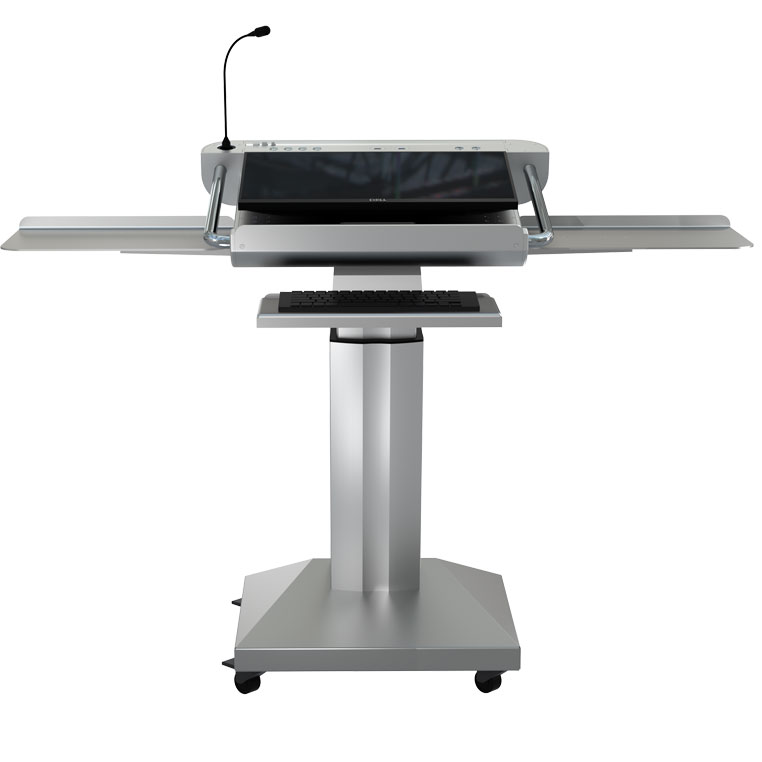

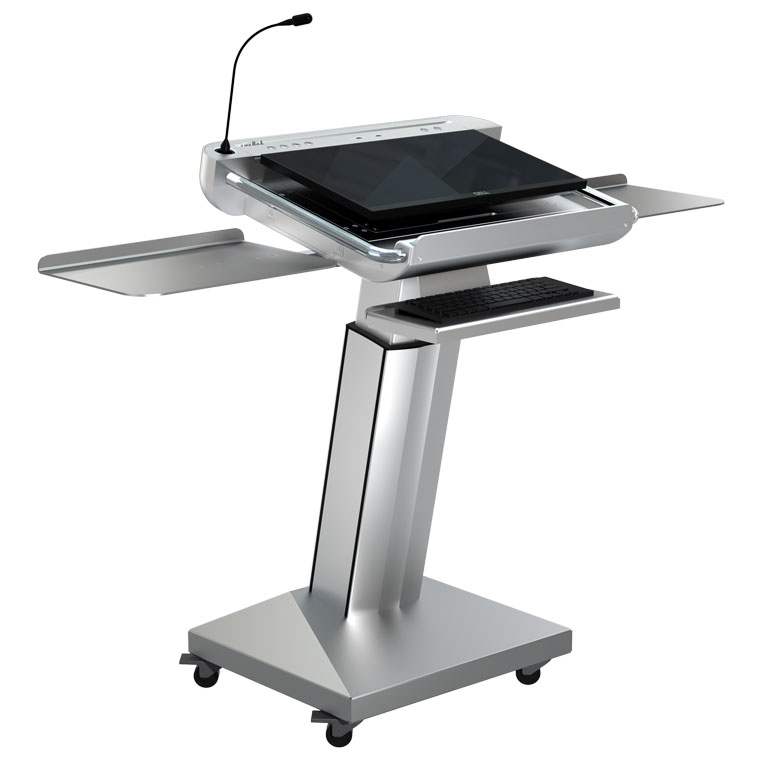

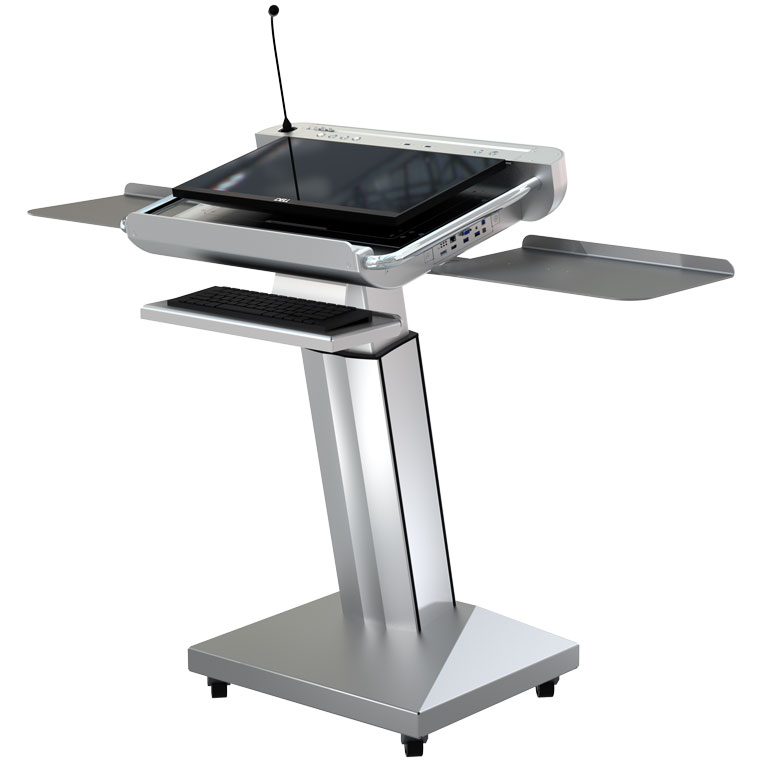

A holder for the micro PC is installed inside the working surface, and the integrated VESA

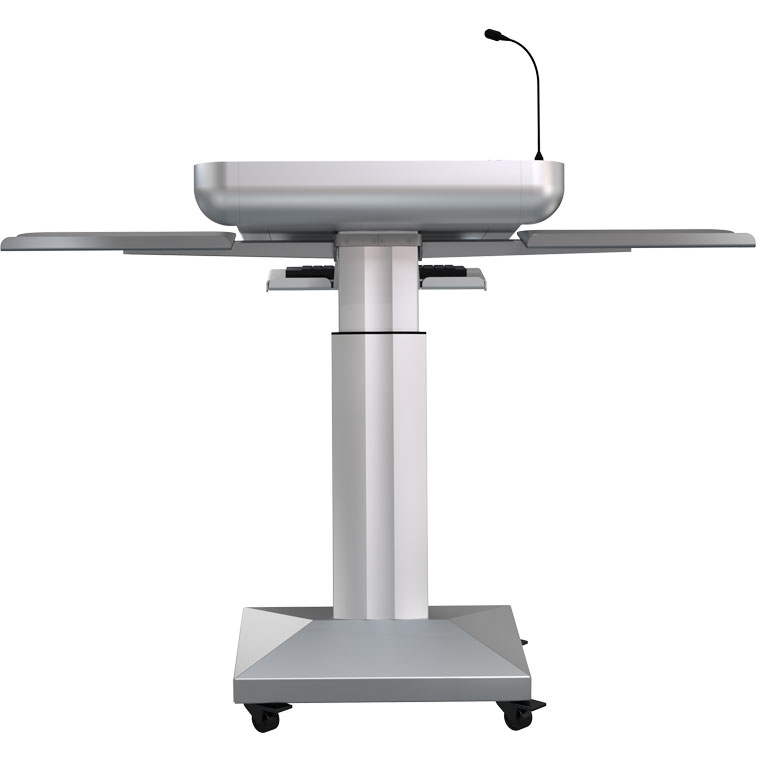

                    mount allows the installation of a monitor up to 27”. This lectern also provides two horizontal
                    side tables moving up or down with the top. This makes it possible to use extra space for
                    handwritten notes, laptop, or place a document camera on it. The built-in switcher or four
                    sockets with the type on request will be great helpers when handling connections between
                    the main screen of the lectern and/or laptop, or other devices. To do this, there are four
                    buttons on the top panel of the product.

                    There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the
                    XLR shock-mount type. Additionally, for greater convenience, a keyboard tray can be integrated.

                    For ease of movement and stability of the lectern during the presentation, four lockable

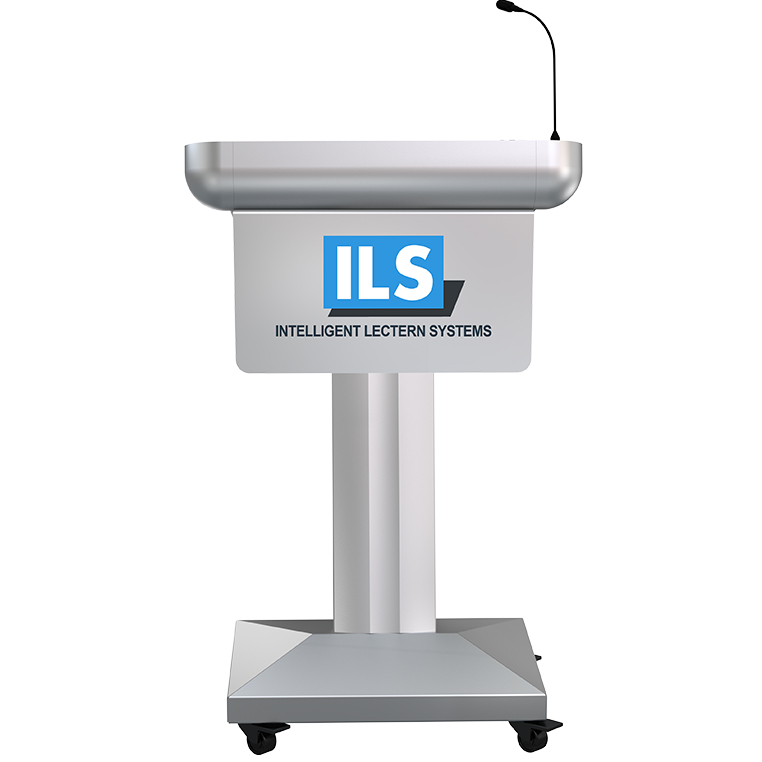

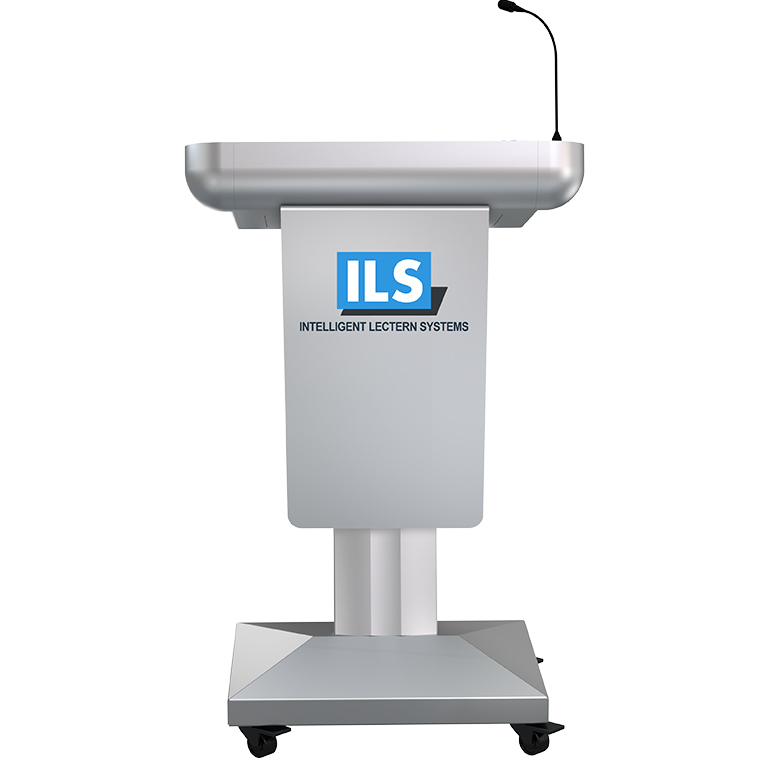

                    smart castors are provided. In addition, we will be pleased to engrave your logo on the extra
                    front panel of the lectern, in case of using the system in formal events!

Recommended use:conventions
corporate
training
university

Technical specifications:

                        Dimensions

                        Width
                        Top: 72cm x 53,5cm

                            Side plate: 29,5cm x 45cm

                            Top + Side plate: 1480cm

                        Height
                        User side min: 86cm, max: 125cm

                            Audience side min: 97cm, max: 136cm

                        Weight
                        70kg

                            Integration

                        Display & PC
                        Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen

                            PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;

                        Accessories
                        Audio: 1 x Microphone AKG CGN 99

                        Features
                        VESA 100x100 mount to hold a monitor up to 27”

                            ILS holder for micro PC installation inside working surface

                            6 x Buttons (2 x Height control up to 40cm range;  4 x Signal switch;)

                            2 x Side tables

                            4 x lockable smart castors or sideway rollers

                        Connectivity

                        Top dashboard

                            1 x 3-Pin XLR Shock Mount for microphone

                            1 x extra shock mount 3-Pin XLR pin socket for microphone

(or 1 x regular mount 4-Pin XLR socket for the reading light)

                            Integrated computer expansion ports:

                            2 x USB Sockets for external USB devices

                            Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)

                        Side connectivity

                            ILS503 Switcher or 4 x sockets (type on request)

                        Bottom cabling

                            External display connection 1 x HDMI  and/or  1 x HDbaseT

                            Microphone output: XLR cable per microphone

                            1 x 3,5mm Audio

                            1 x AIO PC LAN

                            1 x Switcher Control

                            1 x AC Power

Dimensions
Width	Top: 72cm x 53,5cm Side plate: 29,5cm x 45cm Top + Side plate: 1480cm
Height	User side min: 86cm, max: 125cm Audience side min: 97cm, max: 136cm
Weight	70kg
Integration
Display & PC	Monitor: 24” Dell 2418HT IPS; 10 points capacitive touchscreen PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories	Audio: 1 x Microphone AKG CGN 99
Features	VESA 100x100 mount to hold a monitor up to 27” ILS holder for micro PC installation inside working surface 6 x Buttons (2 x Height control up to 40cm range; 4 x Signal switch;) 2 x Side tables 4 x lockable smart castors or sideway rollers
Connectivity
Top dashboard	1 x 3-Pin XLR Shock Mount for microphone 1 x extra shock mount 3-Pin XLR pin socket for microphone (or 1 x regular mount 4-Pin XLR socket for the reading light) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity	ILS503 Switcher or 4 x sockets (type on request)
Bottom cabling	External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power
