ILS Synergy WW
Improve your presentation delivery. Present with ease and confidence.
Datasheets
- ILS Synergy WW Datasheet (PDF)
Order Form

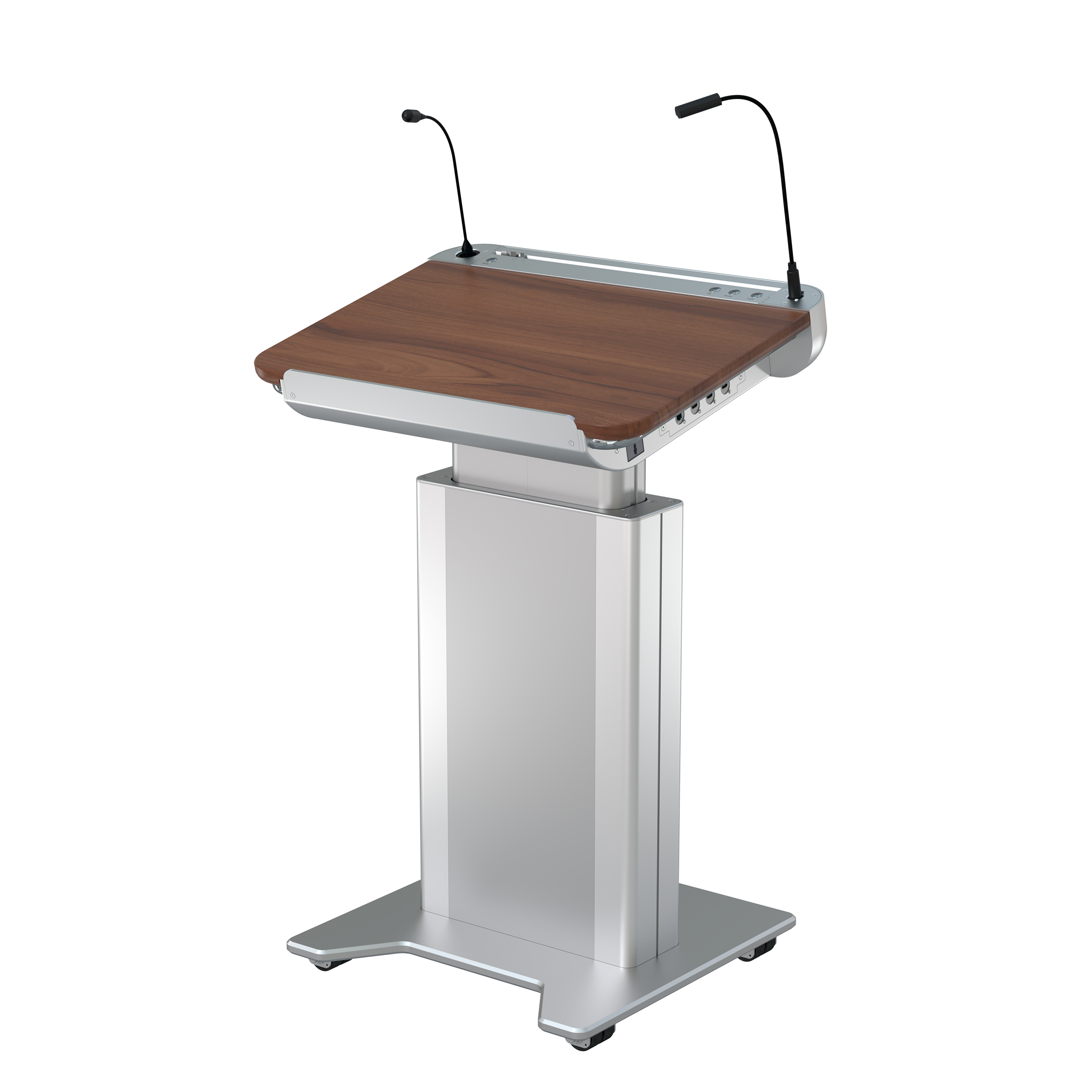

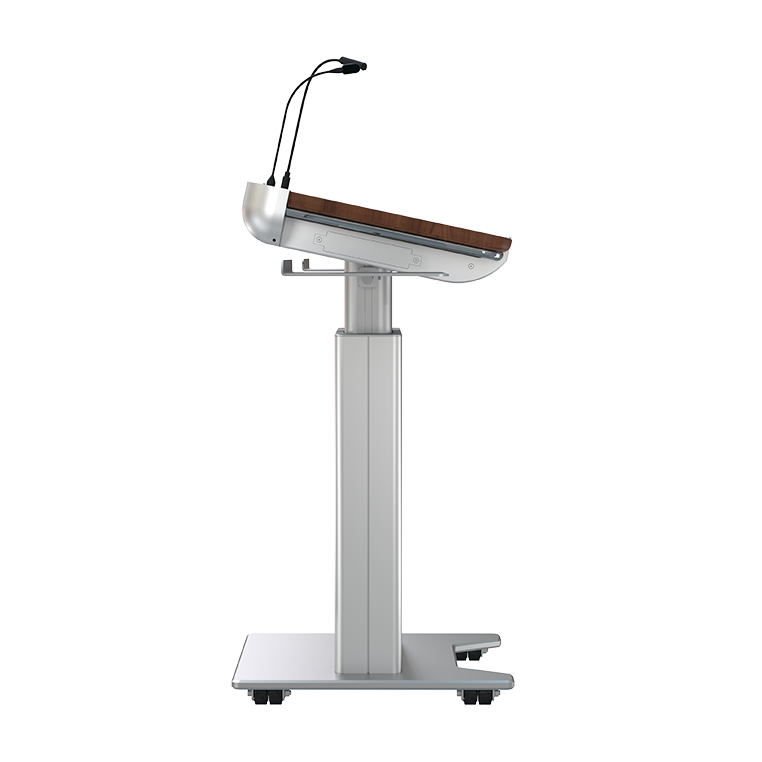

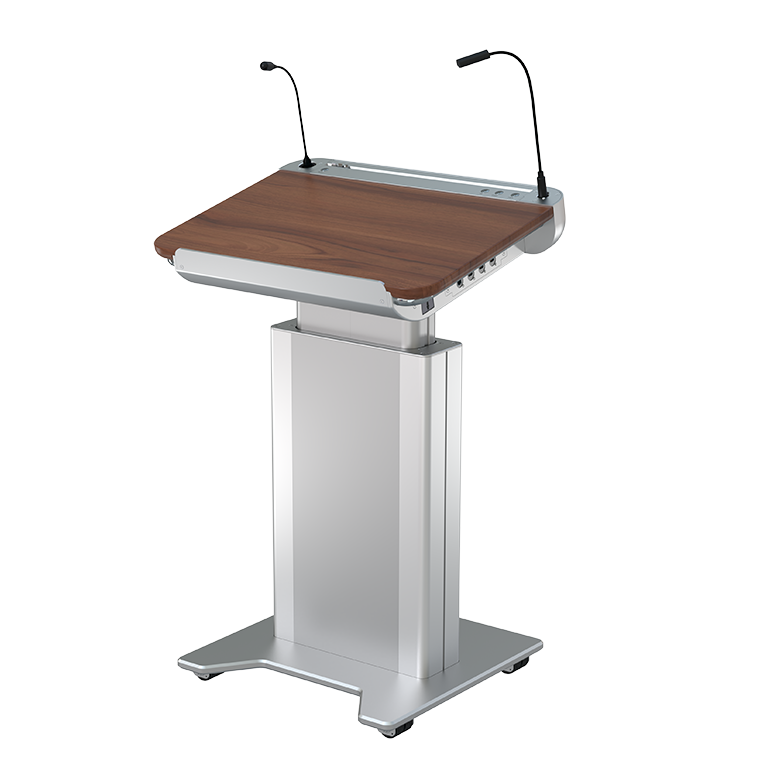

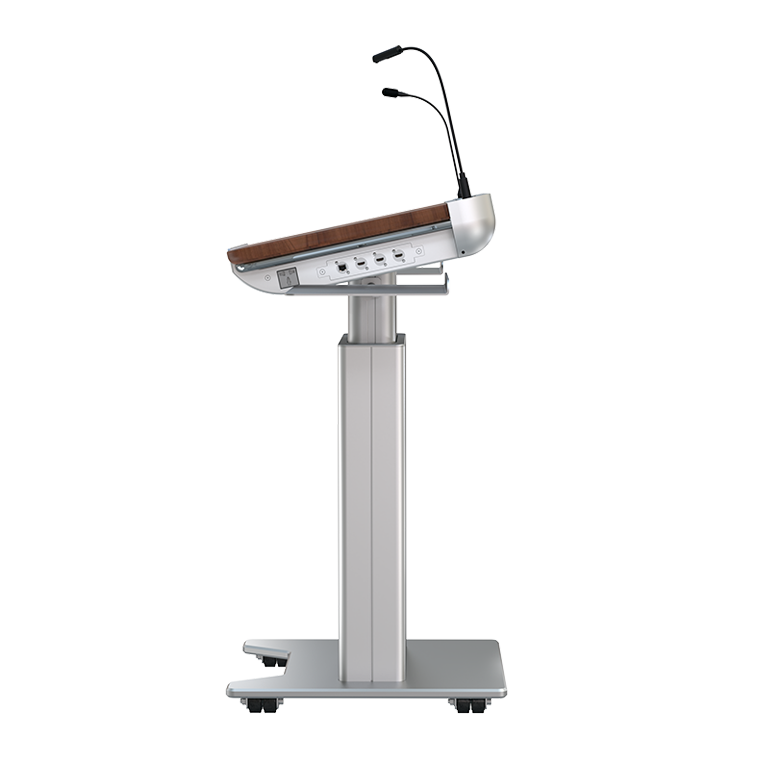

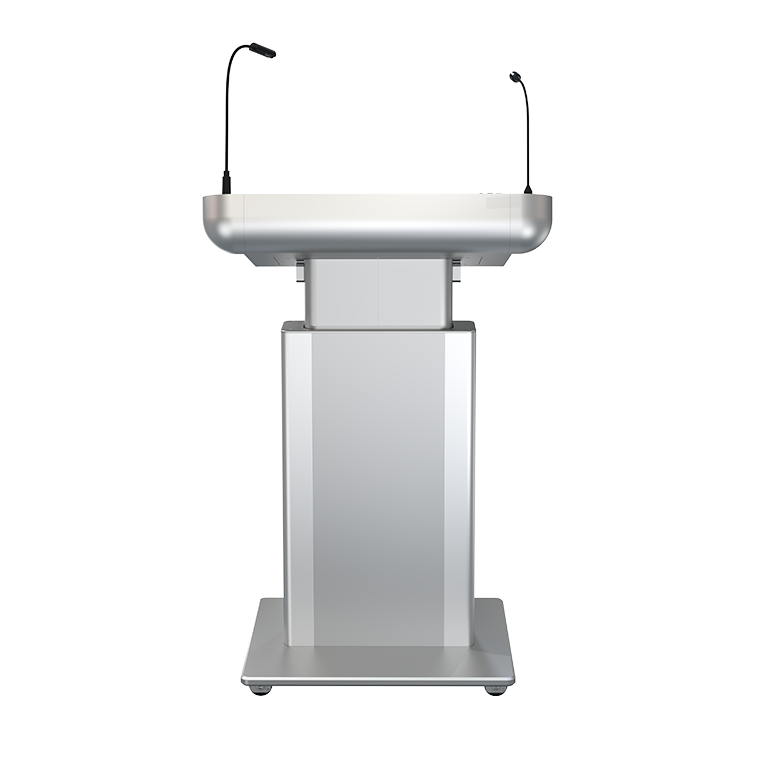

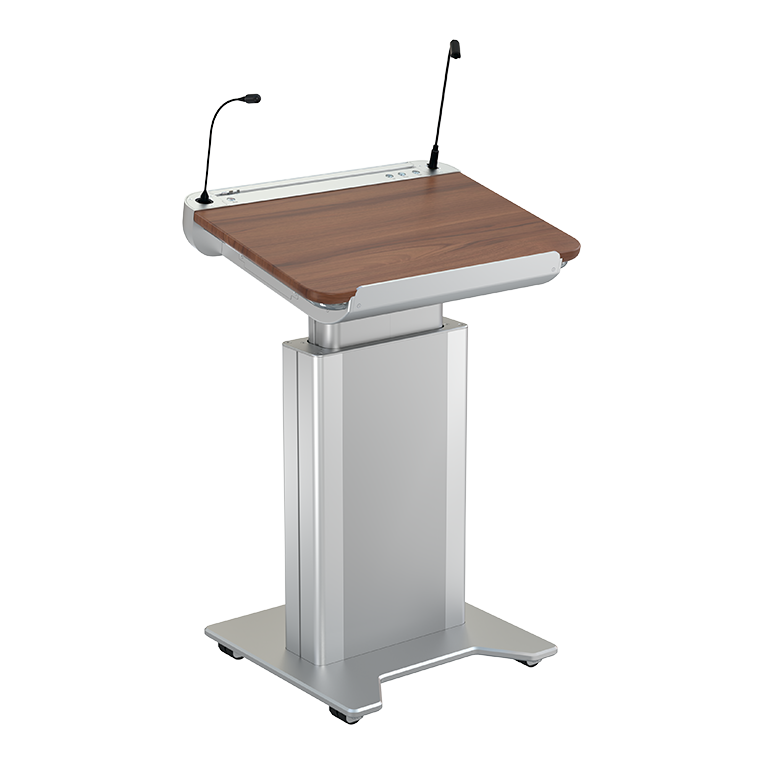

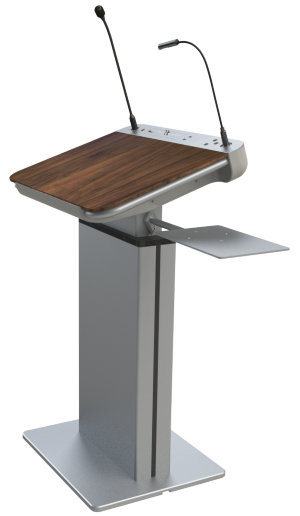

ILS Synergy WW delivers ILS quality with a smart design. The solid top of the lectern is made of handmade thick wood and placed on a motorized wide pillar with a height adjustment range up to 40 cm (15 ”+). Two buttons will help you to control it. In the lowest position, a seated person can freely use the system.

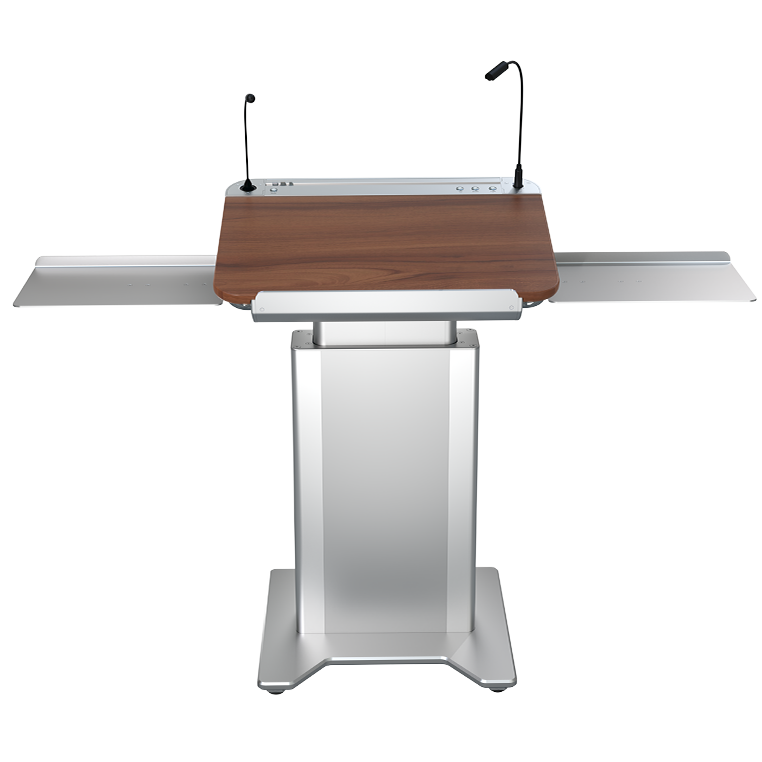

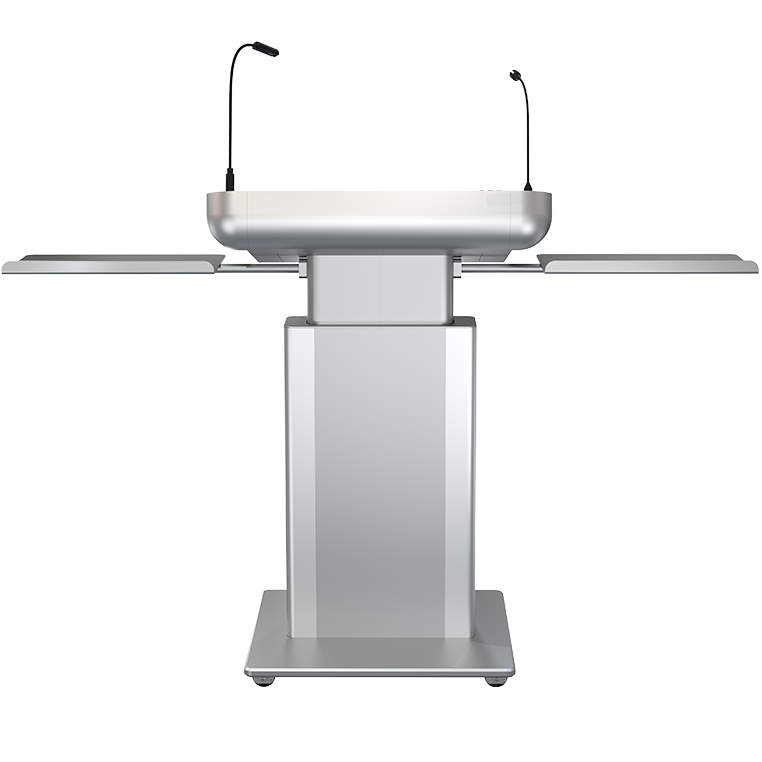

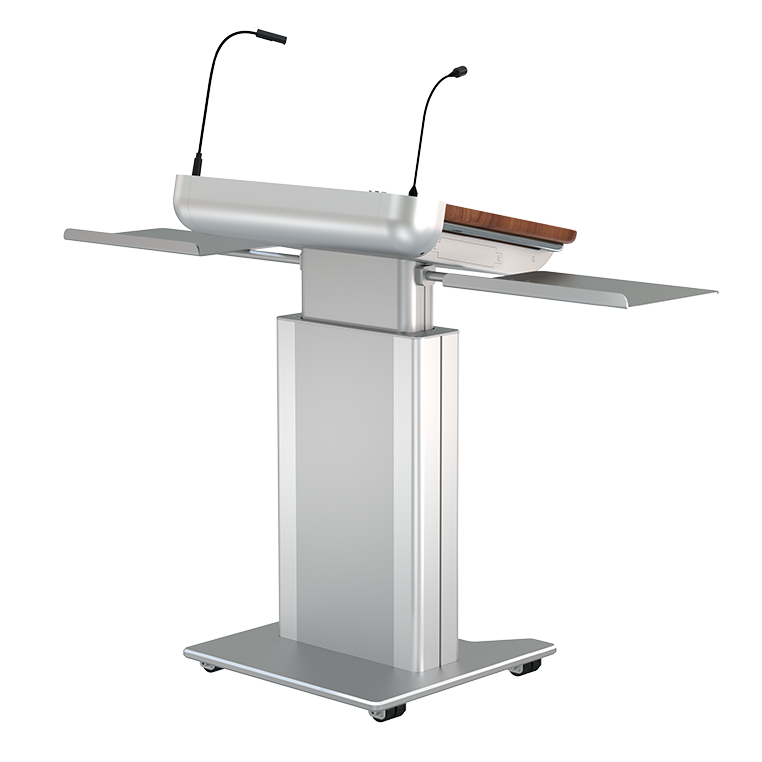

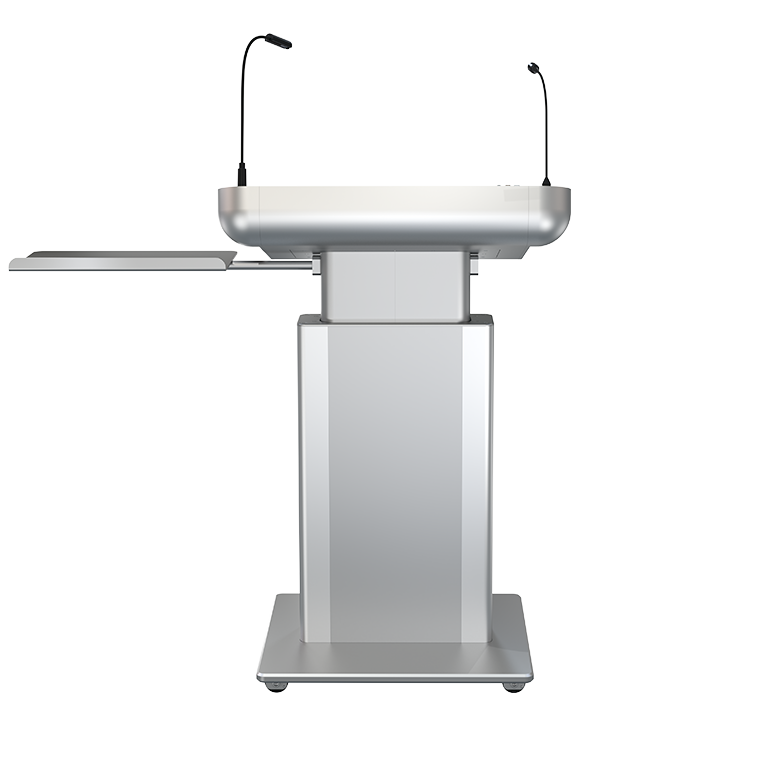

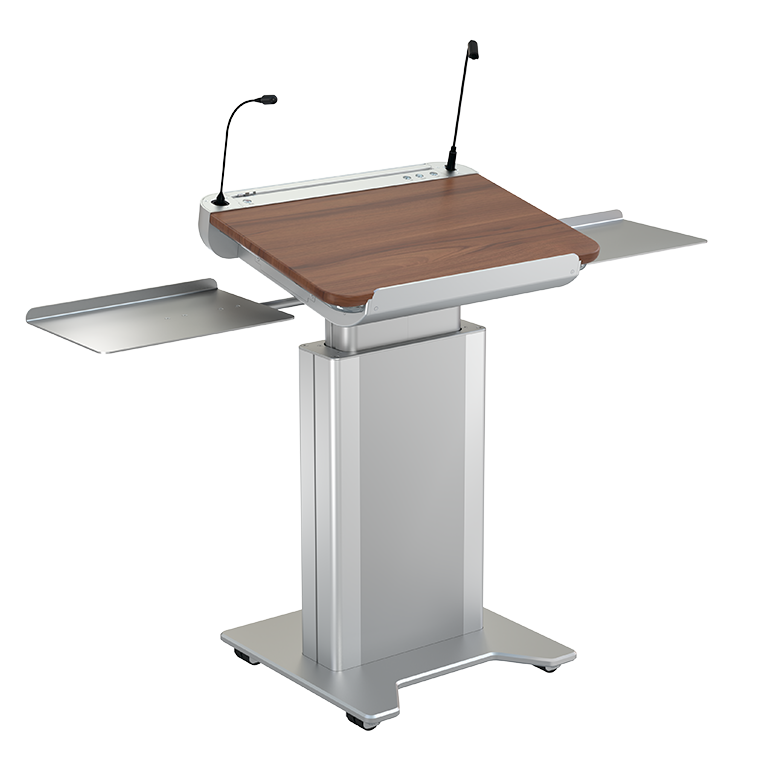

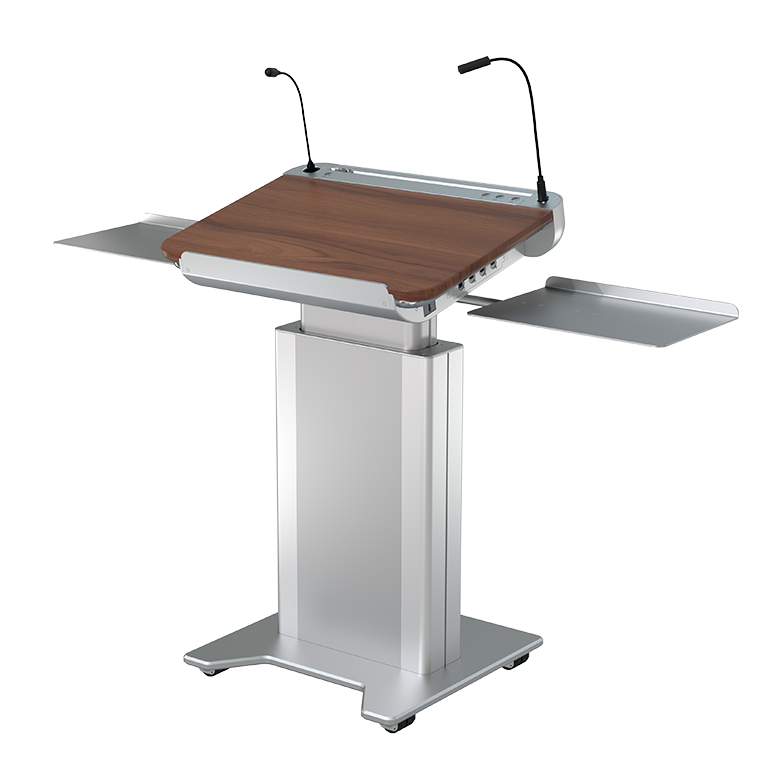

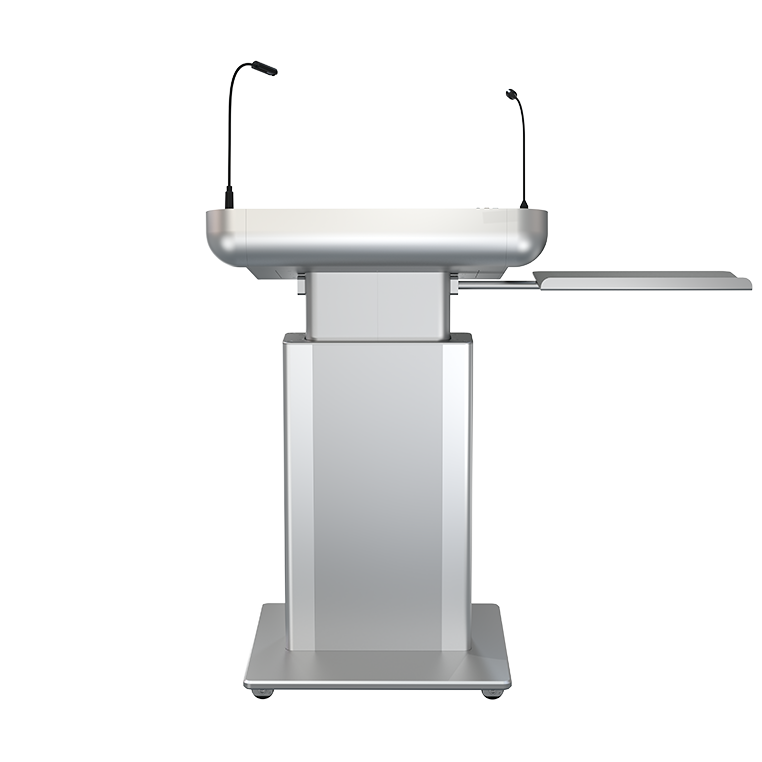

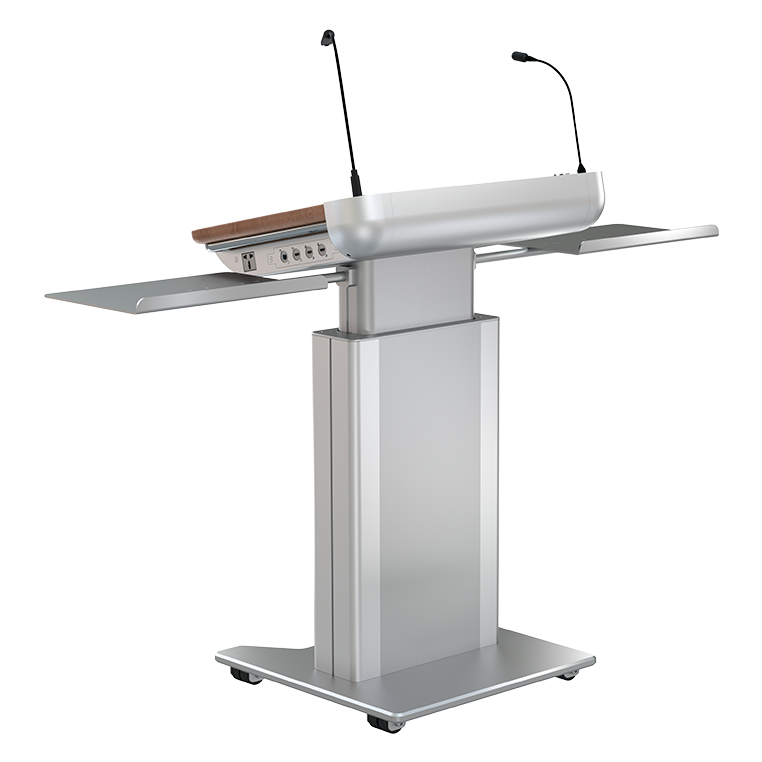

The Synergy WW is an ideal solution for rooms where handwritten notes or laptops are used for presentation. There is also a laptop power socket and a holder with built-in charging cables for tablets and smartphones. To connect other devices, there are four sockets with the type on request. The microphone socket is of the XLR shock-mount type and there is the provision for a reading light, controlled by the button. When needed, horizontal side tables can be integrated moving up / down with the top. This will make it possible to place a document camera on one of them.

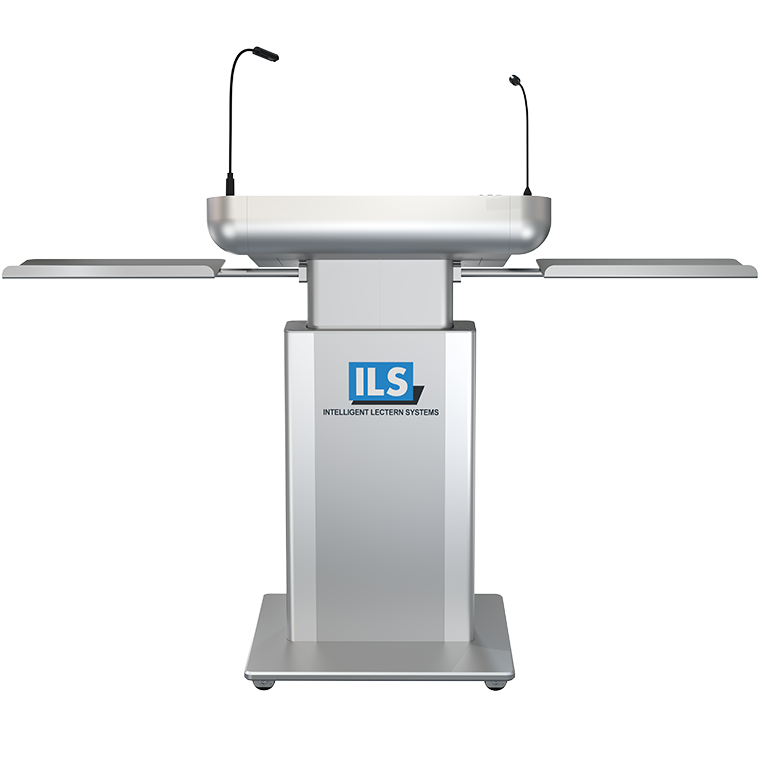

For mobility and rock-solid stability of the lectern during the presentation, 4 side-ways rollers are embedded in the bottom plate. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!
Recommended use:
- conventions
- corporate
- training
- university
Technical specifications:
| Dimensions | |
| Width | Top: 72cm x 53,5cm |
| Height | User side min: 87cm, max: 127cm Audience side min: 98cm, max: 138cm |
| Weight | 70kg |
| Integration | |
| Accessories | Audio: 1 x Microphone AKG CGN 99 Light: 1 x LITTLITE LED XLR-4 Lamp |
| Features | Luxury handmade thick wood plate for laptop and documents 3 x Buttons (2 x Height control up to 40cm range; 1 x Light;) 4 x Lockable smart castors or sideway rollers |
| Connectivity | |
| Top dashboard |
1 x 3-Pin XLR Shock Mount for microphone 1 x regular mount 4-Pin XLR socket for the reading light (or 1 x extra shock mount 3-Pin XLR pin socket for microphone) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;) |
| Side connectivity |
4 x Sockets (type on request) - Laptop connectivity 1 x AC Power socket |
| Bottom cabling |
External display connection 1 x HDMI Microphone output: XLR cable per microphone 1 x AIO PC LAN 1 x AC Power |
