Intelligent Lectern Systems - Synergy SC Lectern

ILS Synergy SC

Improve your presentation delivery. Present with ease and confidence.

                Datasheets
                ILS Synergy SC Datasheet (PDF)
ILS Synergy SC-H Datasheet (PDF)

                Order Form
                ILS SYNERGY C-Cabinet order form (PDF)

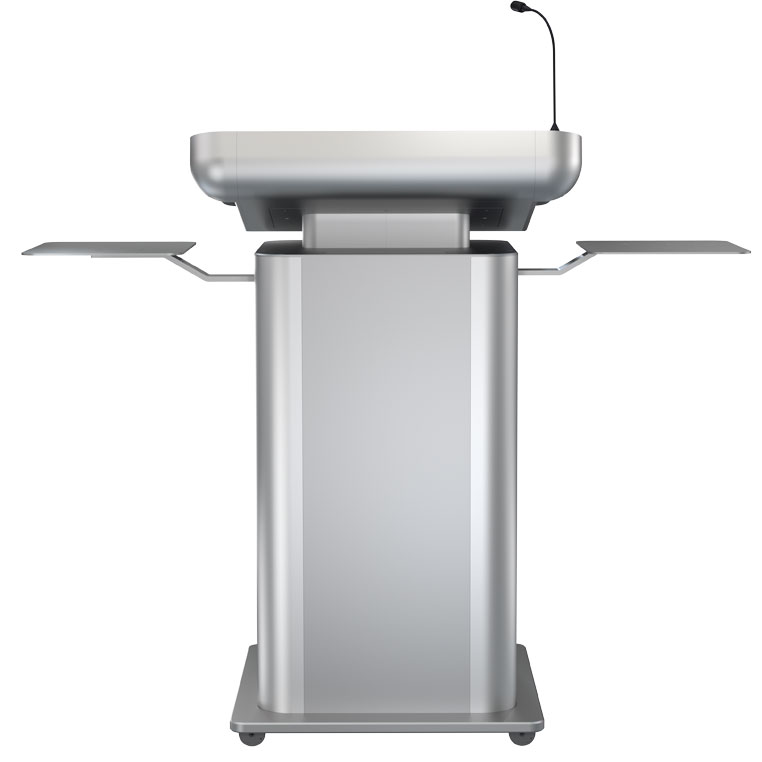

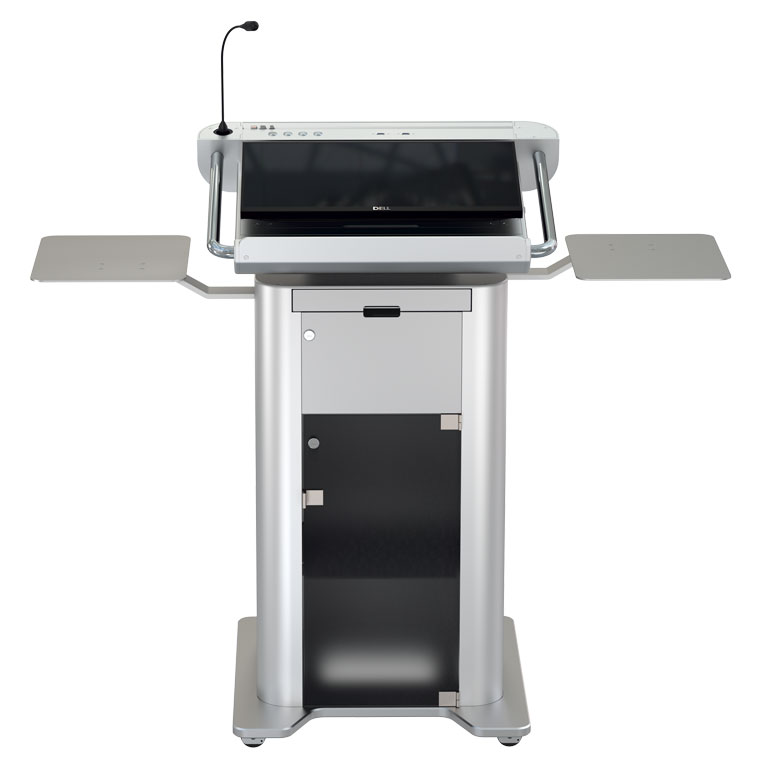

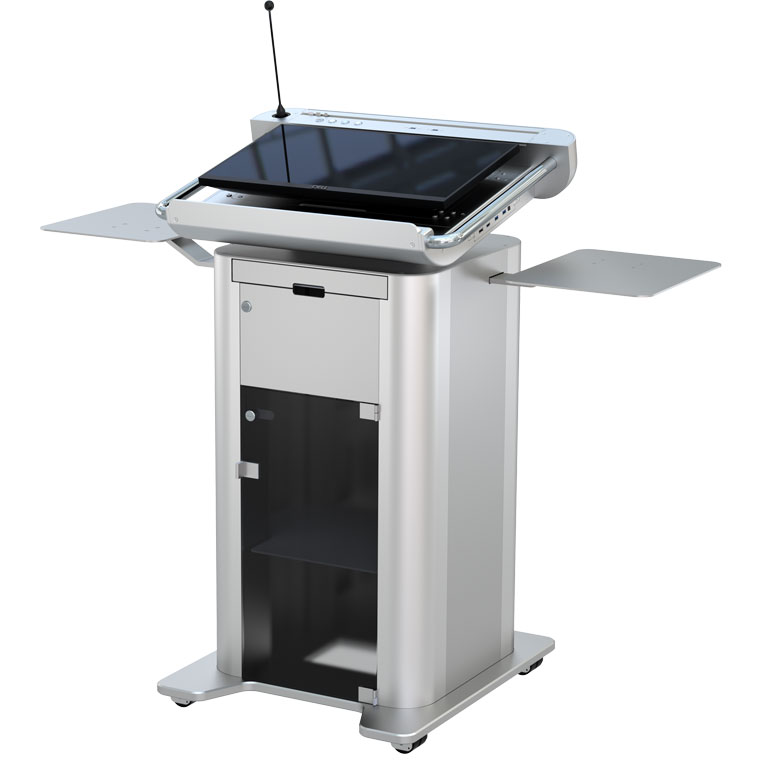

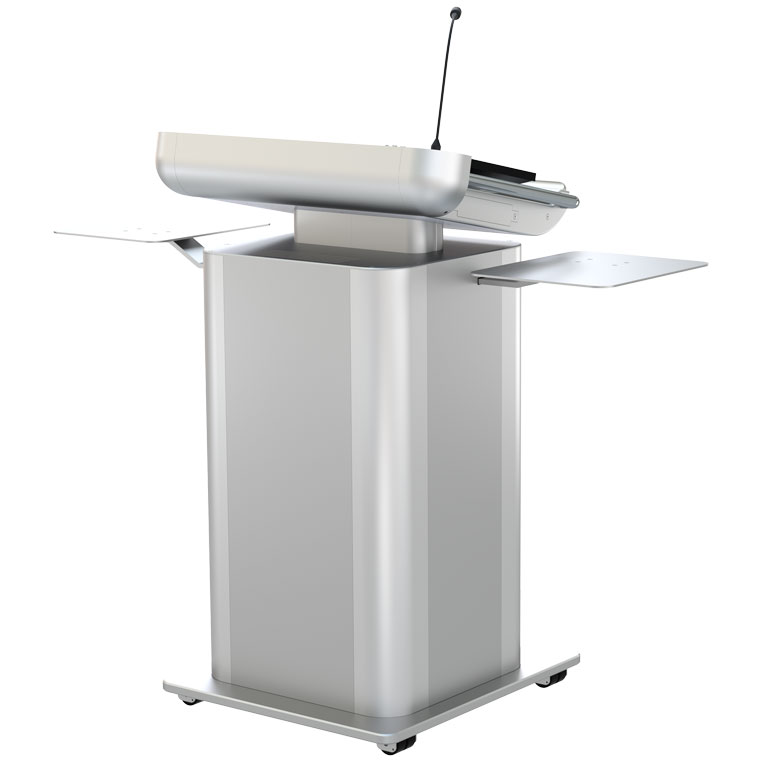

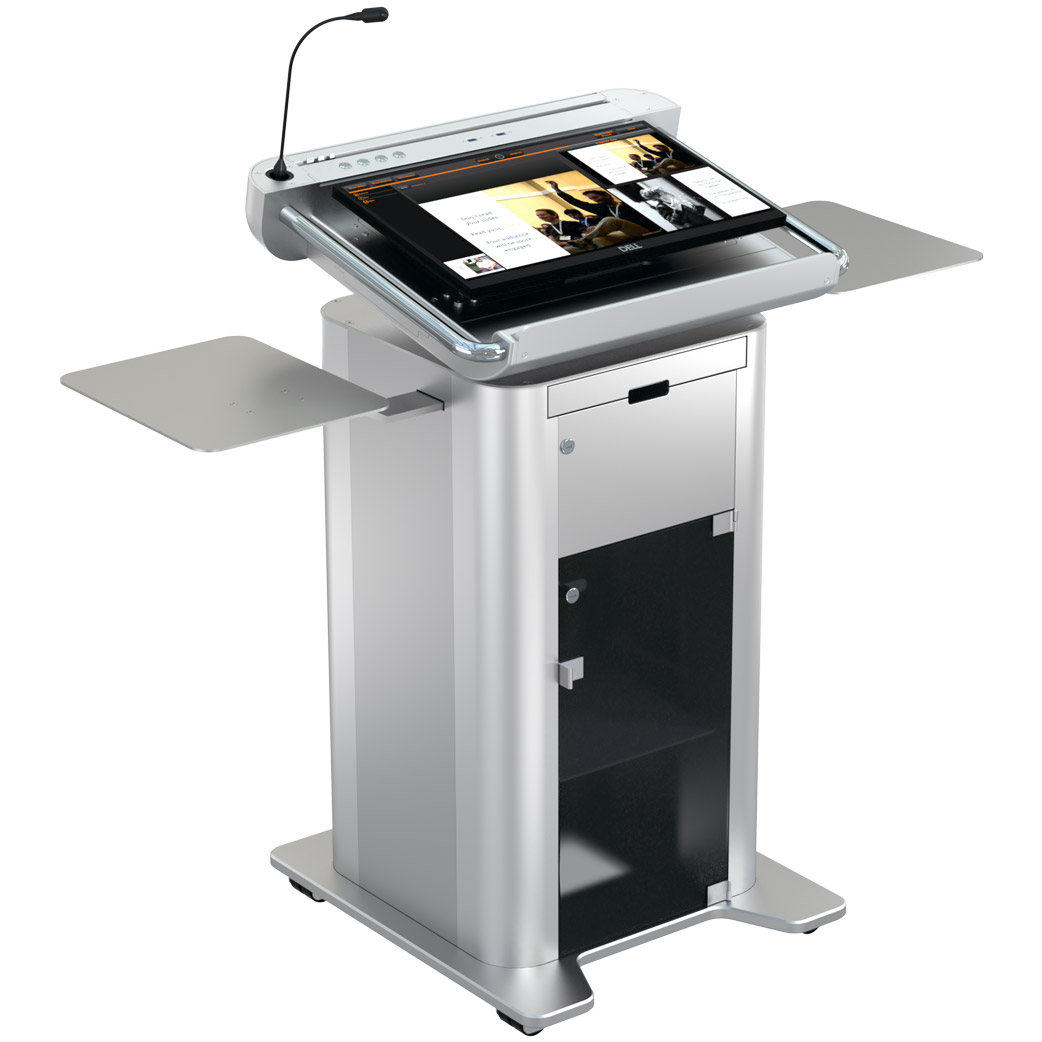

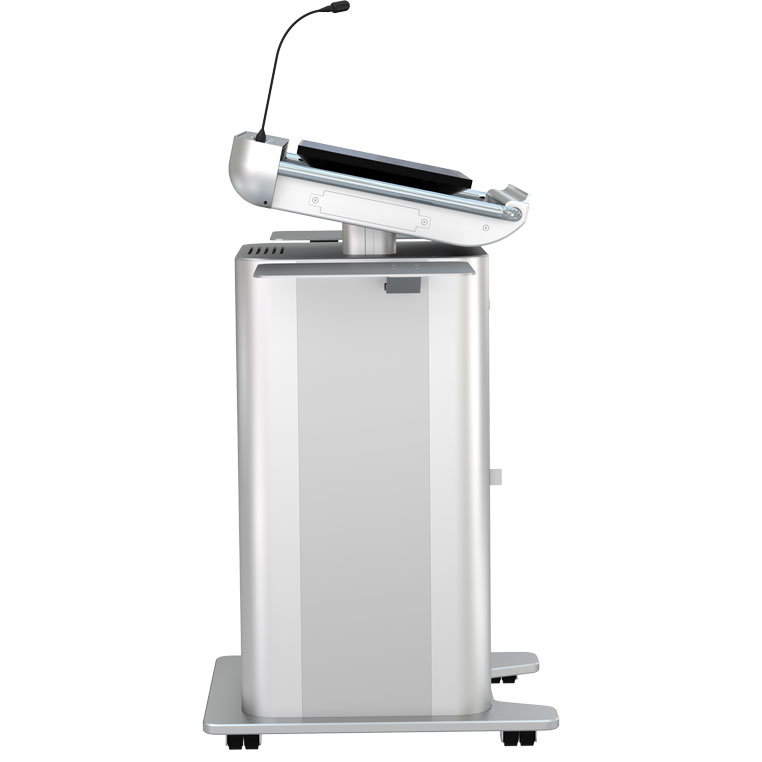

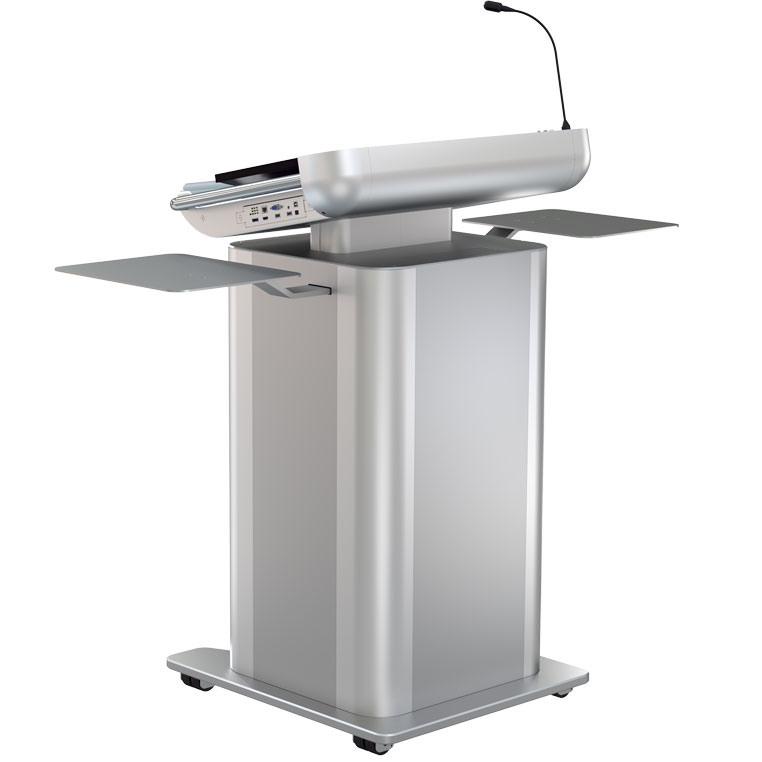

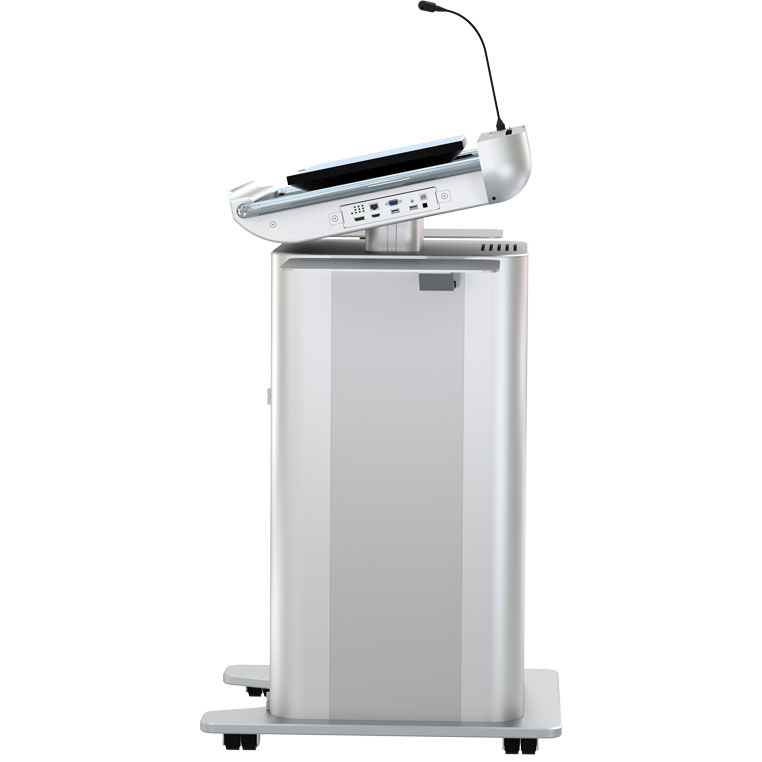

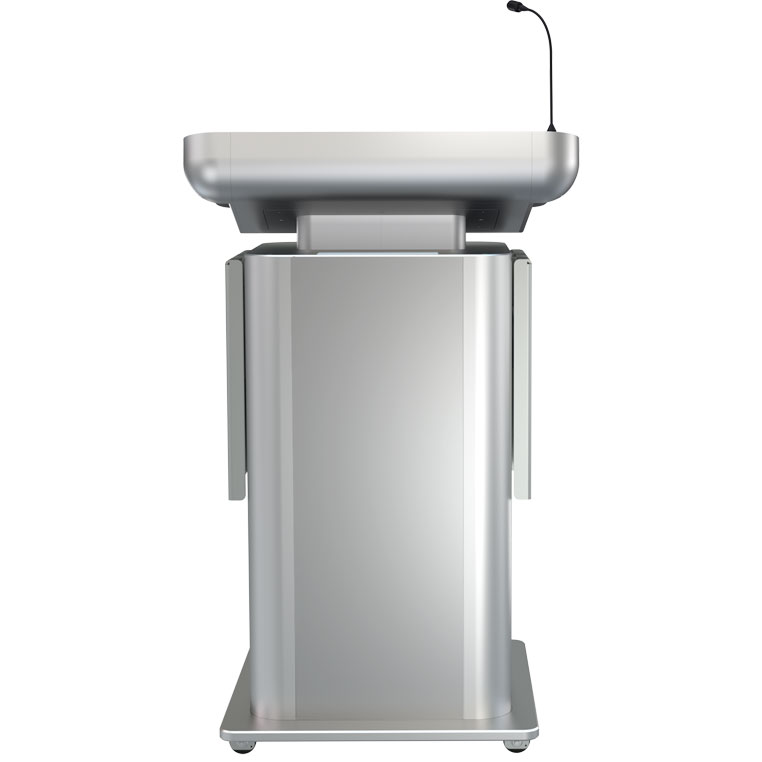

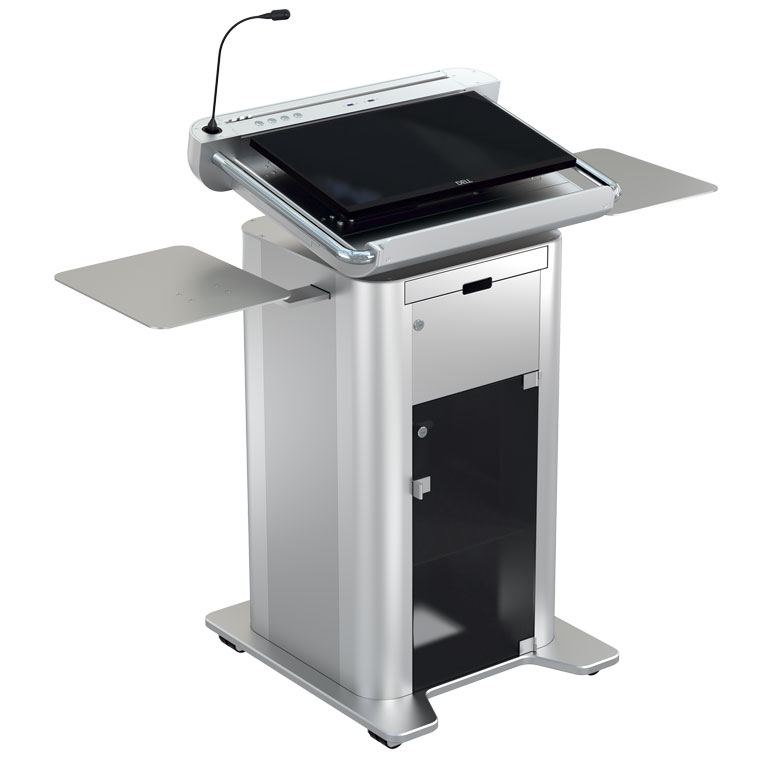

ILS Synergy SC delivers ILS quality with a smart design. The solid top of the lectern is
                    placed on a compact, narrow cabinet (Half Rack Cabinet).

The Synergy SC is the ideal smart solution for PC presentation. The integrated VESA mount
                    allows the installation of a monitor up to 27”. The micro PC is compactly located inside
                    the cabinet. This lectern also provides two fixed horizontal side tables (can be upgraded
                    to the flip or sliding tables). This makes it possible to use extra space for handwritten notes,
                    laptop, or place a document camera on it.

                    The built-in switcher or four sockets with the type
                    on request will be great helpers when handling connections between the main screen of the lectern
                    and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product.
                    There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones.
                    The microphone socket is of the XLR shock-mount type. The cabinet has a keyboard drawer and
                    two lockable compartments.

                    For mobility and rock-solid stability of the lectern during the presentation, four side-ways
                    rollers are embedded in the bottom plate. In addition, we will be pleased to engrave your
                    logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:conventions
corporate
training
university

Technical specifications:

                        Dimensions

                        Width
                        Top: 72cm x 53,5cm

                            Side Plate: 30cm x 37cm

                            Top + Side Plate: 136,5cm

                            Cabinet:

                            External: width: 48,5cm height: 85cm depth: 47cm

                            Internal: width: 30,5cm height: 61,5cm depth: 46cm

                            Tilt adjustment: 12° - 20°

                        Height
                        User side: 101cm

                            Audience side: 114cm

                        Weight
                        80kg

                            Integration

                        Display & PC
                        Monitor: 24” Dell 2418HT IPS, 10 points capacitive touchscreen

                            PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;

                        Accessories
                        Audio: 1 x Microphone: AKG CGN 99

                        Features
                        VESA 100x100 mount  to hold a monitor up to 27”

                            PC installation inside cabinet

                            Half Rack Cabinet

                            4 x Signal switch buttons

                            2 x Side tables

                            1 x Keyboard drawer

                            2 x Lockable compartments (1 x Metal door; 1 x Glass door for the compartment with 2 shelves;)

                            4 x Lockable smart castors or sideway rollers

                        Connectivity

                        Top dashboard

                            1 x 3-Pin XLR Shock Mount for microphone

                            1 x regular mount 4-Pin XLR socket for the reading light

(or 1 x extra shock mount 3-Pin XLR pin socket for microphone)

                            Integrated computer expansion ports:

                            2 x USB Sockets for external USB devices

                            Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)

                        Side connectivity

                            ILS503 Switcher or 4 x Sockets (type on request) - Laptop connectivity

                        Bottom cabling

                            External display connection 1 x HDMI  and/or  1 x HDbaseT

                            Microphone output: XLR cable per microphone

                            1 x 3,5mm Audio

                            1 x AIO PC LAN

                            1 x Switcher Control

                            1 x AC Power

Dimensions
Width	Top: 72cm x 53,5cm Side Plate: 30cm x 37cm Top + Side Plate: 136,5cm Cabinet: External: width: 48,5cm height: 85cm depth: 47cm Internal: width: 30,5cm height: 61,5cm depth: 46cm Tilt adjustment: 12° - 20°
Height	User side: 101cm Audience side: 114cm
Weight	80kg
Integration
Display & PC	Monitor: 24” Dell 2418HT IPS, 10 points capacitive touchscreen PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories	Audio: 1 x Microphone: AKG CGN 99
Features	VESA 100x100 mount to hold a monitor up to 27” PC installation inside cabinet Half Rack Cabinet 4 x Signal switch buttons 2 x Side tables 1 x Keyboard drawer 2 x Lockable compartments (1 x Metal door; 1 x Glass door for the compartment with 2 shelves;) 4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard	1 x 3-Pin XLR Shock Mount for microphone 1 x regular mount 4-Pin XLR socket for the reading light (or 1 x extra shock mount 3-Pin XLR pin socket for microphone) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity	ILS503 Switcher or 4 x Sockets (type on request) - Laptop connectivity
Bottom cabling	External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power
